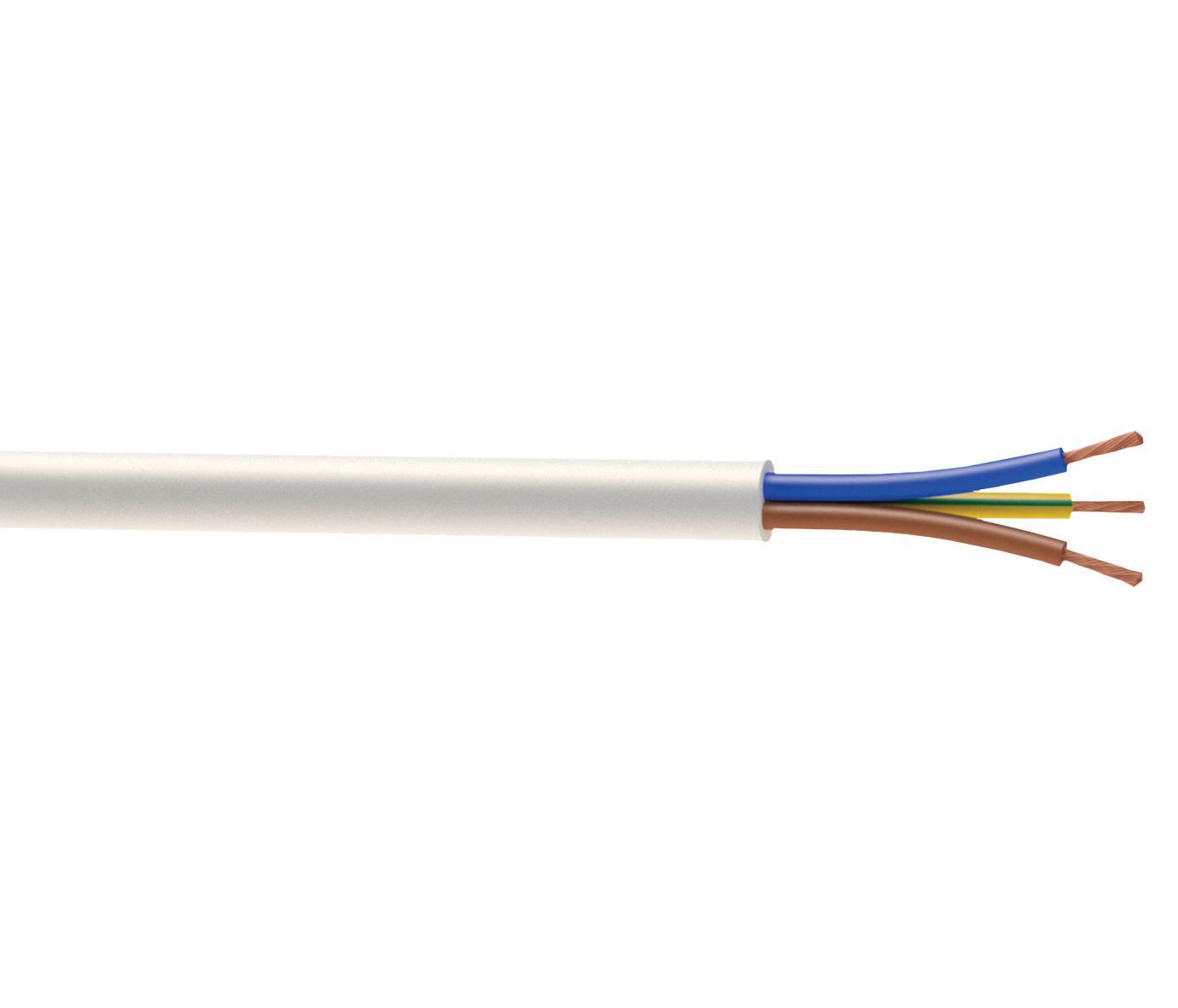

3093Y White 3 core Heat-resistant flex, 1.5mm² x 25m
Product details
Product information
This is a 25m 3 core flexible PVC cable rated at 16A 240V. It has a copper conductor with a cross-sectional area of 1.5mm2. The cable is CE and UKCA certified and fire rated, suitable for high temperature applications up to 90°C. The cable has 3 cores plus an additional core for the circuit protective conductor. It is unshielded and comes in a coil, with a PVC outer sheath in white. The cable can be cut to length as needed. This high quality, robust yet flexible cable provides a reliable power connection and is guaranteed for 1 year.
Features and benefits
- Heat resistant cable for high temperature areas
- Flexible
- BS EN 50525-2-11
Specifications
| Brand | Time |
|---|---|
| Pack quantity | 1 |
| Cable length | 25m |
| Colour | White |
| Number of pieces | 1 |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -15°C |
| Flexible | Flexible |
| Shield material | Unshielded |
| Sheath properties | Standard |
| Cable code | 3093Y |
| Number of cores | 3 |
| Outer sheath material | PVC |
| Conductor area | 1.5mm² |
| Amp rating | 16A |
| Number of wire strands | 27 |
| Product code | 5055268786970 |
Safety Information
Manufacturer / EU responsible person
Reviews
4.5 / 5(4 reviews)mr m - 5 / 5 - 06/01/2025
ideal
a good length for making extension leads and far better than measuring your own length off a reel
OccassionDIY - 4 / 5 - 27/11/2023
It does its job
Bought this to install few ceiling lights. It does its job as expected.
Denizen of Zarg - 5 / 5 - 13/09/2017
Too long!
This is, according to its own label, the cable able to handle immersion heaters. Many connections in airing cupboards &c. require less than 1 metre. What do we do with the other 4+ metres? (NB: 1 metre length not available, as far as I know)./
- 4 / 5 - 21/01/2017
Check the labelling carefully
I didn't intend to buy HR cable, just flexible. Unlike the more costly butyl, this is not particularly flexible. In summary, if it is maximum flexibility you need, then stick to butyl but if flexibility is not important, this HR cable will perform excellently.
