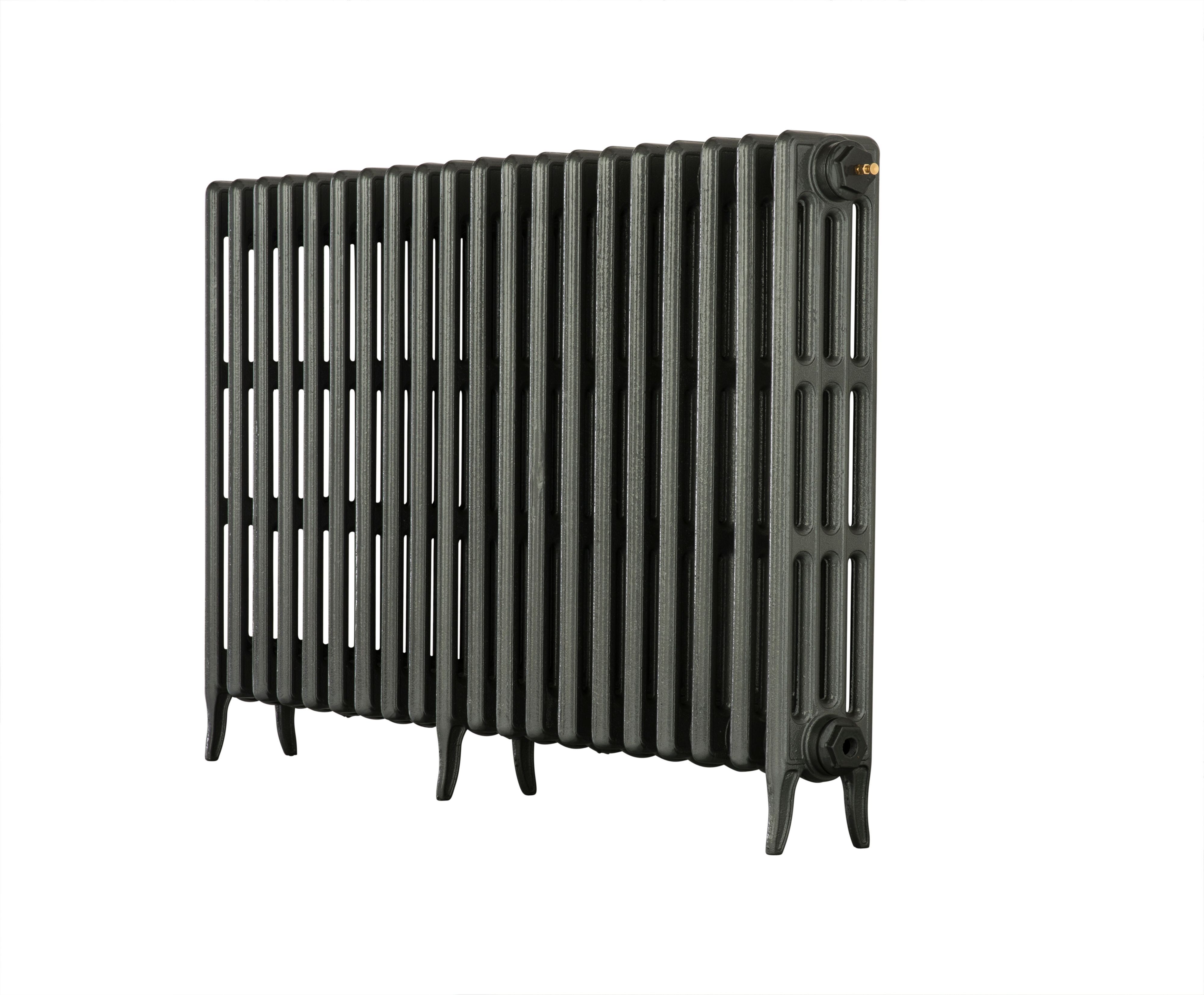

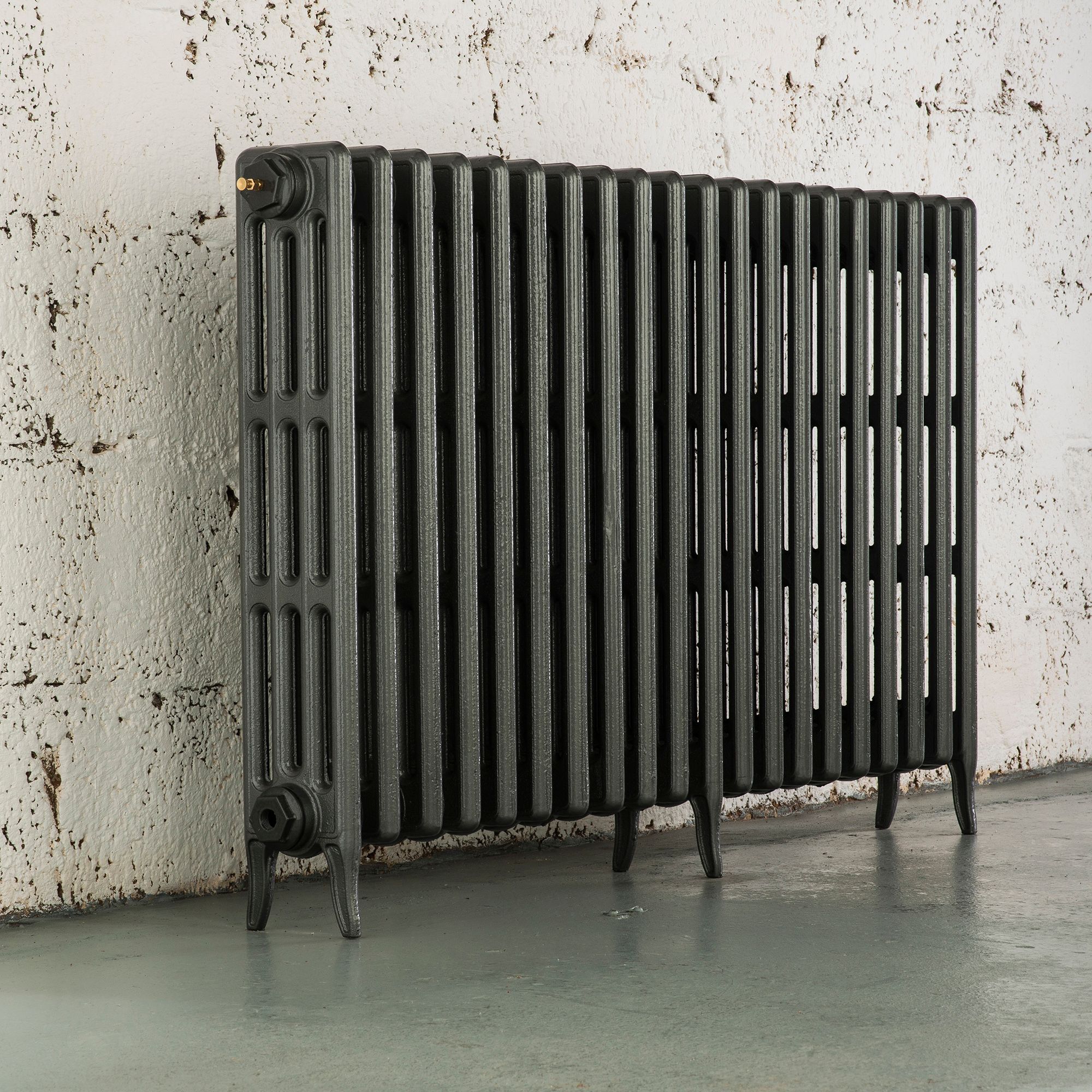

Arroll Neo-Classic Cast grey 4 Column Radiator, (W)1114mm x (H)760mm
Product details
Product information
Product information
The Arroll Neo Classic is a simple and stylish cast iron column radiator, highly efficient in terms of heat output and convection. The Arroll Neo Classic is sure to work perfectly in both period and modern interior schemes. Available in a variety of designs and finishes.
- The Arroll Neo Classic is a simple and stylish cast iron column radiator, highly efficient in terms of heat output and convection. The Arroll Neo Classic is sure to work perfectly in both period and modern interior schemes.
- Guarantee - 10 years
- Supplied with standard bleed valve, wall stays, air vent and touch up paint.
- Guarantee - 10 years
Features and benefits
- Tested to EN442
- 3D moulding technology
- Suitable for central heating systems
- CE certified
- Suitable for central heating systems
Specifications
| Brand | Arroll |
|---|---|
| BTU | 5582BTU |
| Colour | Cast grey |
| Depth (cm) | 14cm |
| Heat output | 1636W |
| Height (cm) | 76cm |
| Material | Cast iron |
| Maximum operating pressure | 8bar |
| Maximum operating temperature | 120°C |
| Model name/number | RD760 |
| Number of columns | 4 |
| Orientation | Horizontal |
| Radiator type | Column |
| Standard | EN442 |
| Wall to centre (with standard bracket) | 70mm |
| Weight (g) | 100800g |
| Width (cm) | 111.4cm |
| Product code | 5060401420093 |
Safety Information
Cast iron radiators are VERY HEAVY so please ensure you have sufficient help to unload your order when it is delivered to you
t is important that the full length of the radiator is supported and the product is carried upright at all times.
Cast iron radiators are for use on closed heating systems only, they are not suitable for installation on secondary HWS circuits
System design, flushing and dosing must be in accordance with BS 5449, 1990, BS EN 12828:2003 and BS 7593:2028
We strongly discourage the use of a water softener on the heating system as this treatment can cause the gaskets to deteriorate
