BG 13A Grey Outdoor Weatherproof fused connection unit with RCD
Right chevron

BG 13A Grey Outdoor Weatherproof fused connection unit with RCD

Checking availability...

Product details

Product information

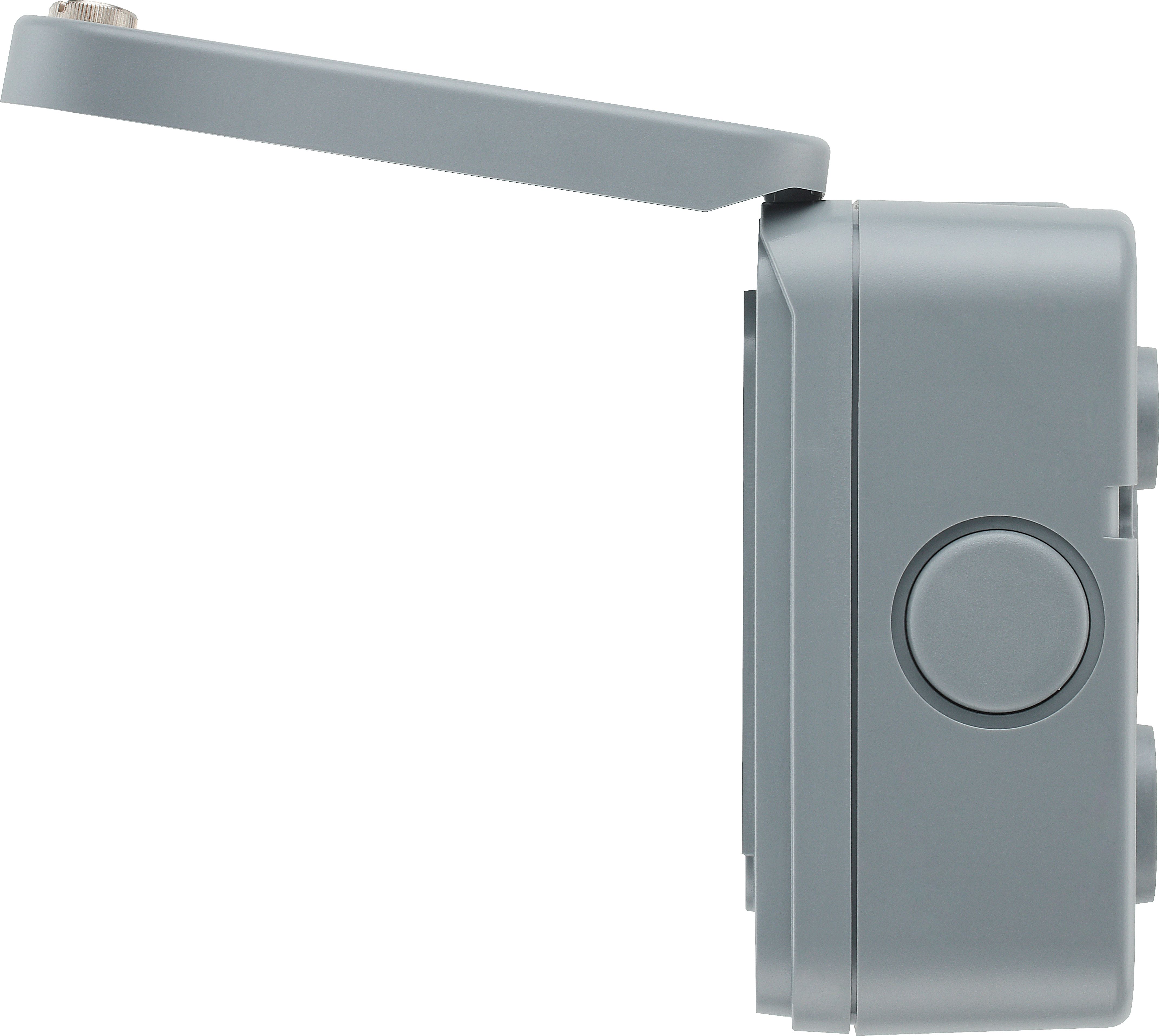

    This IP66 This RCD fused connection unit from British General is supplied in a weatherproof mounting box and ideal for outdoor use. This unit will continuously monitor the supply to any electrical appliance hardwired to it, and cuts the power if an earth current fault is detected, protecting against the risk of a fatal electric shock. The clear flexible cover allows you to view the power status and operate switches without opening the unit.

      Features and benefits

      • Cased in an IP66 weatherproof box with flexible see-through cover so the RCD status can be seen and operated without opening the unit.

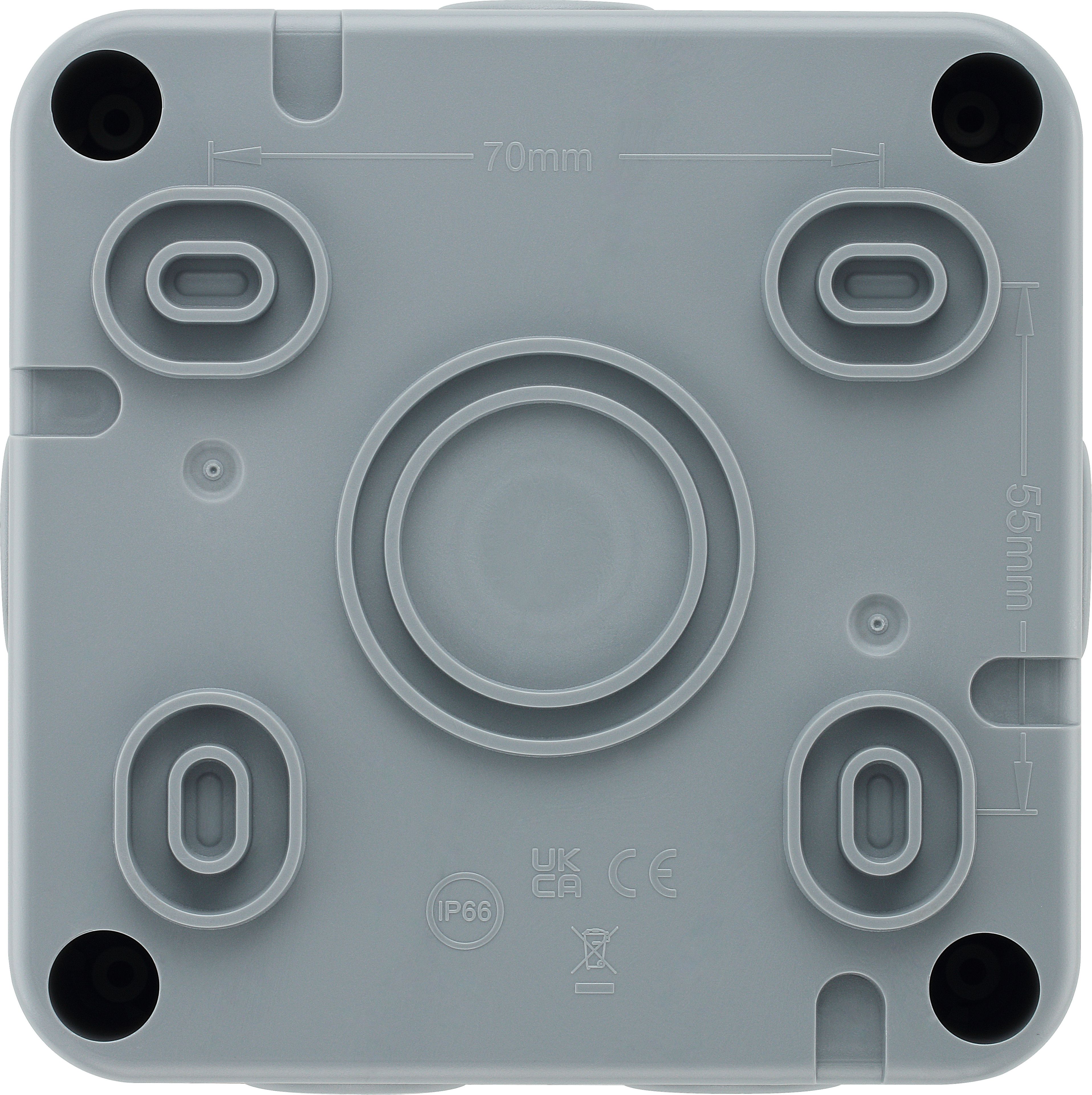

      • Supplied with multiple knock-out mounting box, with multiple gland entry positions
      • Latched (passive) version, if set, will retain closed contacts if the mains supply is interrupted
      • No need to reset after a loss of power
      • 30mA trip current & 40ms trip circuit operation


      Model name/numberWP55RCD
      Pack quantity1
      Knockout size20mm
      IP ratingIP66
      Knockout positionTop, bottom & side knockouts
      Number of knockouts5
      Power voltage supply250V
      Number of earth terminals2
      Number of gangs1
      Number of poles1
      Amp rating13A
      Product code5050765022347
