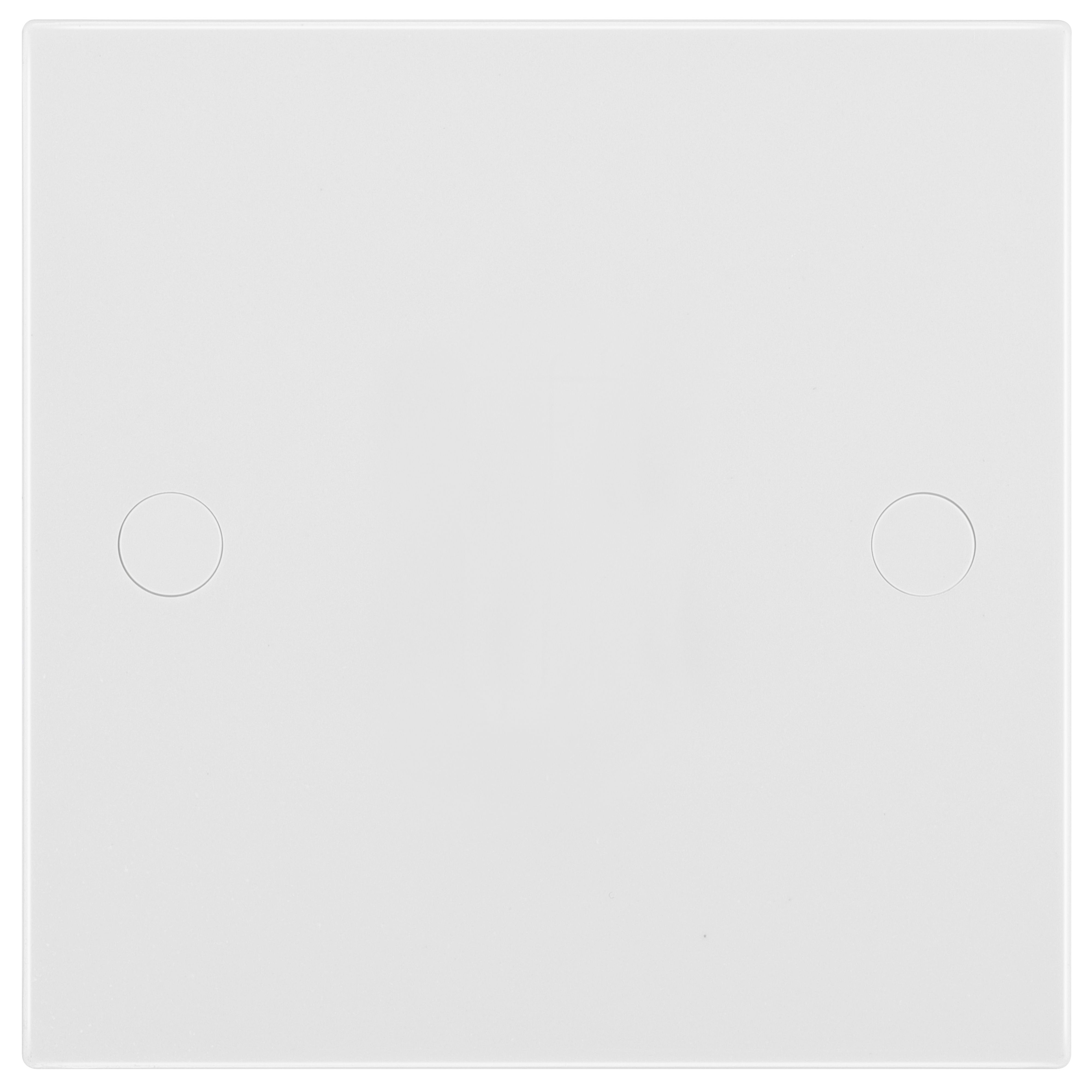

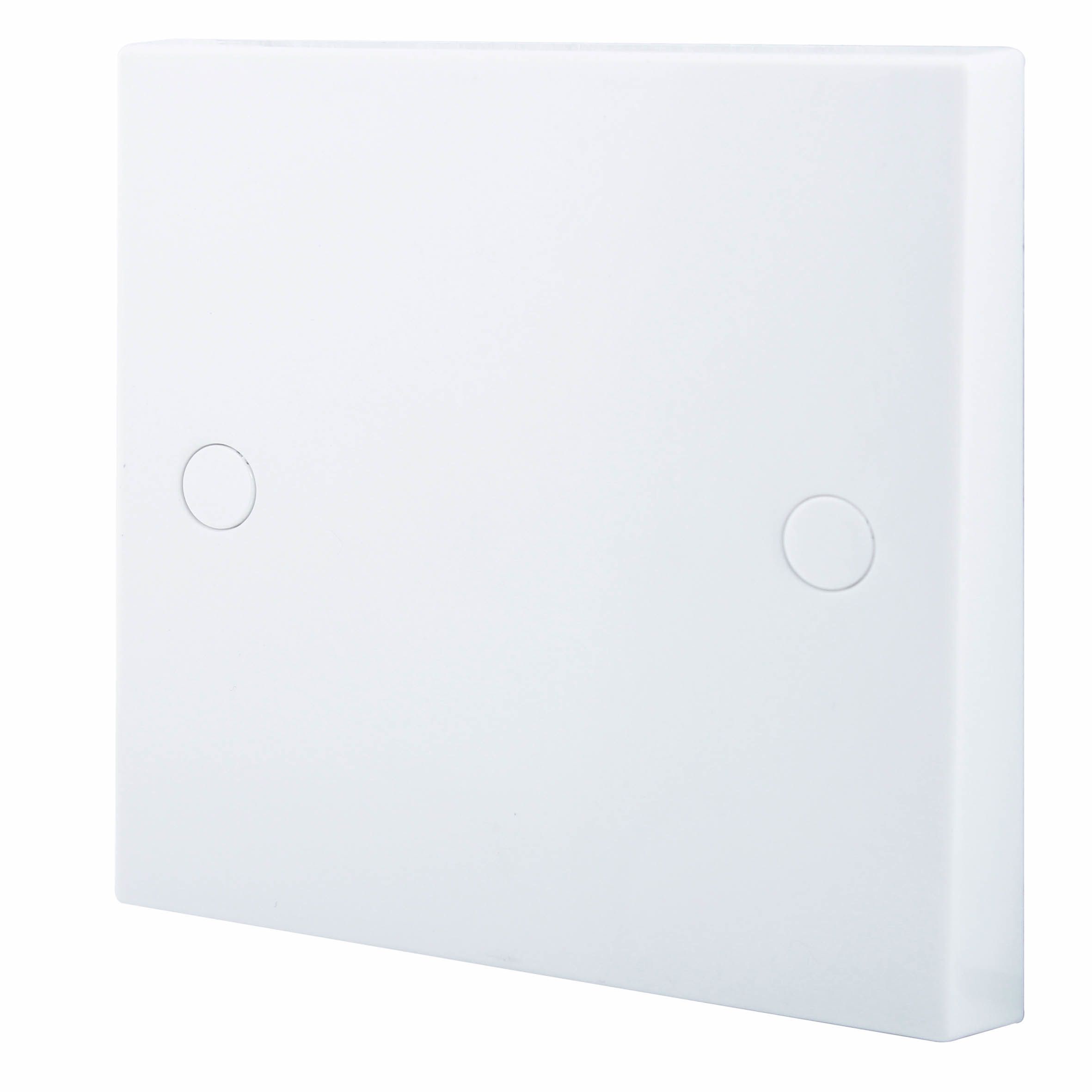

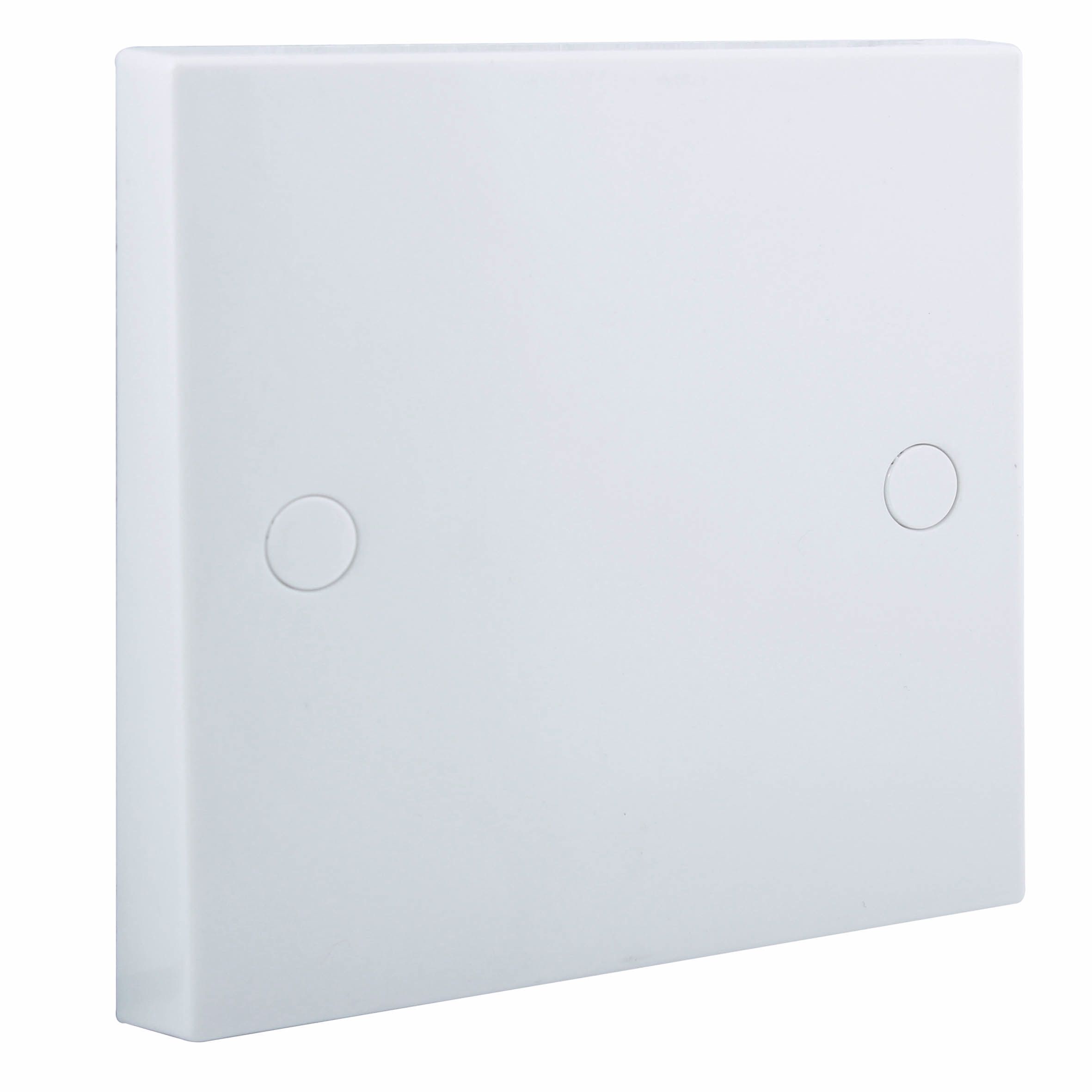

BG 20A White 1 gang Gloss Plastic Flex Outlet
£
Inc.VAT2.90
Checking availability...
Product details
Product information
This British General raised flex outlet is rated to 20A.
- Guarantee - 25 years
- CE marked
- UKCA marked
Features and benefits

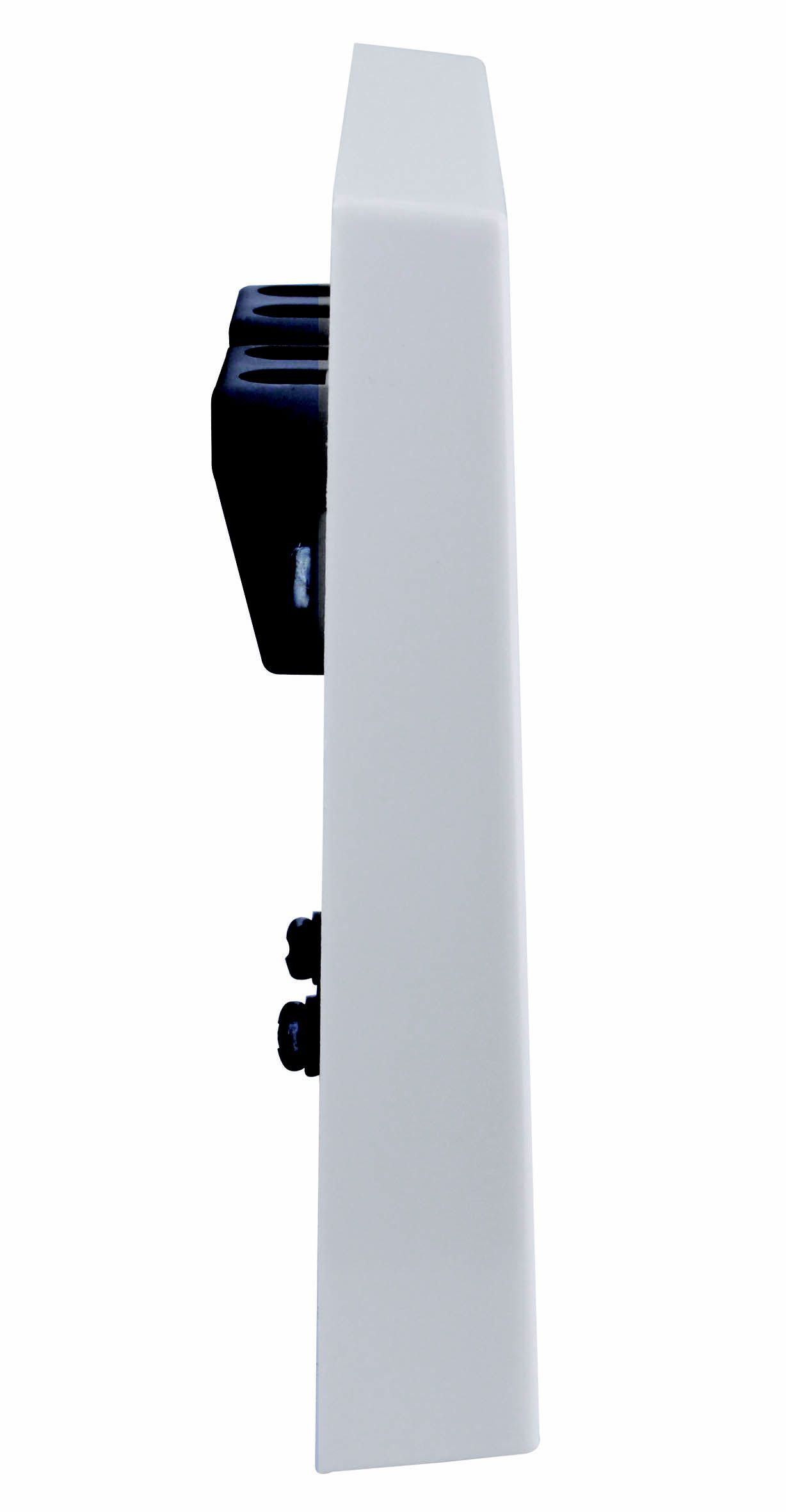

- Raised square profile
- Screwed faceplate
- Requires a 25mm back box

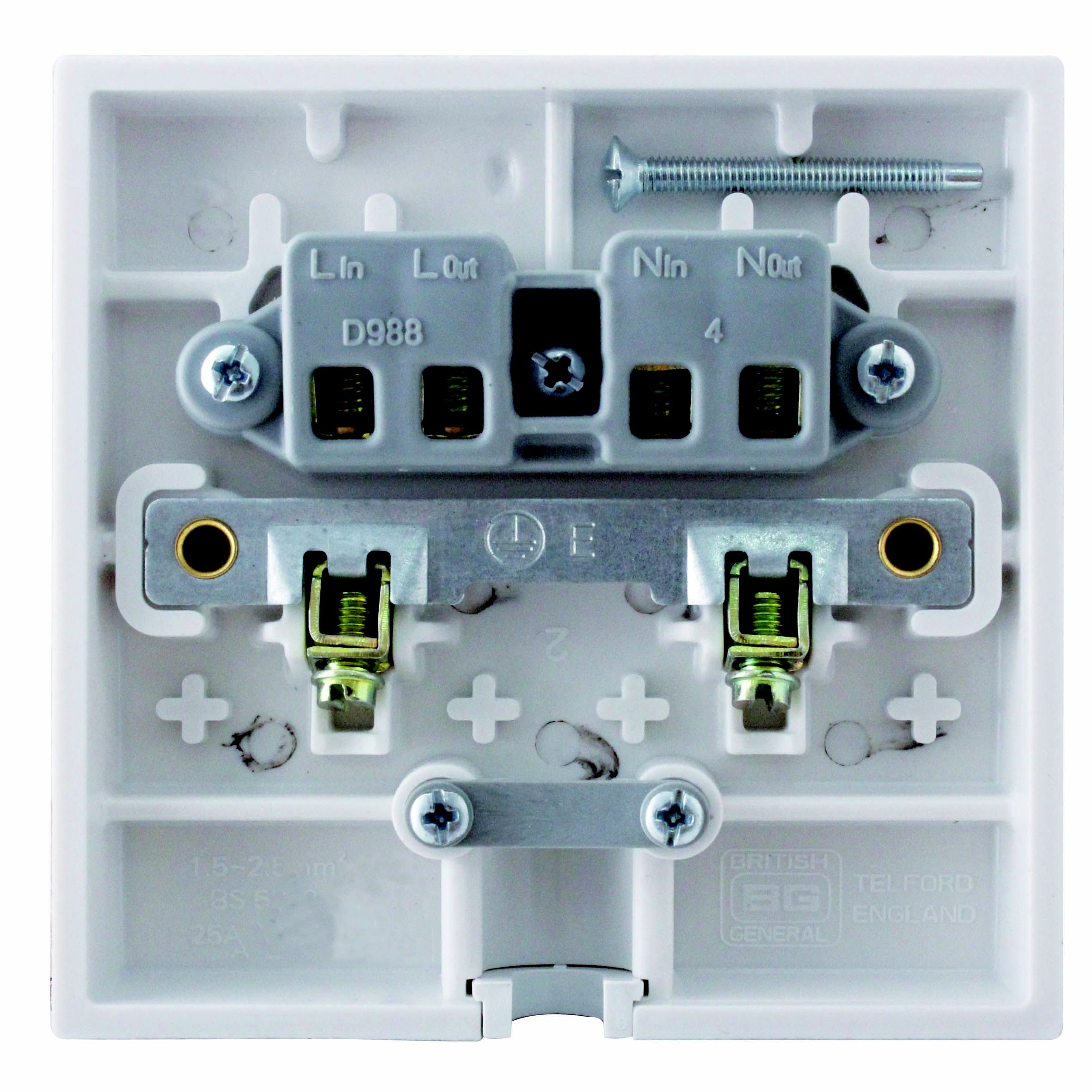

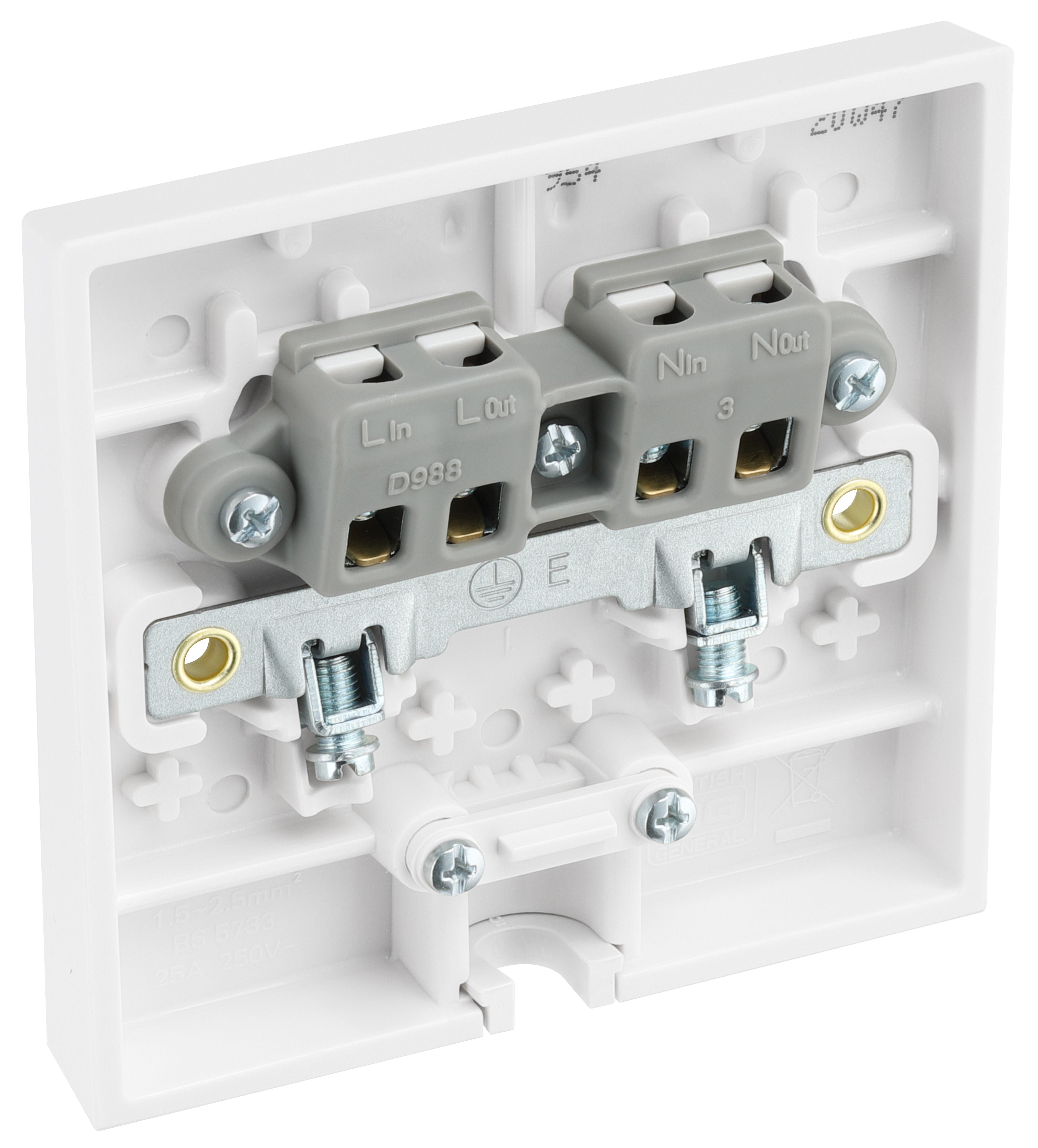

- Angled in-line colour coded terminals with captive screws
- Reversible cord grip for different cable sizes
Specifications
| Colour | White |
|---|---|
| Fused | Unfused |
| GS approved | Not GS approved |
| Minimum box depth required | 25mm |
| Model name/number | 954 |
| NF approved | Not NF approved |
| Number of earth terminals | 1 |
| Number of gangs | 1 |
| Number of modules | Single |
| Product width | 86mm |
| Switch/socket profile | Raised square |
| Screwed/screwless | Screwed |
| Standard | BS 5733 |
| Switched/unswitched | Unswitched |
| Switches & sockets type | Flex outlet |
| Terminal description | In-line terminals with captive screws |
| Product code | 5021166954001 |
