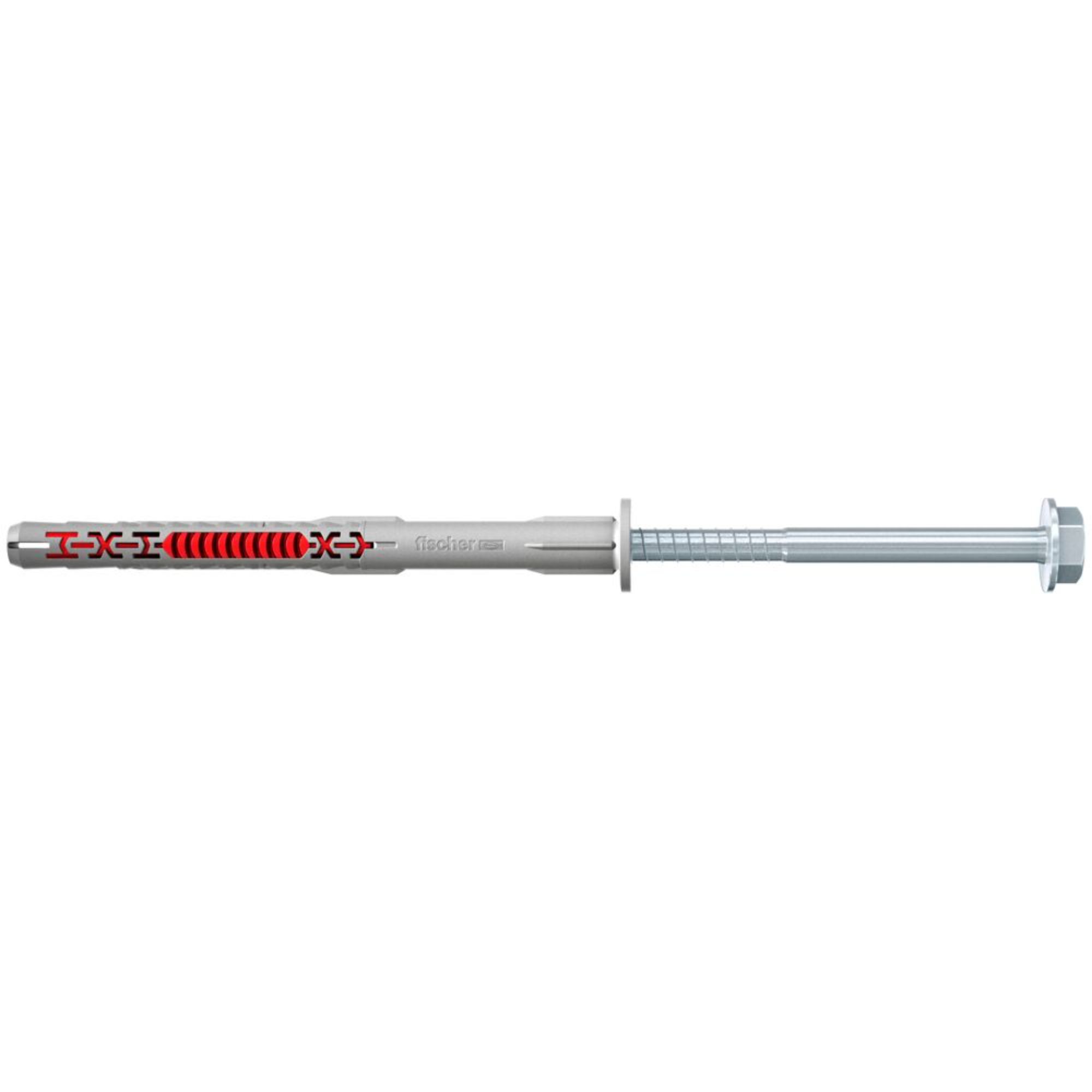

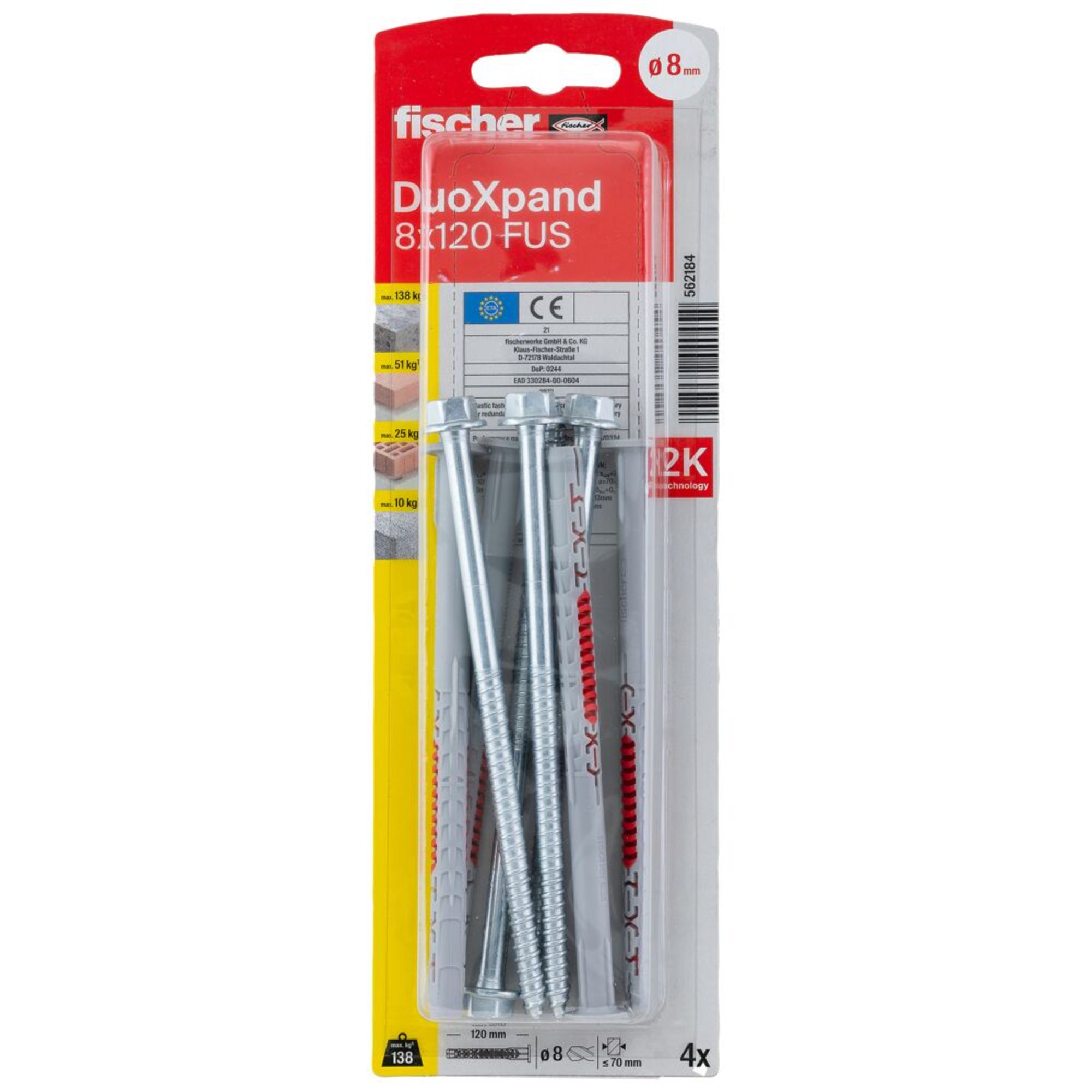

Fischer Hex Frame fixing (Dia)8mm (L)120mm, Pack of 4
Product details
Product information
Product information
These Fischer DuoXpand hex frame fixings offer a versatile and reliable solution for multiple non-load-bearing system fixings in concrete, masonry, aerated concrete, and other materials. Its innovative design ensures optimal performance across various building materials, making it a universal choice for construction and DIY projects.
- Guarantee - Statutory
- Resistant to corrosion & rust
- Suitable for Brick, concrete, concrete blocks, gypsum boards & stone
Features and benefits
- The combination of design and material adapts to all building materials and enables universal use
- The DuoXpand is suitable for push-through installation
- The grey main body made of high-quality nylon provides the strength, while the red material component ensures flexibility and optimal spreading
- The special lamella geometry expands gently in the respective building material
- Expansion element with two anchoring depths for flexible use
- Pre-assembled safety screw with hexagonal head and preformed washer

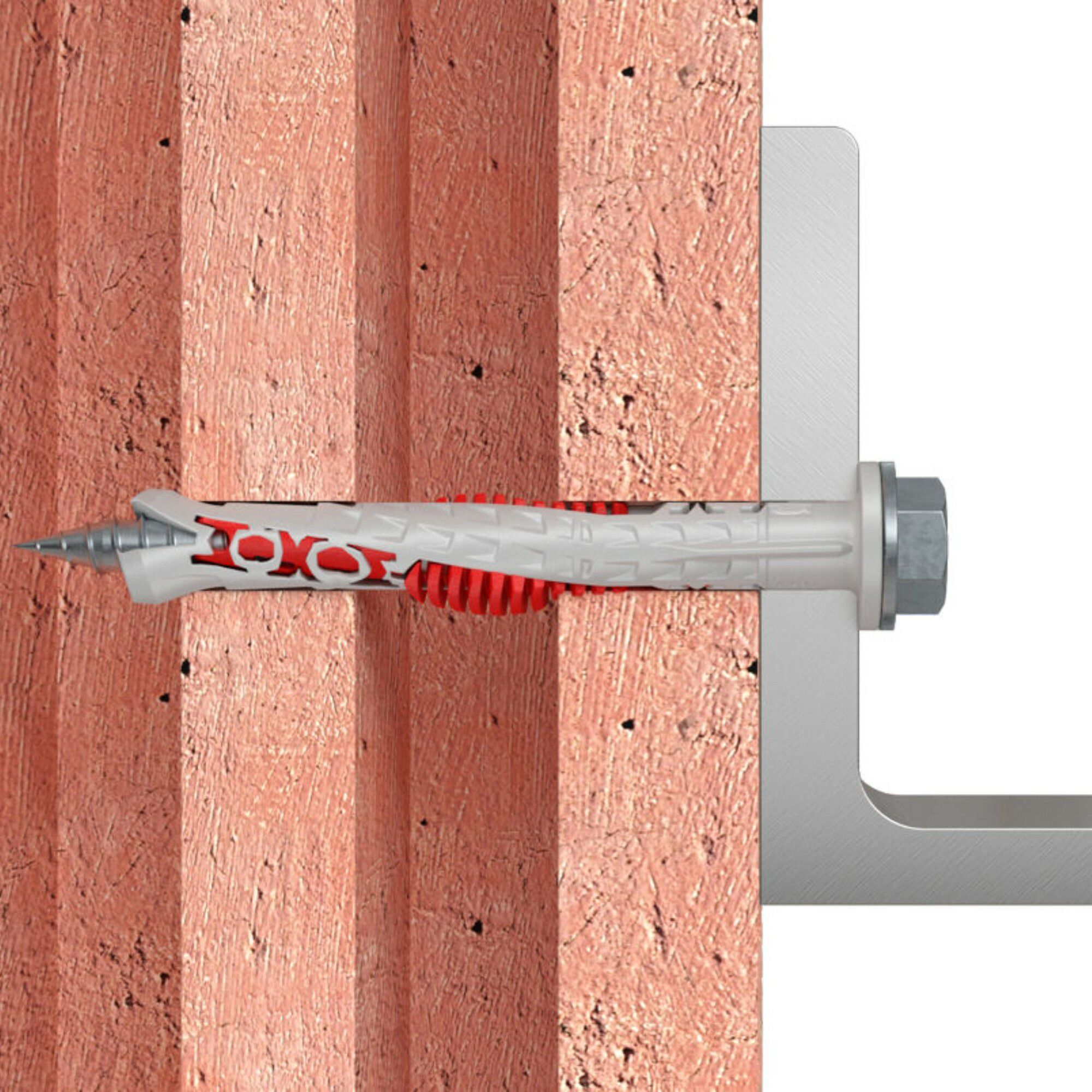

- The DuoXpand with the hexagon head screw and moulded-on washer is particularly suitable for fixing metal to concrete or masonry.
Specifications
| Brand | Fischer |
|---|---|
| Diameter (mm) | 8mm |
| Drill bit size | 8mm |
| Drive type | Hex |
| Head type | Hex |
| Length (mm) | 120mm |
| Location | Internal & external |
| Material | Nylon & steel |
| Maximum fixture depth | 70mm |
| Maximum load (kg) | 138kg |
| Model name/number | 562184 |
| Pack quantity | 4 |
| Screw diameter | 6mm |
| Screw length | 127mm |
| Standard | ETA-21/0324, DoP No. 0347, EN 12602:2016 |
| Thread diameter | 6mm |
| Weight (g) | 147g |
| Product code | 4048962440454 |
Reviews
5 / 5(1 reviews)Fred1313 - 5 / 5 - 18/03/2026
First time using Fischer plugs, very impressed.
I bought these about a week ago, i needed some decent heavy duty plugs and screws for a garden gate build. I've heard a lot of good things about Fischer so i thought I'd try them out. Reused the post that was already attached to the wall to keep the cost down but the original hardware had failed. Plugs fit snug and had instant bite to the wall when drilling in. First screw anchored the post instantly, no movement, you could've swung from that post even before the rest got drilled in. I Would definitely recommend these products to anyone and will definitely be buying more in the future
