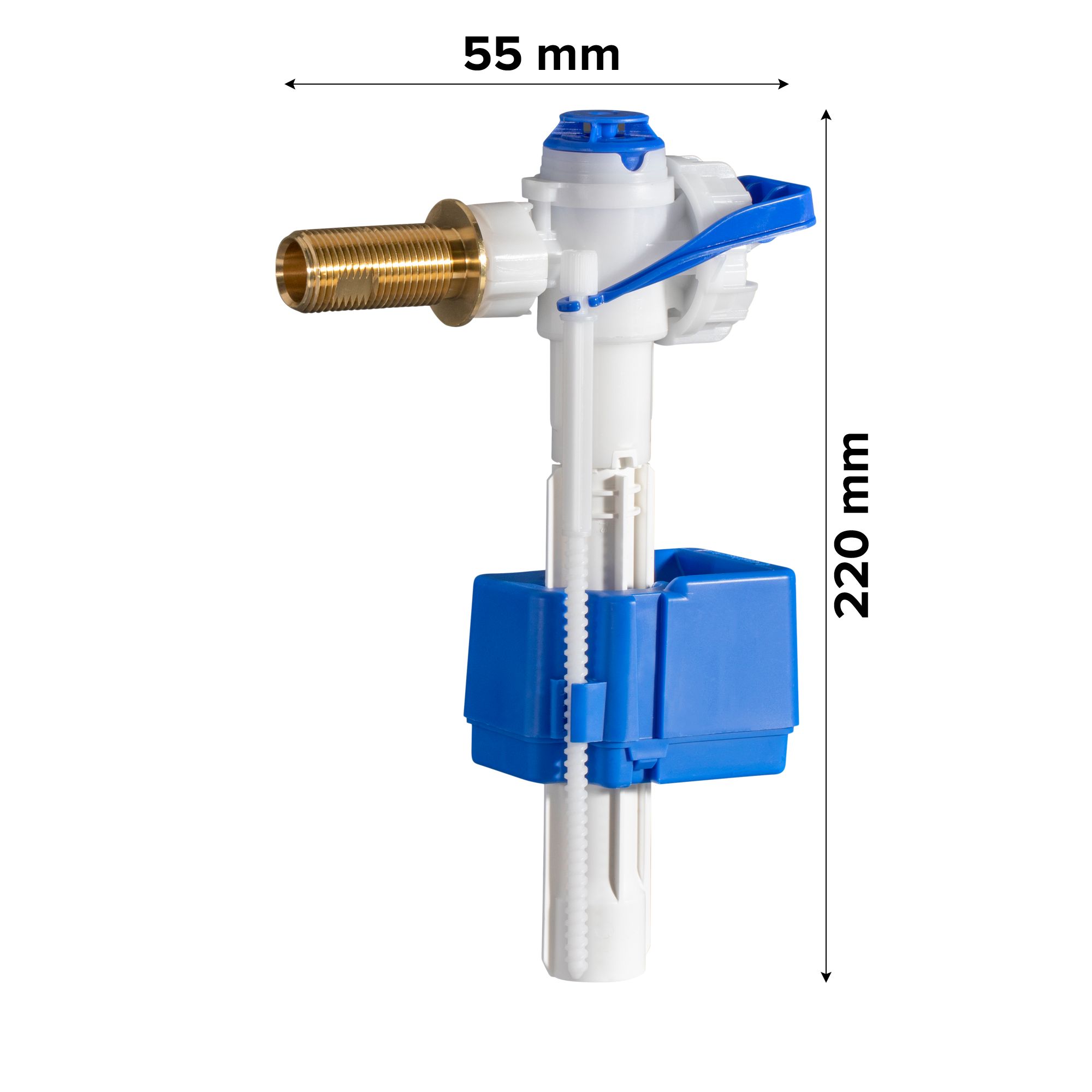

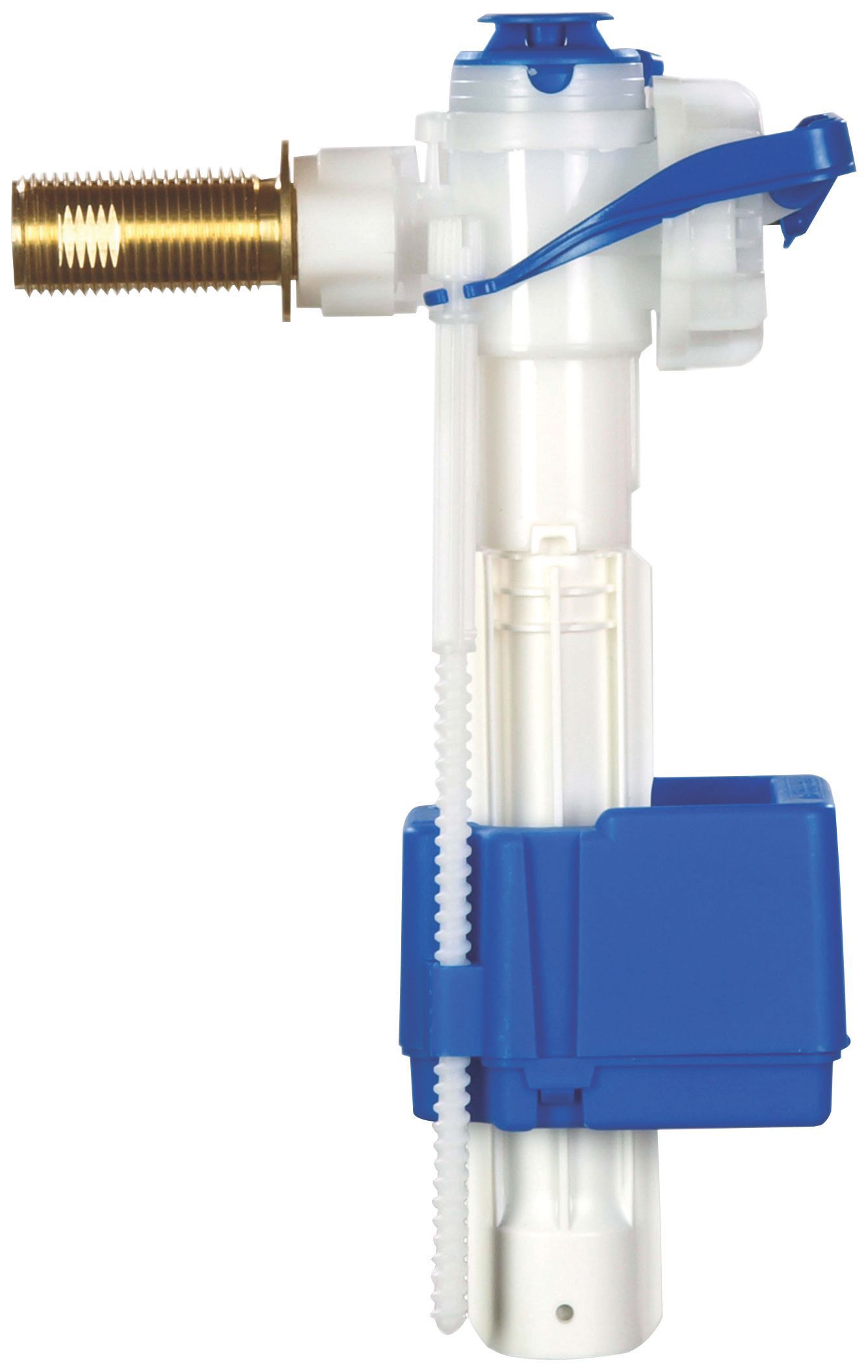

Fluidmaster Brass & plastic Side entry Fill valve, ½"

Product information

This side entry 1/2" fill valve is suitable for use with close coupled toilets. It has a high quality brass thread and silent fill technology

• Manufacturer guarantee - 5 years
• Comes with Instruction manual
• Turn off water supply. Disconnect pipe work and remove old valve. Place inner washer onto threaded shank then install new valve through cistern or tank hole. Place outer washer onto shank outside cistern or tank then thread back nut onto threaded shank to enable tap connector to fit neatly to avoid cross threading. When position is correct, before tightening back nut, reconnect water supply to valve, making sure washer is seated correctly. Tighten tap connector 1/4 turn past hand tight with spanner (do not over tighten). Now tighten back nut with spanner 1/4 turn past hand tight (do not over tighten). Turn on water supply. Adjust float until water level is as marked on inside of cistern or tank. If overflow pipe is at same level as supply line, adjust water level to approximately 25mm (1 inch) below overflow pipe. Turn float adjustment rod clockwise to raise and anti-clockwise to lower water level. Turn on water supply.
• Fittings & fixings included

Features and benefits

• Silent fill - Ends noisy cistern refills, helping to keep disturbance to a minimum for all the family both day and night
• Adjustable - Has an adjustable height for easy fit across of different cistern sizes
• Brass thread - High quality material that reduces the risk of cross threading and damage to the valve
• Tested to 200000 cycles - To ensure the durability and quality of the valve
• Suitable for use with both high and low pressure systems - Giving confidence that this is the right product for any type of system
• (Water supply certification) WRAS certified - Fully complies with all local market regulatory standards, ensuring the quality of the product
