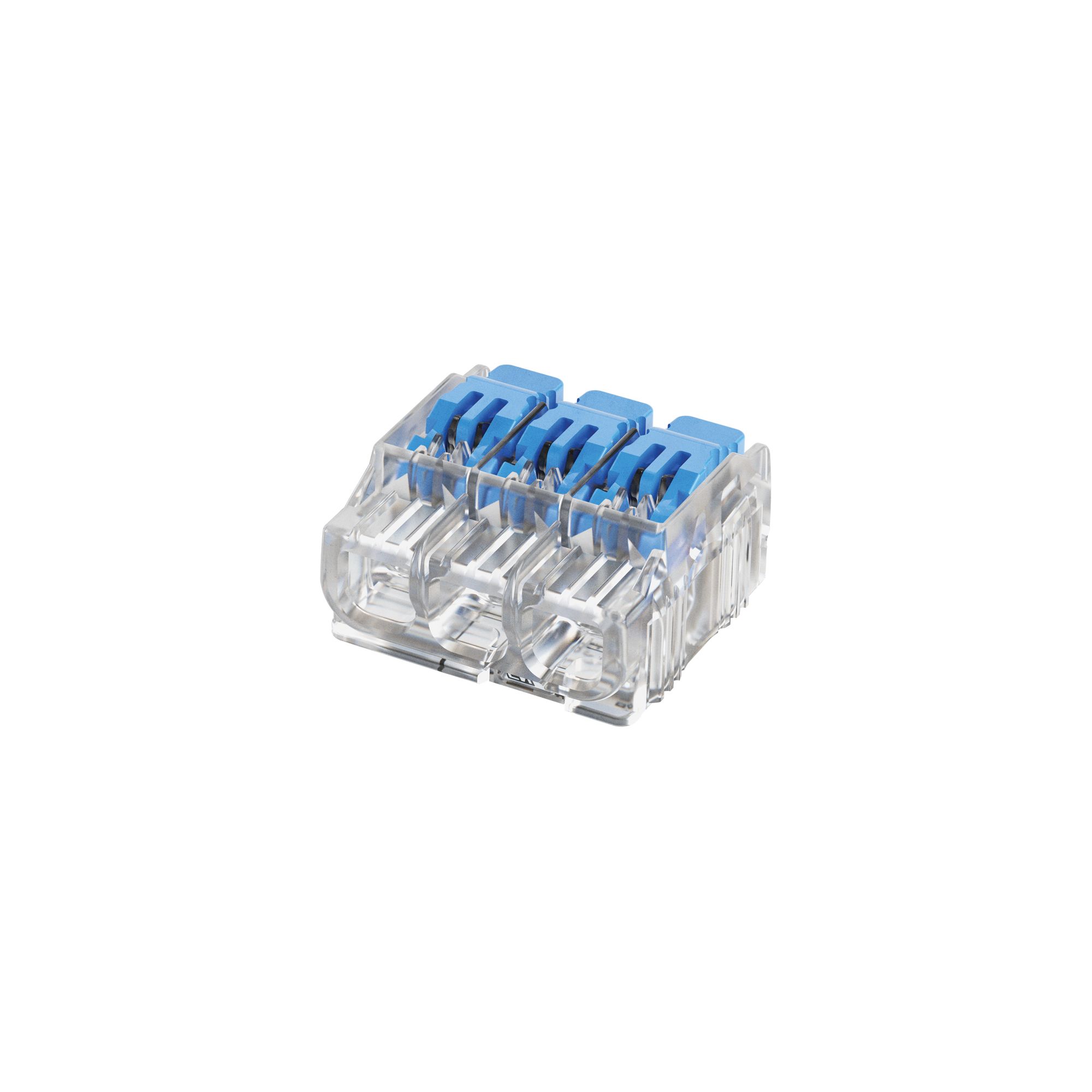

Ideal Industries Blue 32A 3 port Lever connector - 4.00mm², Pack of 10
£4.50Inc. VAT
Product details
Product information
Gen II lever wire connectors can be used in all applications up to 32A including lighting, access control, radial and final ring circuits. Levers open in the opposite direction of insertion point to avoid accidental loosening/pull out. There is a check port for continuity testing and they can take up to 4mm wire. Easy to use with no need to lift the lever when using solid wire.
- Comes with 10x 3 Port
Features and benefits
- Quick and easy installation
- All IDEAL connectors have a transparent polycarbonate shell for verification and include a continuity check port
- Safe and reliable
- Large levers for ease of use
- Continuity Check Port
- Reuseable connector
Specifications
| Cable capacity | 2.5mm |
|---|---|
| Cable capacity (AWG) | 14AWG |
| Colour group | Blue |
| Connection type | Lever |
| IP rating | No IP rating |
| Location | Indoor |
| Material | Polypropylene |
| Maximum cable diameter | 2.5mm |
| Maximum operating temperature | 120°C |
| Model name/number | 30-0093-10 |
| Number of pieces | 10 |
| Power voltage supply | 0-600V |
| Product height | 120mm |
| Product length | 20mm |
| Product weight | 80g |
| Product width | 100mm |
| Standard | EN 60998-1, EN 60998-2-2, BS 7671:2008 (18th Edition), UL 486C |
| Voltage | 450V |
| Product code | 0783250559985 |
Manufacturer / EU responsible person
Reviews
3 / 5(1 reviews)tommo1982 - 3 / 5 - 15/03/2022
Not great
They did what I wanted them to but they're not as good as the orange, branded alternative.
