Ideal Industries Cat 5 Data cable connector, Pack of 10
£7Inc. VAT£1.40 per each
Product details
Product information

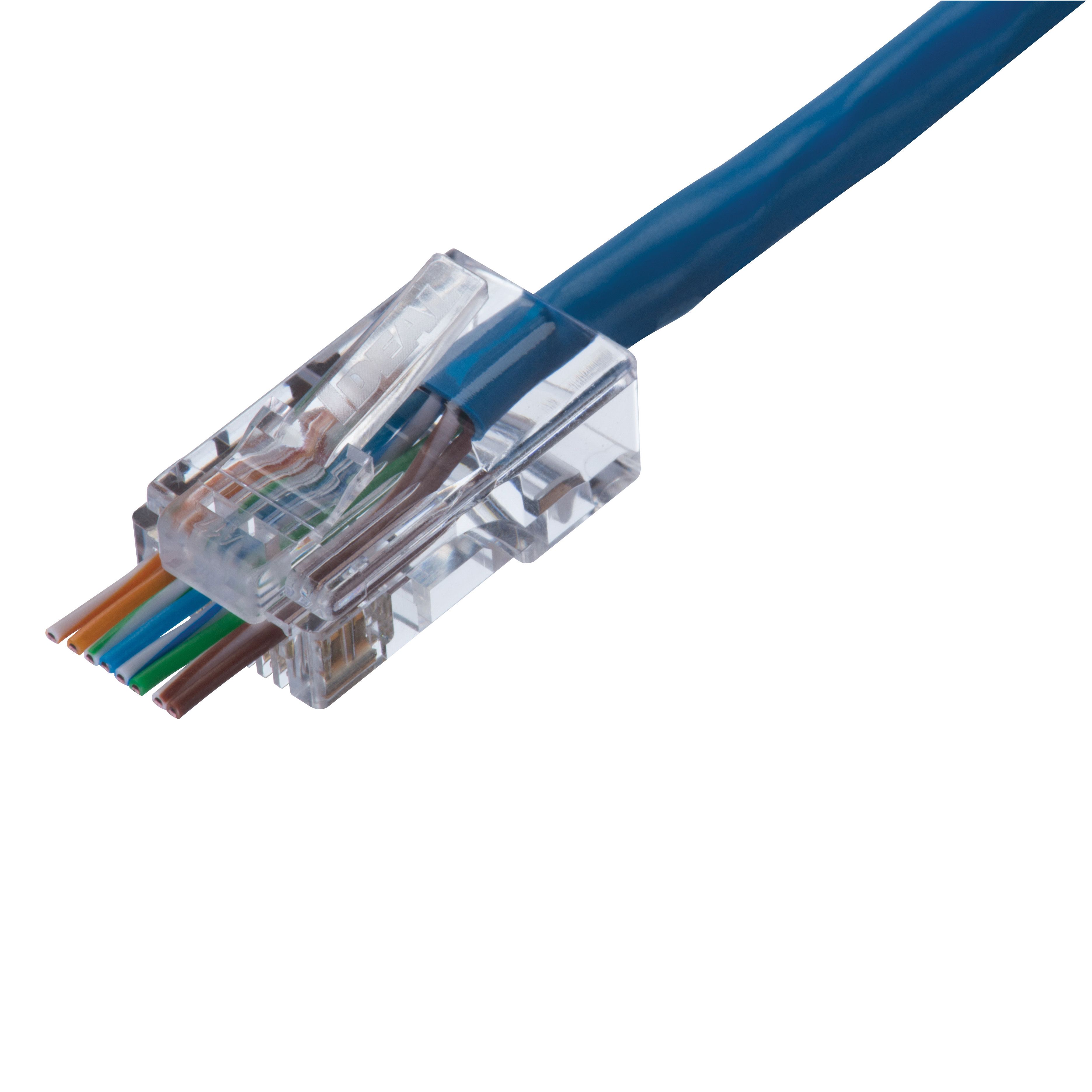

These Cat5e Feed-Thru RJ-45 Modular Plugs are open end Feed-Thru connectors and have several advantages over standard closed end connectors. They reduce errors, are easy to use and improve wire stability.
- Guarantee - 1 year
- Compatible with IDEAL FT-45 Crimp Tool 783250787494 (30-495)
Features and benefits
- Feed-Thru design simplifies connector to cable assembly
- Designed for best performance when used with the IDEAL FT-45 Crimp Tool (30-495)
- 8 position, 8 contact RJ-45 modular plug for CAT5e, 100Ω balanced twisted pair 250 MHz cables
- Flush cut of excess conductors minimizes inadvertent contact outside of the plug
- 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
Specifications
| Connection type | RJ45 |
|---|---|
| Material | Polycarbonate |
| Number of contact points | 8 |
| Product code | 0783250726103 |
Documents
Product Instruction Manual
Range Brochure
Manufacturer / EU responsible person
Reviews
4 / 5(1 reviews)CEMC - 4 / 5 - 12/10/2022
Fantastic RJ45 connector
Having made thousands of network cables, crossover and patch cables these have been the best and easiest to use albeit a bit pricey but we're handy to pick up and were in stock ready for using. These are designed to allow the cables to exit so you can confirm the correct colour sequence and that they all pass the connector pins before clamping (great advantage for less experienced users).
