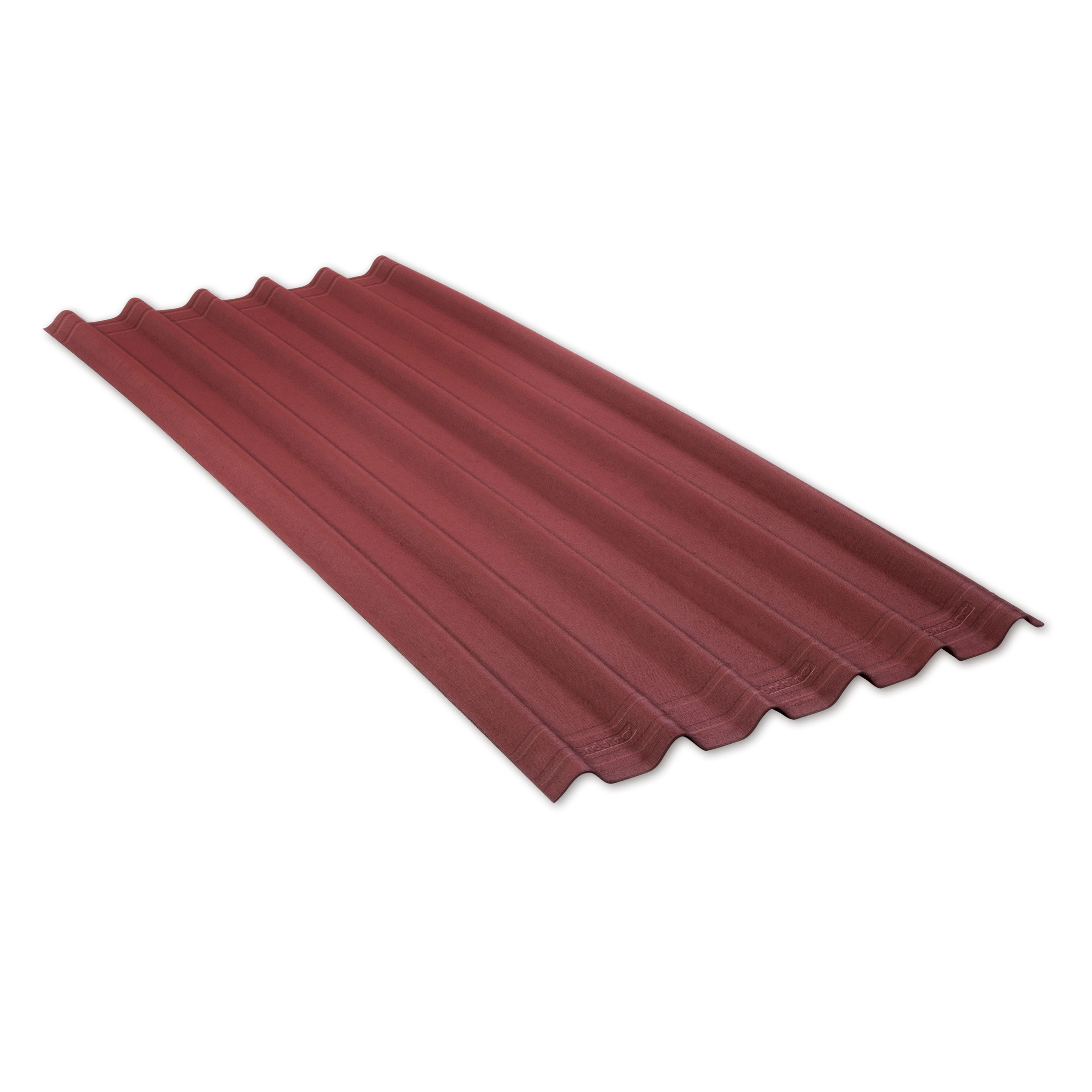

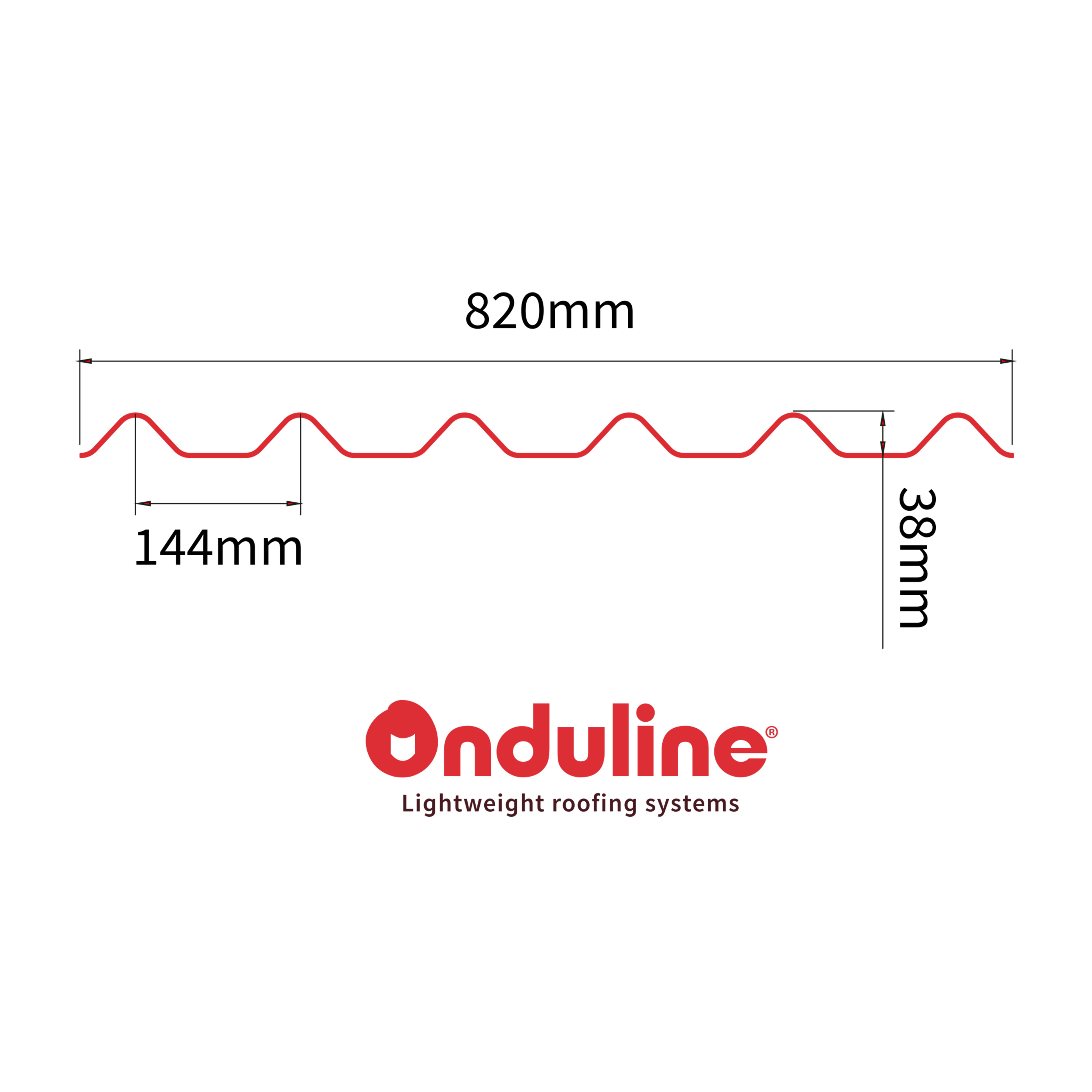

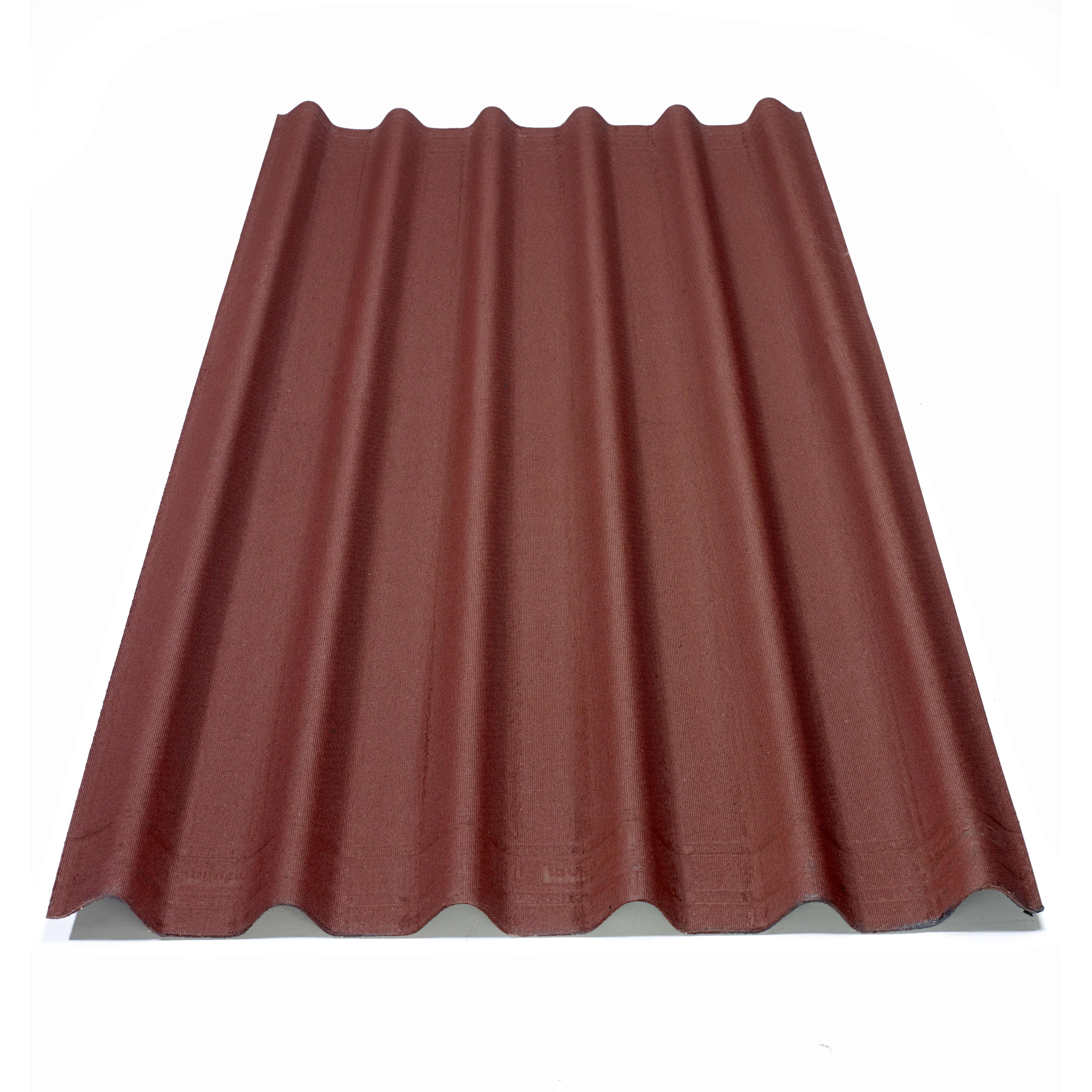

Onduline Red Bitumen Corrugated roofing sheet (L)2m (W)820mm (T)2.6mm

Product information

Onduline® Easyfix is a lightweight corrugated roofing sheet, and is the ideal solution for all DIYers looking to renovate their timber outbuildings: garden sheds, carports, wood shelters, gazebos and workshops, with a roofing material that is easy to install, looks fantastic and stands the test of time. Onduline® Easyfix is an eco-friendly roofing system, as each sheet is made from 50% recycled cellulose fibres. Modern design, similar to metal box profile for quality aesthetics. Suitable for roof pitches as low as 5 degrees. Installation can be on full deck (5°-10°) or discontinuous support (purlins). Onduline® ridges, verges and fixings also available to match the colour of the Easyfix sheet. Guaranteed for 10-years.

• CE marked
• Compatible with Onduline® Ridges, Onduline® Verges, Onduline® Nail Fixings
• Fittings & fixings sold separately
• Guarantee - 10 years

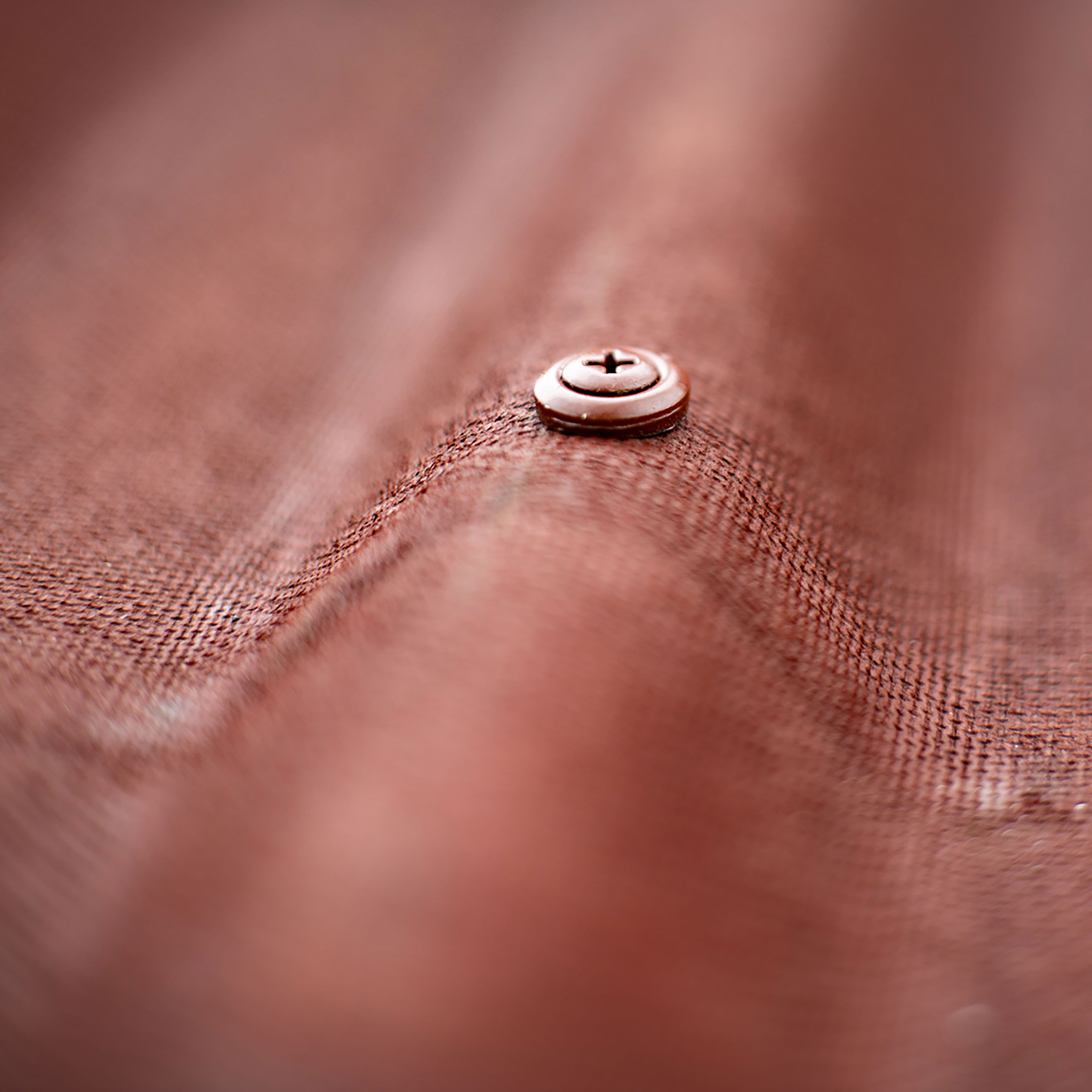

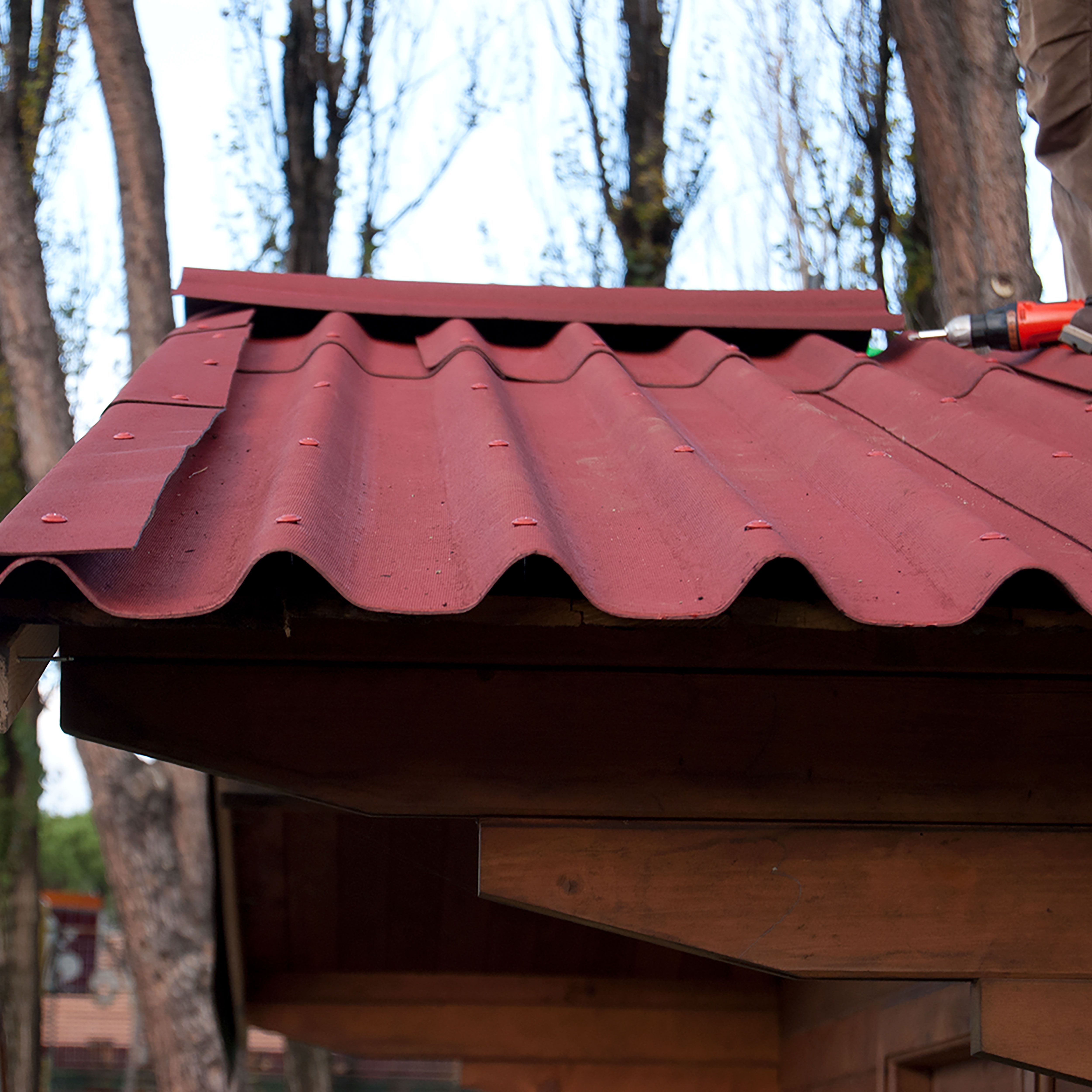

• Start laying sheets over the gutter with a 7 cm overhang. Installation can be on either full deck (recommended) or on discontinuous support. On discontinuous support, the span between purlins must be 37 cm. Minimum Pitch required : 5° (5°-10° pitches require full deck). Lay sheets in the opposite direction to the prevailing winds. Stagger the rows, by starting the second row with a half sheet. To ensure full waterproofing, align the two overlapping lines (overlap by 15 cm). A minimum of 15 fixings should be used per sheet. Always fit on the fixing through the top of the corrugation, ensuring the right order and in between the two overlapping lines. Wait to fix the last corrugation until you overlap it with the next sheet. The aesthetics and wind uplift protection can be optimised by using the verge element accessory, which is fixed first on the sidewall, and then on the top of the corrugation. The overlap must be 12 cm. Cover the ridge with the standard ridge and fix it on each side of the roof, on top of each corrugation. The direction of the overlap is opposite to the direction of the prevailing winds. The overlap must be 12 cm

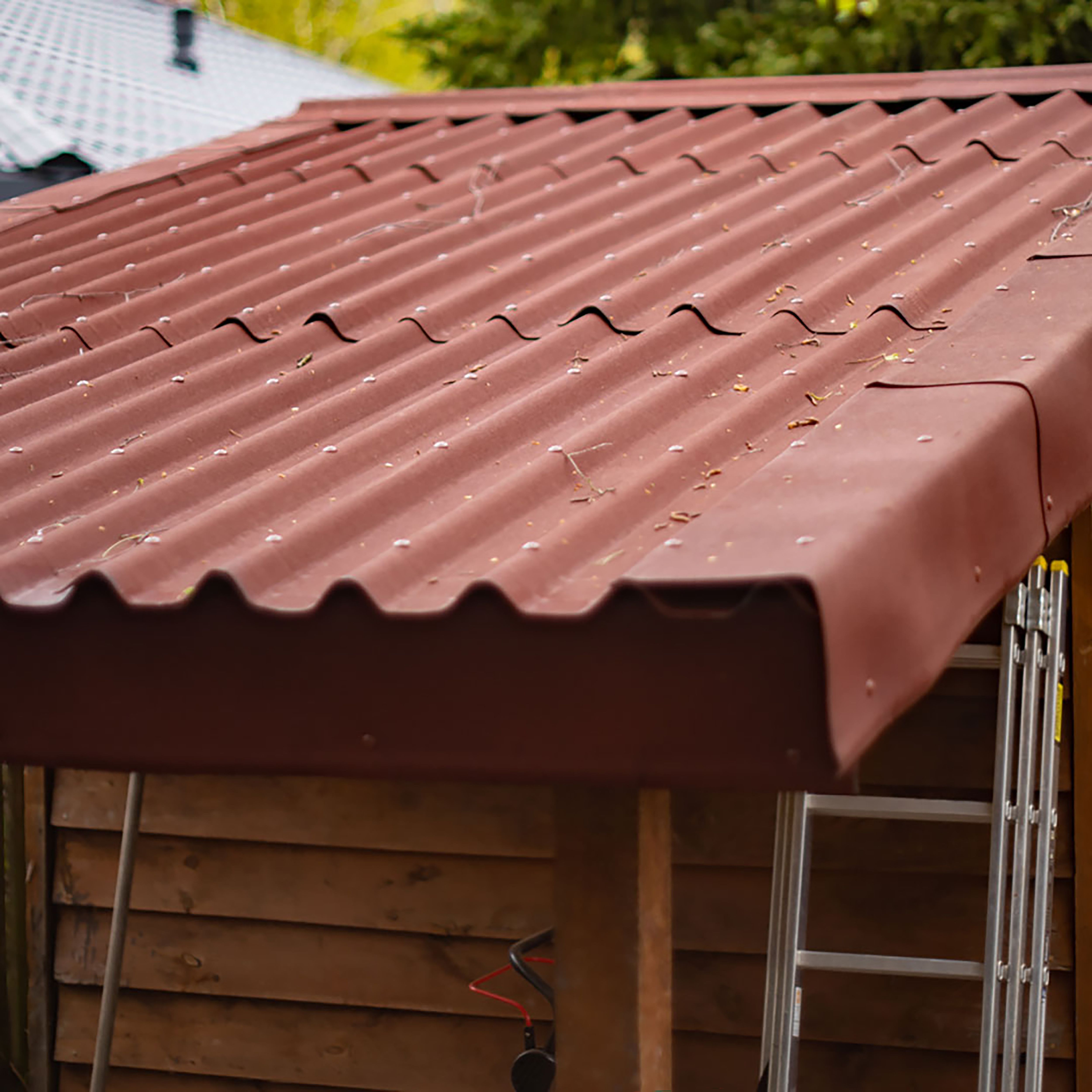

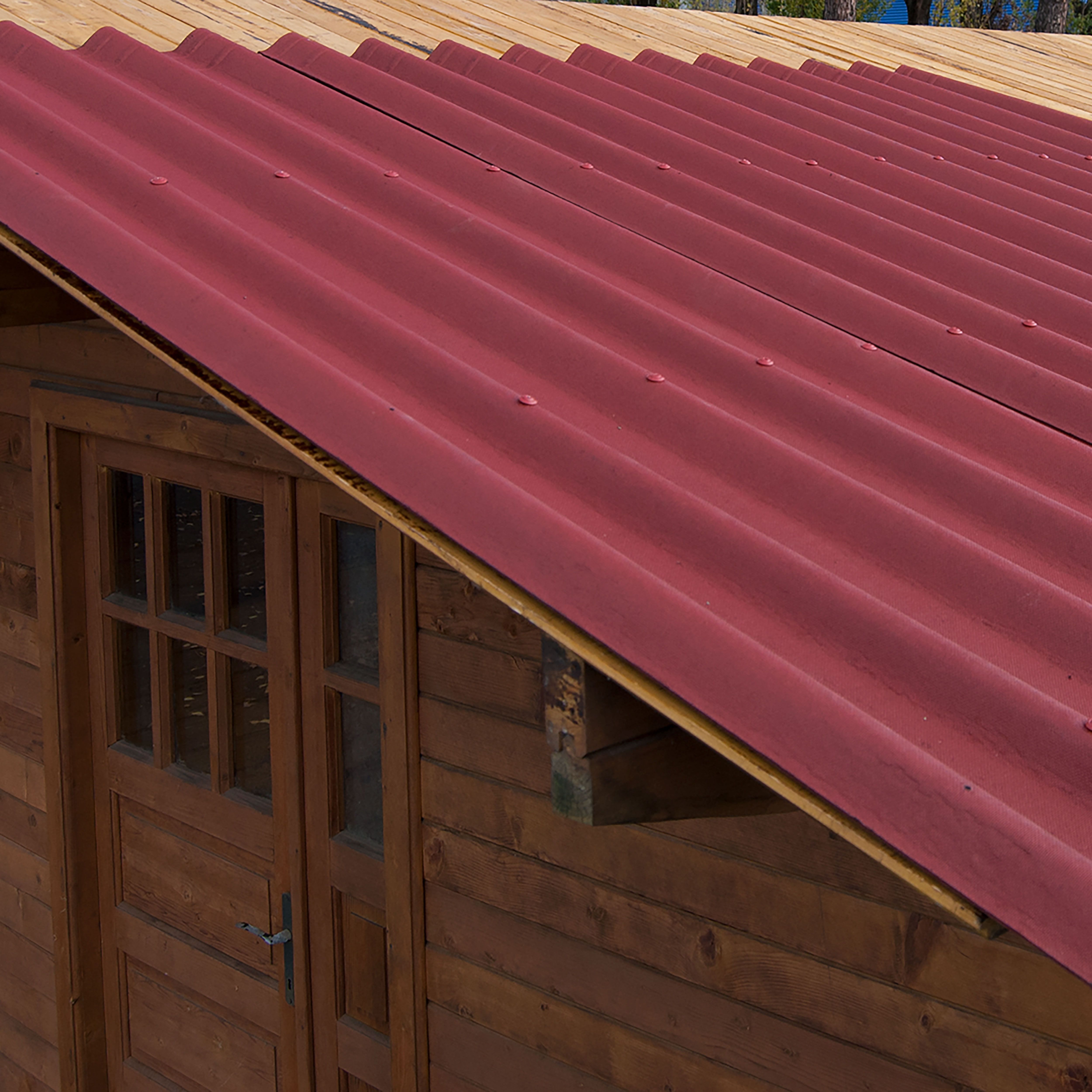

• Onduline® Easyfix sheets provide an attractive, coloured and long lasting finish to a range of timber leisure buildings
• Resistant to ultraviolet, impact & water
• Resistant to ultraviolet, impact & water

Features and benefits

• Onduline® Easyfix is the ideal solution for all DIYers looking to renovate their timber outbuildings with a roofing material that is easy to install, looks fantastic and stands the test of time
• Easy to install, thanks to the embossed overlapping lines on each sheet, meaning there is no need for measuring! The sheet positioning is intuitive
• 10-year waterproofing guarantee. Tried and tested. Can be installed over existing shed felt or shingles
• Eco-friendly: Made from 50% recycled cellulose fibres
• Available in a range of premium quality colours. Completely safe material, contains no asbestos or harmful chemicals, making it safe for people and animals
