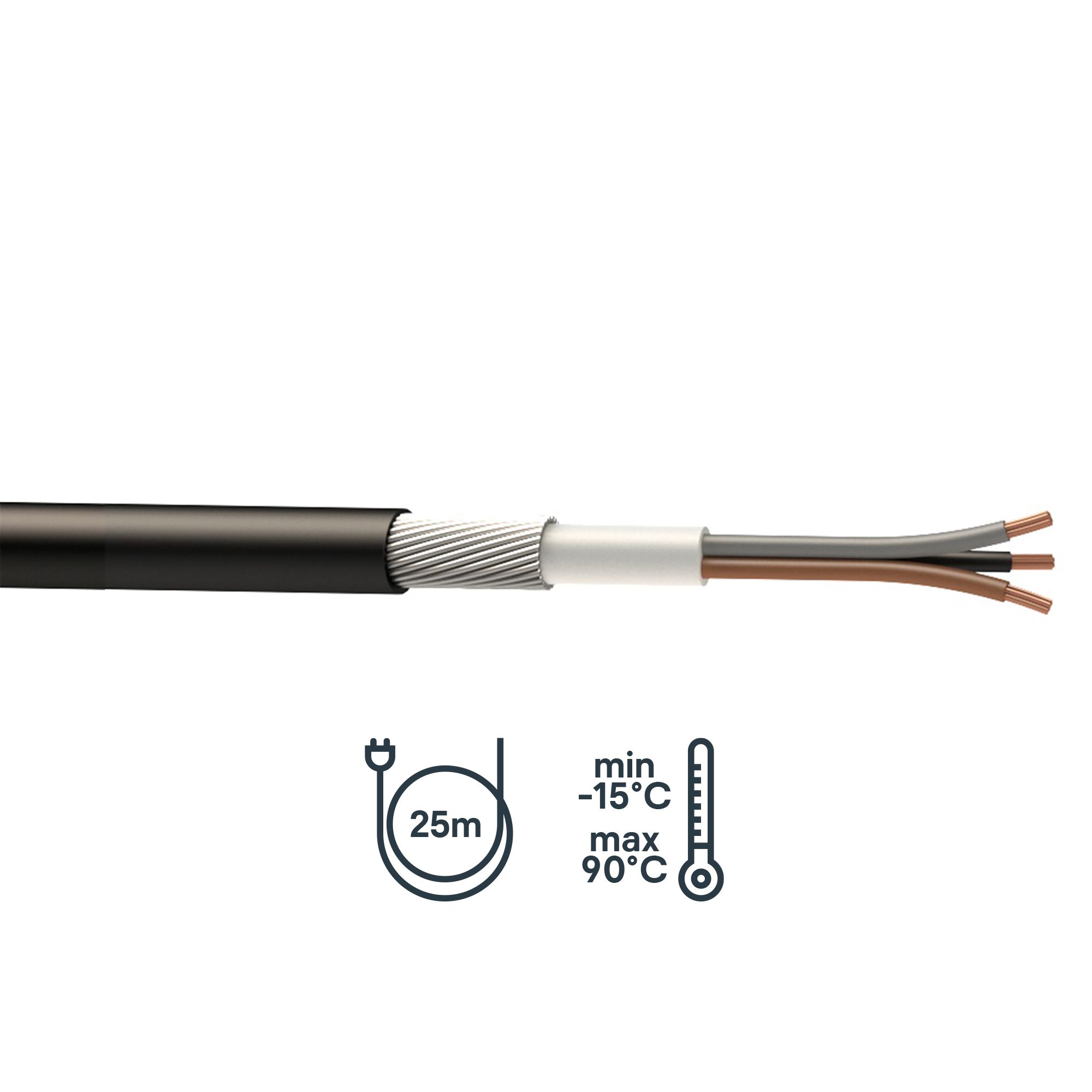

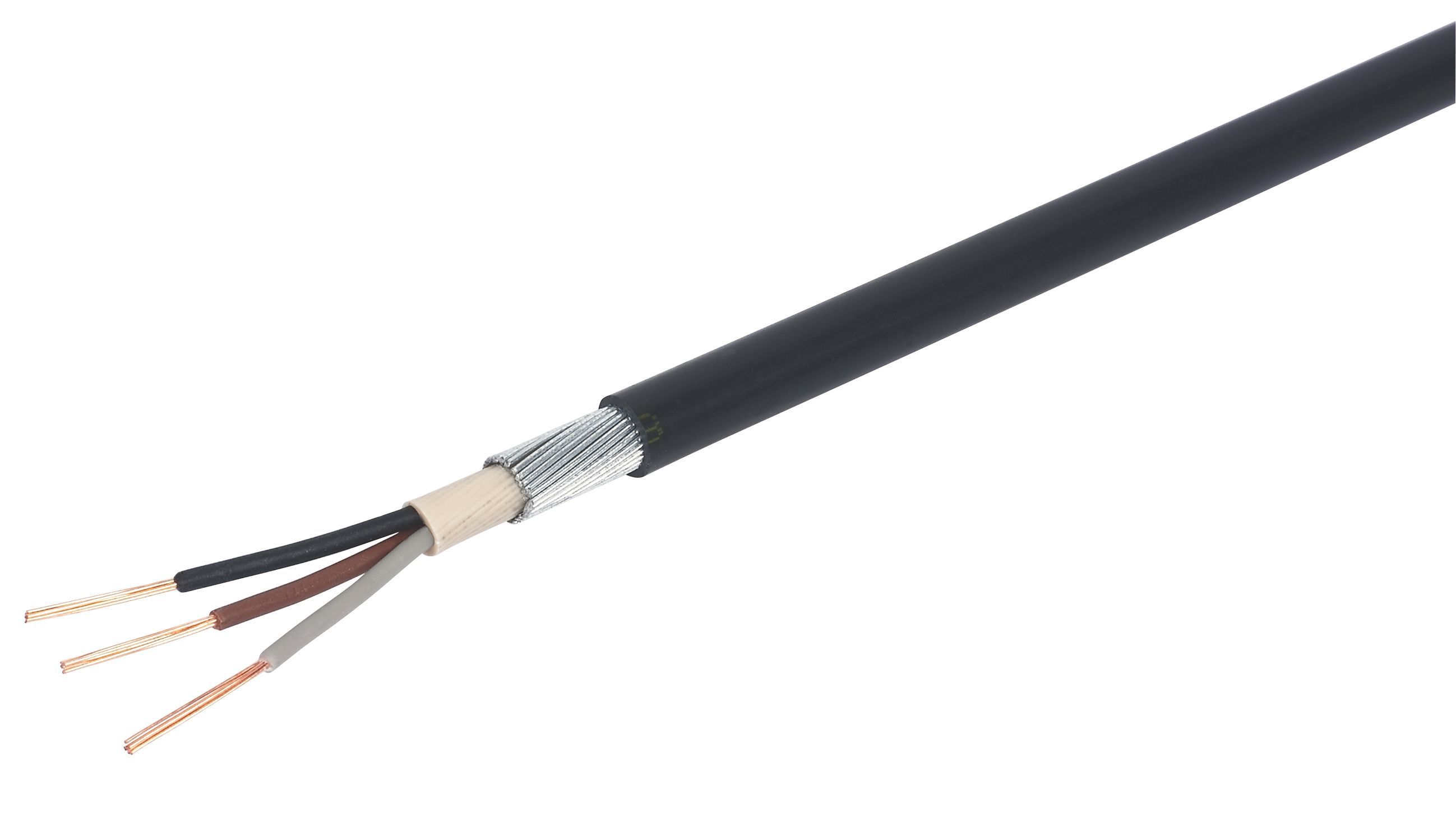

Prysmian Black 3-core Armoured Cable 1.5mm² x 25m
Product details
Product information
The ultimate low voltage armoured cable for robust power distribution. Prysmian's BS 5467 cable is built to withstand the toughest industrial conditions. Its durable PVC outer sheath and armouring can handle being clipped directly to surfaces, laid in trays or even buried in concrete. Perfect for 3-phase power up to 1000V or single phase up to 600V, this 25m coil delivers serious electrical muscle. When you need an ultra-dependable cable that won't let you down, choose the power and protection of Prysmian. BS 5467 - accept nothing less for your critical connections.
- Cable type - Armoured
Features and benefits
- Prysmian BS 5467 is the low voltage armoured cable for industrial wiring and mains distribution
- Designed primarily for clipped directly to a surface, on tray, in basket or in free air.
- Can also be laid direct in ground or in ducts in free draining soil, or embedded in concrete.
- The design of Prysmian BS 5467 is particularly robust and is well suited to areas at risk of mechanical damage.
- Maximum voltage for 3-phase is 1000V.
- Maximum voltage for single phase is 600V.
- Current rating is based on single phase clipped direct method in BS7671
Specifications
| Amp rating | 26A |
|---|---|
| Brand | Prysmian |
| Cable code | 6943X |
| Cable length | 25m |
| Colour | Black |
| Conductor area | 1.5mm² |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -15°C |
| Number of cores | 3 |
| Number of pieces | 1 |
| Number of wire strands | 7 |
| Outer sheath material | PVC |
| Pack quantity | 1 |
| Sheath properties | Standard |
| Shield material | Unshielded |
| CPC conductor area | 1.5mm² |
| Circuit protective conductor (CPC) | Without CPC |
| Number of CPC cores | 0 |
| Product code | 5019325287411 |
Reviews
4.71 / 5(14 reviews)4635Mick - 5 / 5 - 09/11/2023
Excellent
No issues with this cable just the job for the new summer house
R55esy - 5 / 5 - 19/07/2023
Canle
Good product is to collect and use would buy again
Wgashfrere - 5 / 5 - 23/02/2021
Not 6mm
Helps if all the web specs are consistent across product ranges!
Rob the wasp - 4 / 5 - 07/11/2017
Quality
Good quality for a reasonable price n n n n n
- 5 / 5 - 10/07/2016
Great
Ideal for our outdoor hot tub in the garden. Very economical
mcmp59 - 5 / 5 - 22/03/2016
Great product and price
I purchased this for laying from my house to my summerhouse. The delivery was excellent, ordered on a Friday afternoon and delivered by lunchtime Saturday. The cable is just what was required, substantial and has done the job perfectly. I have also extended my broadband connection to the summerhouse using a TP Link extender, which utilizes the mains wiring. The speed is exactly the same as if I was stood in my house next to the router itself, which must give an indication of how good the cable is.
- 5 / 5 - 13/11/2015
Good value
Good quality, best price I could find, wiring colours not standard apart from brown, not a problem if you're careful
Bozo1 - 5 / 5 - 28/08/2015
Armoured Cable
Easy to order, arrived quickly and I was notified of availability for pick up in store by text. The cable was good to go, there was no reel, I made the mistake of just pulling one end from the coil which resulted in a bit of a tangle. The cable was of good quality and I experienced no problems installing it beyond my own incompetence. B&Q was the best price I could find for this length of reinforced cable.
Catfish123 - 5 / 5 - 09/07/2015
Ideal
Good cable ideal for the job we had, and far cheaper than the local electrical suppliers.
NPHerbert - 5 / 5 - 03/02/2015
Top quality, at a good price!
I bought this armoured cable to undertake a 'very permanent' installation of a string of outside lights to light my driveway. Absolutely perfect for the job, and not as difficult to 'tail' and join as I was anticipating. Highly recommended.
