Prysmian Black 3-core Armoured Cable 2.5mm² x 10m
Product details
Product information

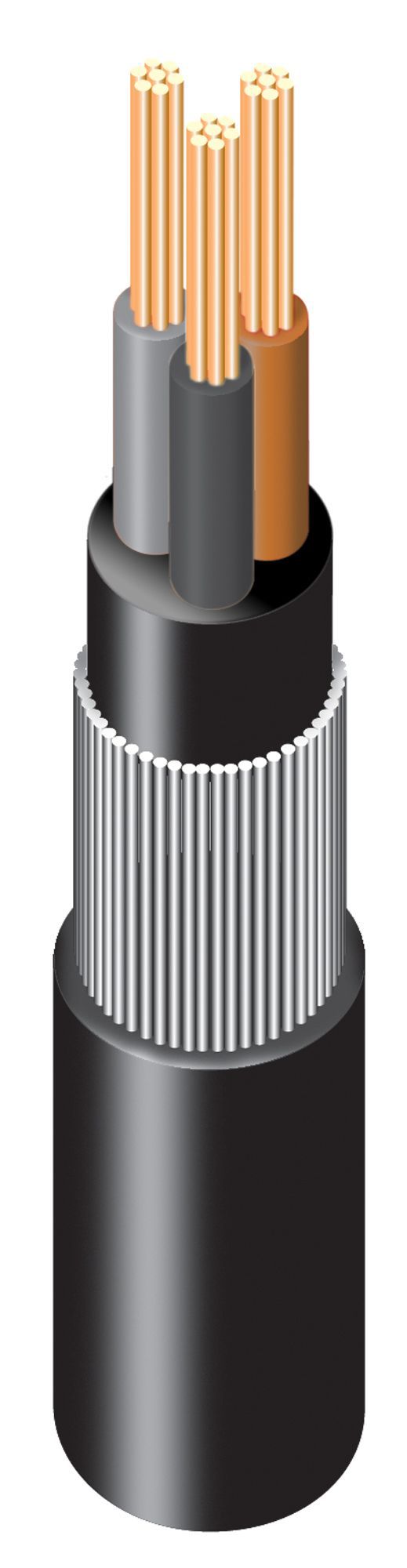

A 3-core armoured copper cable for industrial electrical installations. This flexible 10 metre cable from Prysmian provides a durable and dependable power supply for high-demand equipment. Featuring a durable PVC outer sheath and copper conductors, this cable can handle loads up to 36 amps. The armoured design protects against damage in harsh environments. This cable offers a reliable, long-lasting solution for supplying power in factories, warehouses and other commercial settings.
- Cable type - Armoured
Features and benefits
- Prysmian BS 5467 is the low voltage armoured cable for industrial wiring and mains distribution
- Designed primarily for clipped directly to a surface, on tray, in basket or in free air.
- Can also be laid direct in ground or in ducts in free draining soil, or embedded in concrete.
- The design of Prysmian BS 5467 is particularly robust and is well suited to areas at risk of mechanical damage.
- Maximum voltage for 3-phase is 1000V.
- Maximum voltage for single phase is 600V.
- Current rating is based on single phase clipped direct method in BS7671
Specifications
| Amp rating | 36A |
|---|---|
| Brand | Prysmian |
| Cable code | 6943X |
| Cable length | 10m |
| Colour | Black |
| Conductor area | 2.5mm² |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -15°C |
| Number of cores | 3 |
| Number of pieces | 1 |
| Number of wire strands | 7 |
| Outer sheath material | PVC |
| Pack quantity | 1 |
| Sheath properties | Standard |
| Shield material | Unshielded |
| CPC conductor area | 2.5mm² |
| Circuit protective conductor (CPC) | Without CPC |
| Number of CPC cores | 0 |
| Product code | 5019325287466 |
Reviews
4.62 / 5(16 reviews)Big daz - 4 / 5 - 27/04/2025
Great features
Great product easy fitting to use for our new outside sockets
Annon - 4 / 5 - 04/01/2025
Quality product
Good brand, excellent quality but difficult to work without the stripping tool
4635Mick - 5 / 5 - 09/11/2023
Excellent
No issues with this cable just the job for the new summer house
R55esy - 5 / 5 - 19/07/2023
Canle
Good product is to collect and use would buy again
Wgashfrere - 5 / 5 - 23/02/2021
Not 6mm
Helps if all the web specs are consistent across product ranges!
Rob the wasp - 4 / 5 - 07/11/2017
Quality
Good quality for a reasonable price n n n n n
- 5 / 5 - 10/07/2016
Great
Ideal for our outdoor hot tub in the garden. Very economical
mcmp59 - 5 / 5 - 22/03/2016
Great product and price
I purchased this for laying from my house to my summerhouse. The delivery was excellent, ordered on a Friday afternoon and delivered by lunchtime Saturday. The cable is just what was required, substantial and has done the job perfectly. I have also extended my broadband connection to the summerhouse using a TP Link extender, which utilizes the mains wiring. The speed is exactly the same as if I was stood in my house next to the router itself, which must give an indication of how good the cable is.
- 5 / 5 - 13/11/2015
Good value
Good quality, best price I could find, wiring colours not standard apart from brown, not a problem if you're careful
Bozo1 - 5 / 5 - 28/08/2015
Armoured Cable
Easy to order, arrived quickly and I was notified of availability for pick up in store by text. The cable was good to go, there was no reel, I made the mistake of just pulling one end from the coil which resulted in a bit of a tangle. The cable was of good quality and I experienced no problems installing it beyond my own incompetence. B&Q was the best price I could find for this length of reinforced cable.
