Prysmian Grey 3-core & earth Cable 1.5mm² x 25m
Product details
Product information

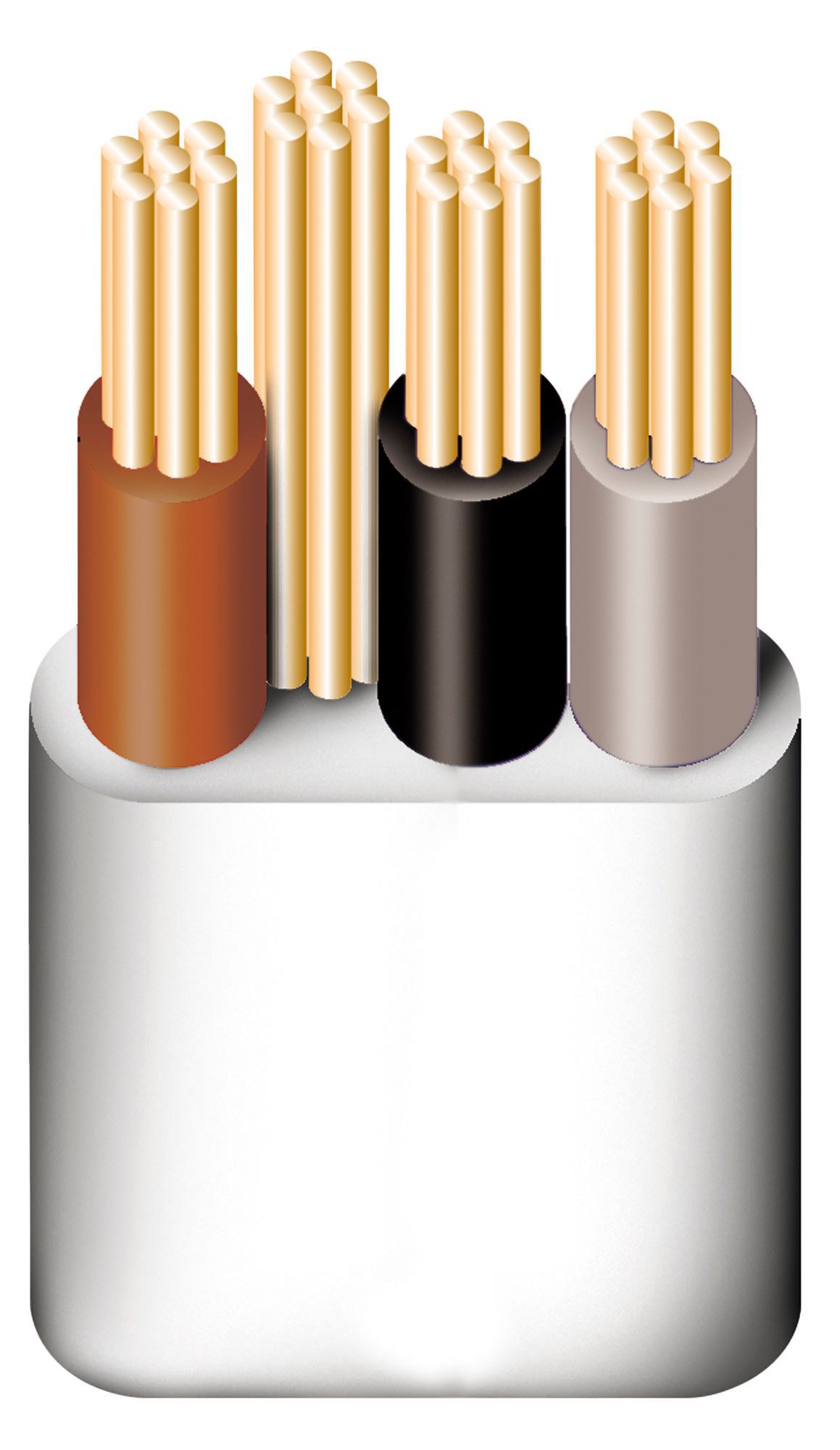

This is a 3-core copper cable with an earth, 25 meters in length. It has a flat PVC outer sheath and is unshielded. The cable is rated at 20 amps and 500 volts maximum, suitable for mains and low voltage wiring. It is grey in colour and weighs approximately 2.63 kilograms. Manufactured in the UK to BS 6004 standards, this industrial wiring and distribution cable would be ideal for a variety of applications where a durable, versatile power cable is required.
Features and benefits
- Prysmian 6243Y is a flat PVC insulated and sheathed low voltage wiring cable typically used for small power and lighting applications
- 20 A 3 core cable
- Ideal for ring and radial circuits
- Ideal for lighting and switching circuits
- Easy to strip
- Maximum voltage for 3-phase is 500V.
- Maximum voltage for single phase is 300V.
- Current rating is based on single phase clipped direct method in BS7671
Specifications
| Amp rating | 20A |
|---|---|
| Brand | Prysmian |
| Cable code | 6243YH |
| Cable length | 25m |
| Colour | Grey |
| Conductor area | 1.5mm² |
| Maximum operating temperature | 70°C |
| Minimum operating temperature | -15°C |
| Number of cores | 3 |
| Number of pieces | 1 |
| Number of wire strands | 1 |
| Outer sheath material | PVC |
| Pack quantity | 1 |
| Sheath properties | Standard |
| Shield material | Unshielded |
| CPC conductor area | 1mm² |
| Circuit protective conductor (CPC) | With CPC |
| Number of CPC cores | 1 |
| Product code | 5019325301841 |
Reviews
4.33 / 5(6 reviews)Big mon - 5 / 5 - 16/04/2024
Very good and easy to use.
Done just what I wanted it for, you can’t ask for more.
mickbenne1 - 4 / 5 - 08/11/2017
General PVC Cable
This cable being a general range within the PVC/PVC 6243Y found useful to obtain a reasonably shorter length than normally required. Whilst being used to trade costing during my lifetime found cost to be commensurate with retail-supply & demand.
Luke28tv - 5 / 5 - 20/07/2014
Decent cable at a very good price.
Brought to add a switch to a garage light that was a single 1 way switched light. Had to replace the current twin and earth cable going from the light switch to the light fitting and add a length going from the new switch to the light fitting. As it's not a very big garage, this was plenty to do the job and have loads left over. Used the reserve and collect service. Reserved it the night before (Saturday) and got a call the next morning at 11am to say it was there and waiting for me.
peterrr - 4 / 5 - 28/03/2013
cable
All fine, and useful to have "reserve and collect".
Smudge - 3 / 5 - 17/07/2012
Cable OK, insulation not easy-strip
While the quality of the cable seems fine, the supposed easy-strip insulation is not that easy. It was very time consuming to strip back a relatively short length, despite having pre-scored it. Trying to ease back another 30mm of installed cable to ease space in the pattress was nowhere near as straightforward as with cables such as BICC. However, if time isn't of the essence, the value for money is OK. I wouldn't want to be on site using it.
masterofnone - 5 / 5 - 18/03/2011
Cable is cable, but good price.
