Prysmian Grey 3-core & earth Cable 1.5mm² x 50m
Product details
Product information

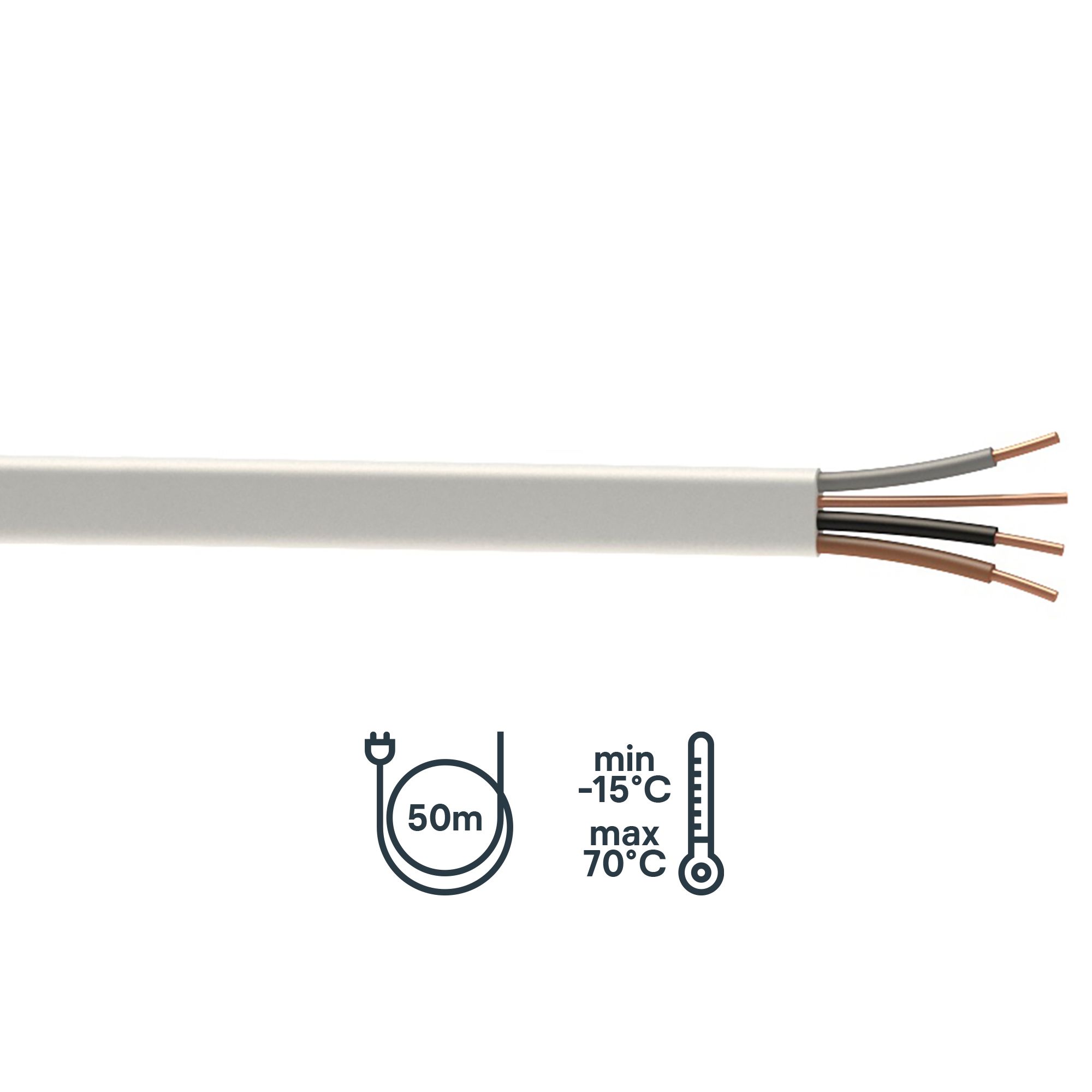

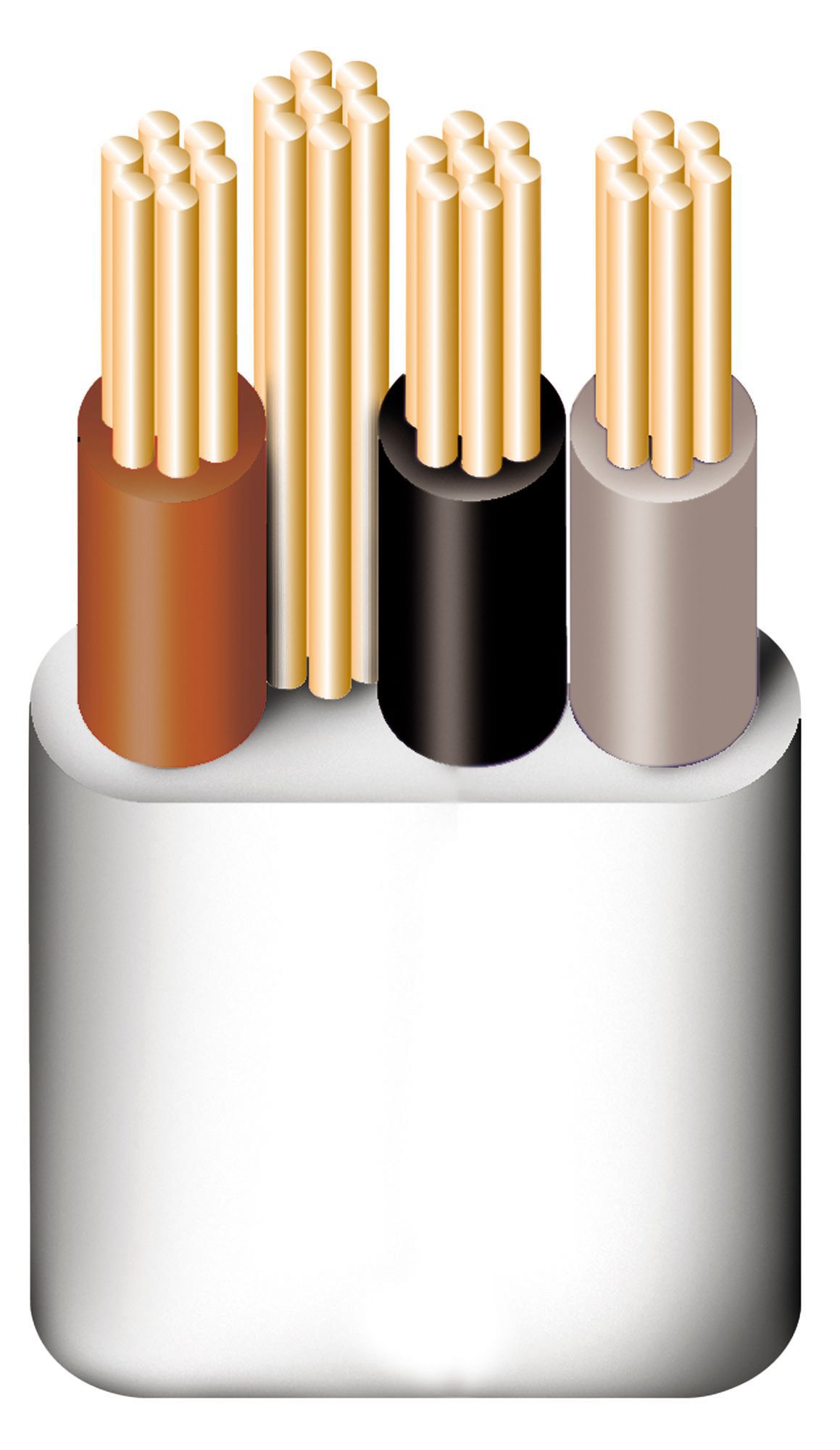

This is a 50 meter, 3-core copper cable with PVC insulation and sheathing. It has a flat, grey outer sheath and is unshielded. Rated at 20 amps and 500 volts, it is suitable for mains and low voltage wiring and industrial distribution. Manufactured in the UK to BS 6004 standards. The cable weighs approximately 5.25 kilograms and is supplied on a drum.
- Cable type - 3-core & earth
Features and benefits
- Prysmian 6243Y is a flat PVC insulated and sheathed low voltage wiring cable typically used for small power and lighting applications
- 20 A 3 core cable
- Ideal for ring and radial circuits
- Ideal for lighting and switching circuits
- Easy to strip
- Maximum voltage for 3-phase is 500V.
- Maximum voltage for single phase is 300V.
- Current rating is based on single phase clipped direct method in BS7671
Specifications
| Amp rating | 20A |
|---|---|
| Brand | Prysmian |
| Cable code | 6243YH |
| Cable length | 50m |
| Colour | Grey |
| Conductor area | 1.5mm² |
| Maximum operating temperature | 70°C |
| Minimum operating temperature | -15°C |
| Number of cores | 3 |
| Number of pieces | 1 |
| Number of wire strands | 1 |
| Outer sheath material | PVC |
| Pack quantity | 1 |
| Sheath properties | Standard |
| Shield material | Unshielded |
| CPC conductor area | 1mm² |
| Circuit protective conductor (CPC) | With CPC |
| Number of CPC cores | 1 |
| Product code | 5019325305825 |
Reviews
4 / 5(4 reviews)Big mon - 5 / 5 - 16/04/2024
Very good and easy to use.
Done just what I wanted it for, you can’t ask for more.
mickbenne1 - 4 / 5 - 08/11/2017
General PVC Cable
This cable being a general range within the PVC/PVC 6243Y found useful to obtain a reasonably shorter length than normally required. Whilst being used to trade costing during my lifetime found cost to be commensurate with retail-supply & demand.
peterrr - 4 / 5 - 28/03/2013
cable
All fine, and useful to have "reserve and collect".
Smudge - 3 / 5 - 17/07/2012
Cable OK, insulation not easy-strip
While the quality of the cable seems fine, the supposed easy-strip insulation is not that easy. It was very time consuming to strip back a relatively short length, despite having pre-scored it. Trying to ease back another 30mm of installed cable to ease space in the pattress was nowhere near as straightforward as with cables such as BICC. However, if time isn't of the essence, the value for money is OK. I wouldn't want to be on site using it.
