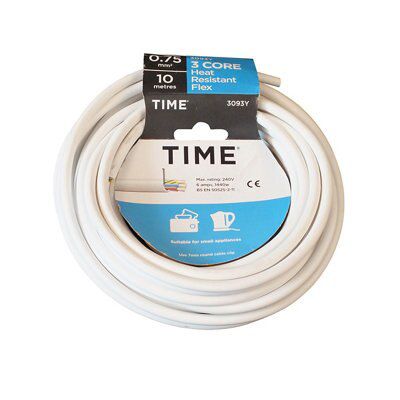

Time White Heat resistant 3-core Flexible Cable 0.75mm² x 10m
Product details
Product information

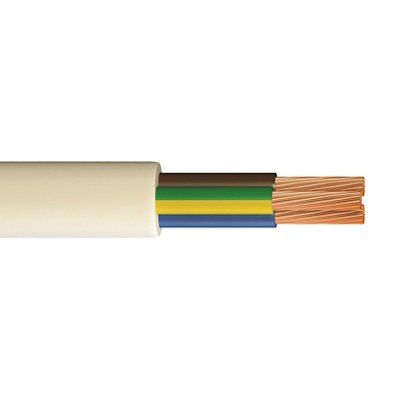

This is a 10m 3 core flexible PVC cable rated at 6A 240V. It has a copper conductor with a cross-sectional area of 0.75mm². The cable is CE and UKCA certified and fire rated, suitable for high temperature applications up to 90°C. The cable has 3 cores plus an additional core for the circuit protective conductor. It is unshielded and comes in a coil, with a PVC outer sheath in white. The cable can be cut to length as needed. This high quality, robust yet flexible cable provides a reliable power connection and is guaranteed for 1 year.
- Cable type - Flexible
- CE marked
Features and benefits
- 240V
- For internal wiring, or supply cords to electrical appliances.
- 6A
- 3 core cable
Specifications
| Amp rating | 6A |
|---|---|
| Brand | Time |
| Cable code | 3093Y |
| Cable length | 10m |
| Colour | White |
| Conductor area | 0.75mm² |
| Maximum operating temperature | 90°C |
| Minimum operating temperature | -15°C |
| Number of cores | 3 |
| Number of pieces | 1 |
| Number of wire strands | 24 |
| Outer sheath material | PVC |
| Pack quantity | 1 |
| Sheath properties | Standard |
| Shield material | Unshielded |
| CPC conductor area | 0.75mm² |
| Circuit protective conductor (CPC) | With CPC |
| Number of CPC cores | 1 |
| Product code | 5018486438069 |
Safety Information
Manufacturer / EU responsible person
Reviews
4.5 / 5(4 reviews)mr m - 5 / 5 - 06/01/2025
ideal
a good length for making extension leads and far better than measuring your own length off a reel
OccassionDIY - 4 / 5 - 27/11/2023
It does its job
Bought this to install few ceiling lights. It does its job as expected.
Denizen of Zarg - 5 / 5 - 13/09/2017
Too long!
This is, according to its own label, the cable able to handle immersion heaters. Many connections in airing cupboards &c. require less than 1 metre. What do we do with the other 4+ metres? (NB: 1 metre length not available, as far as I know)./
- 4 / 5 - 21/01/2017
Check the labelling carefully
I didn't intend to buy HR cable, just flexible. Unlike the more costly butyl, this is not particularly flexible. In summary, if it is maximum flexibility you need, then stick to butyl but if flexibility is not important, this HR cable will perform excellently.
