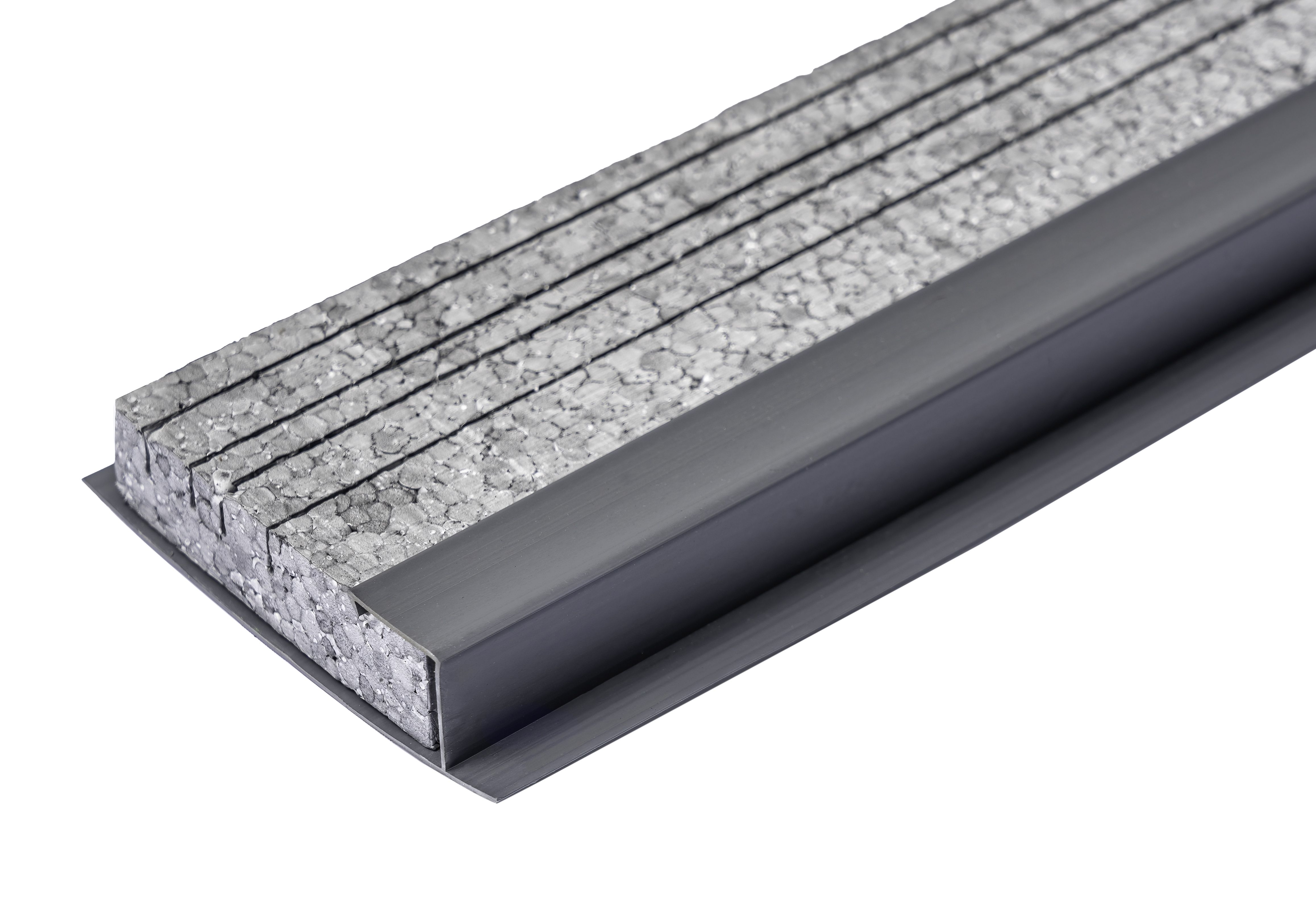

Timloc Grey Thermal insulation board (L)2.4m (W)0.1m (T)25mm
Product details
Product information
Product information
The Timloc Grey Thermal Insulation Board is designed for superior thermal performance, providing an effective DPC and thermal barrier between the frame, inner, and outer wall leaf. Its durable, decay-resistant material ensures long-lasting reliability, while the rigid profile extrusion allows for a secure second fix. Easy to trim on-site for various cavity widths, this insulation board offers a simple yet highly effective solution for reducing heat loss.
- Guarantee - Statutory
- Zero ozone depletion potential
Features and benefits
- Durable and resistant to decay
- Simple on-site trimming for various cavity widths
- Rigid profile extrusion allows second fix
- Effective DPC and thermal barrier between frame, inner and outer wall leaf
- Global warming potential of less than 5
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001
Specifications
| Colour | Grey |
|---|---|
| Coverage | 0.24m² |
| Euroclass fire performance rating | Not fire-rated |
| Length (m) | 2.4m |
| Standard | EN 13163 |
| Thickness (mm) | 25mm |
| Width (cm) | 10cm |
| Product code | 5060382234535 |
Safety Information
Wear appropriate PPE including cut-resistant gloves, eye protection and dust mask when cutting or trimming cavity closers
Use safe manual handling techniques when lifting and transporting 2.4m lengths to avoid strain or injury.
Cut products using sharp, suitable tools in a well-ventilated area to minimise dust and airborne particles
Keep work areas clear of offcuts and dispose of waste materials in accordance with local site and environmental regulations.
Inspect products before installation and do not use damaged or distorted cavity closers.
Ensure minimum 30mm overlap between window/door frame and cavity closer in accordance with BRE guidance.
Fix cavity closers securely using recommended fixings to prevent movement during installation and service life
Cavity insulation must butt tightly against the closer to maintain continuous thermal performance and prevent cold bridging.
Verify cavity dimensions before installation and select the correct profile for cavity widths up to 150mm.
Install in accordance with NHBC standards, Approved Documents C, L1 & L2, and relevant British Standards.
