British General profile Double 2 way 200W Screwless Dimmer switch Gloss Copper
Electrical recycling service
Thinking about buying a new electrical product from us? Find out about our electrical recycling service here
Product details
Product information

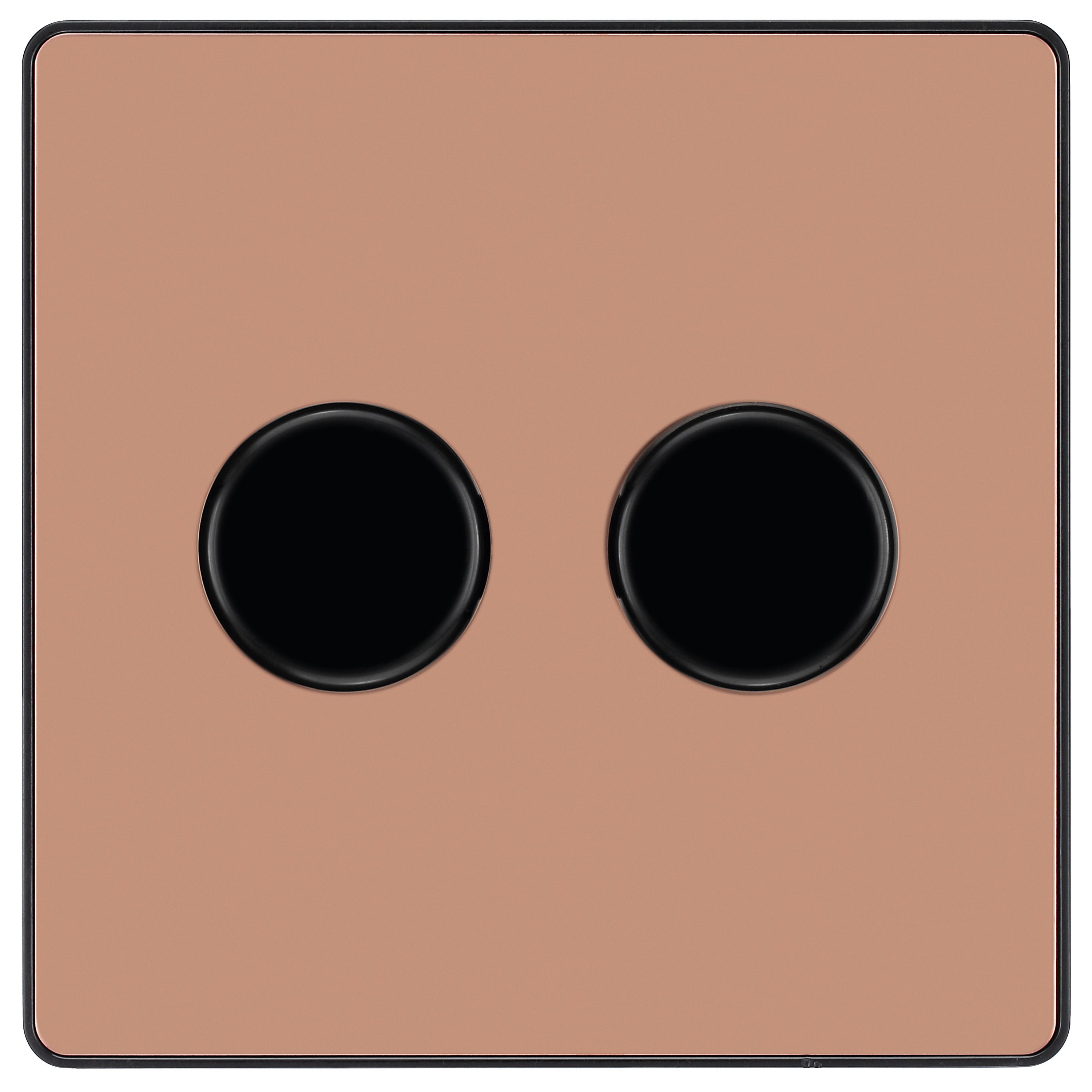

This Evolve Polished Copper trailing edge double dimmer switch from British General allows you to control your light levels and set the mood. The intelligent electronic circuit monitors the connected load and provides a soft-start with protection against thermal, current and voltage overload, and is suitable for dimming LED, dimmable CFL's and traditional lighting. This switch has a low profile screwless front plate that clips on and off, making it ideal for modern interiors.
- Guarantee - 25 years
- Push on/off with rotary dimming
- Compatible with Dimmable LED, tungsten/incandescent, halogen and dimmable CFL lighting
- Terminals accept up to 2.5mm² cable
Features & benefits
- 200W Double Dimmer Switch: The screwless front plate clips on and off, leaving the base in place, ideal for redecorating. Slim low profile with premium contemporary finish.
- suitable for LED, CFL or traditional lighting circuits, with overload protection to prevent failure if wired incorrectly.
- Intelligent Trailing Edge Dimmer: With soft-start for fast, smooth operation, silent operation with no buzzing and longer bulb life.
- 2-Way Switching: Allows a second switch to be added to the circuit to operate the same light from another location. Suitable for domestic or commercial use.
- 25 Year Warranty: Giving you peace of mind with this British General product.
Documents
Declaration of Conformity
Specifications
| Brand | British General |
|---|---|
| Model name/number | PCDCP82B |
| Pack quantity | 1 |
| Number of ways | 2 |
| Power voltage supply | Mains fed |
| Screwed/screwless | Screwless |
| Number of earth terminals | 0 |
| Number of gangs | 2 |
| Width (mm) | 86mm |
| Height (mm) | 86mm |
| Maximum dimmable load (incandescent) | 200W |
| Maximum dimmable load (halogen) | 200W |
| Maximum dimmable load (fluorescent) | 100W |
| Maximum dimmable load (LED) | 100W |
| Minimum dimmable load (fluorescent) | 5W |
| Minimum dimmable load (halogen) | 20W |
| Minimum dimmable load (incandescent) | 5W |
| Minimum dimmable load (LED) | 5W |
| Waveform | Trailing edge |
| Amp rating | 0.8A |
| Volt-amperes | 200VA |
| Insert colour | Black |
| Voltage suitability | Mains voltage |
| Product code | 5050765226202 |
Safety Information
All included on product or packaging
Manufacturer / EU responsible person
EU responsible person
(EU) Luceco SE
Address
Parcela 12 - Nave 1 A - Pol. Ind. Can Balmes
Sta. Maria de Palautordera
Barcelona
08460
Spain
