Evolution 1200W 240V 185mm Corded Circular saw R185CCSL240
Electrical recycling service
Thinking about buying a new electrical product from us? Find out about our electrical recycling service here
Product details
Product information
Product information

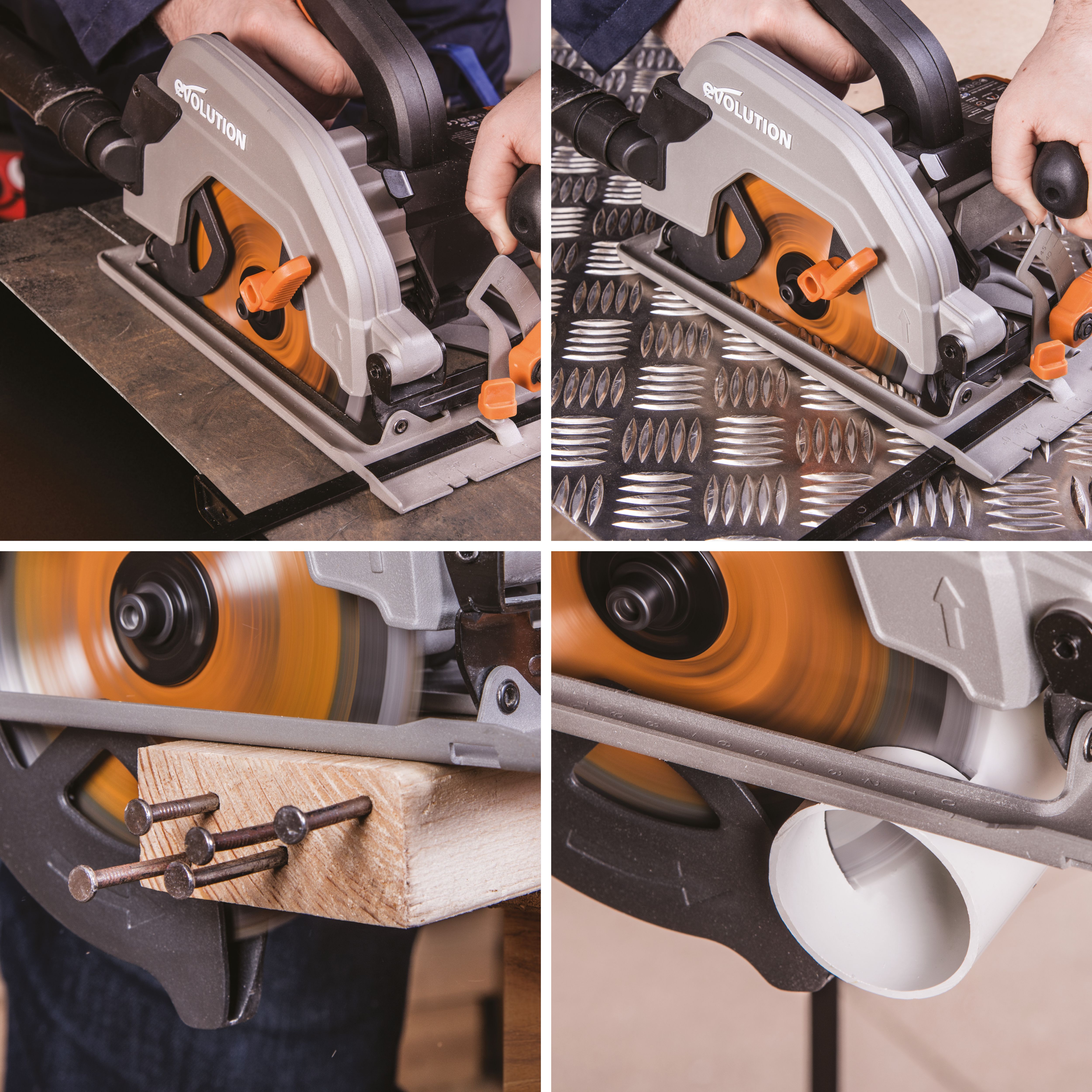

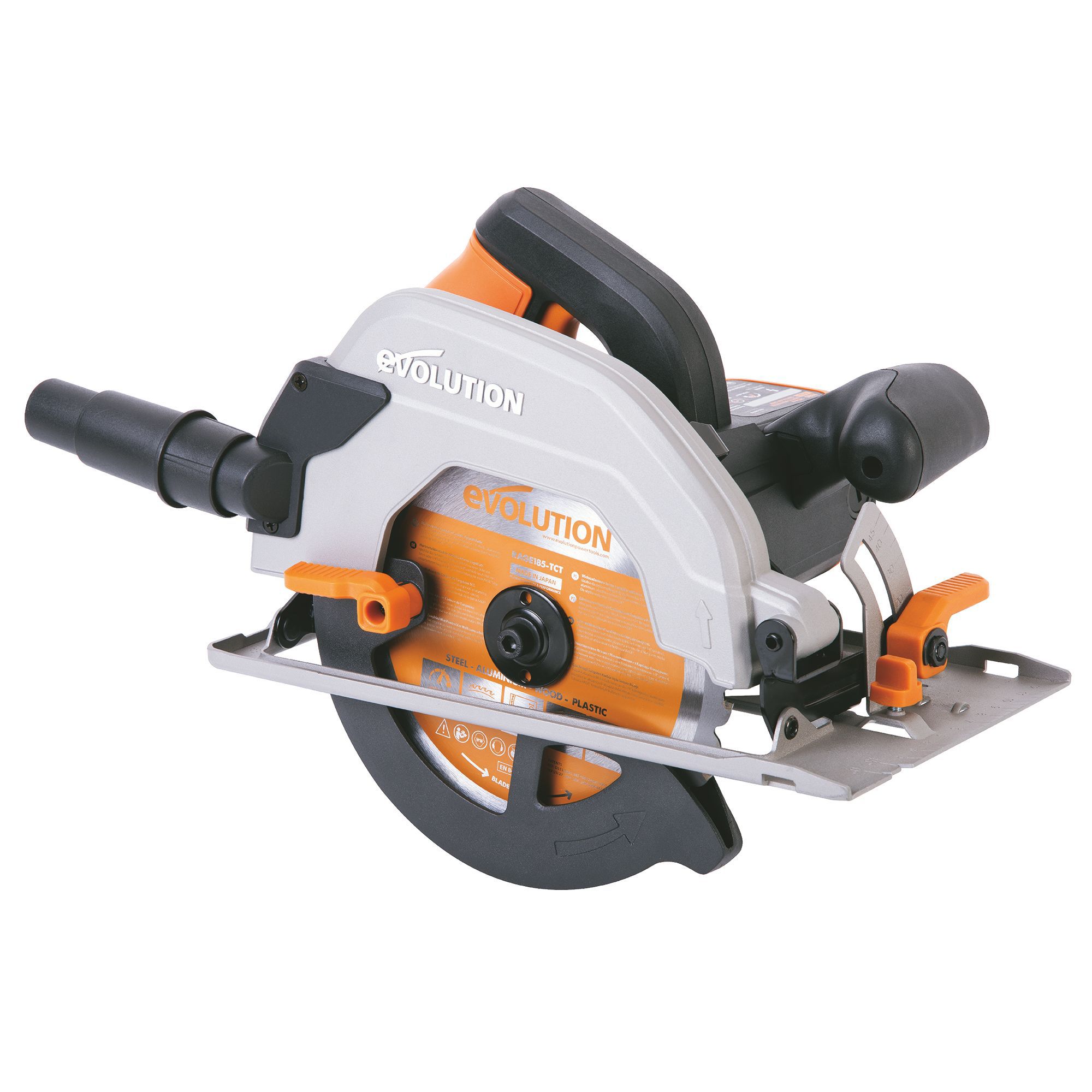

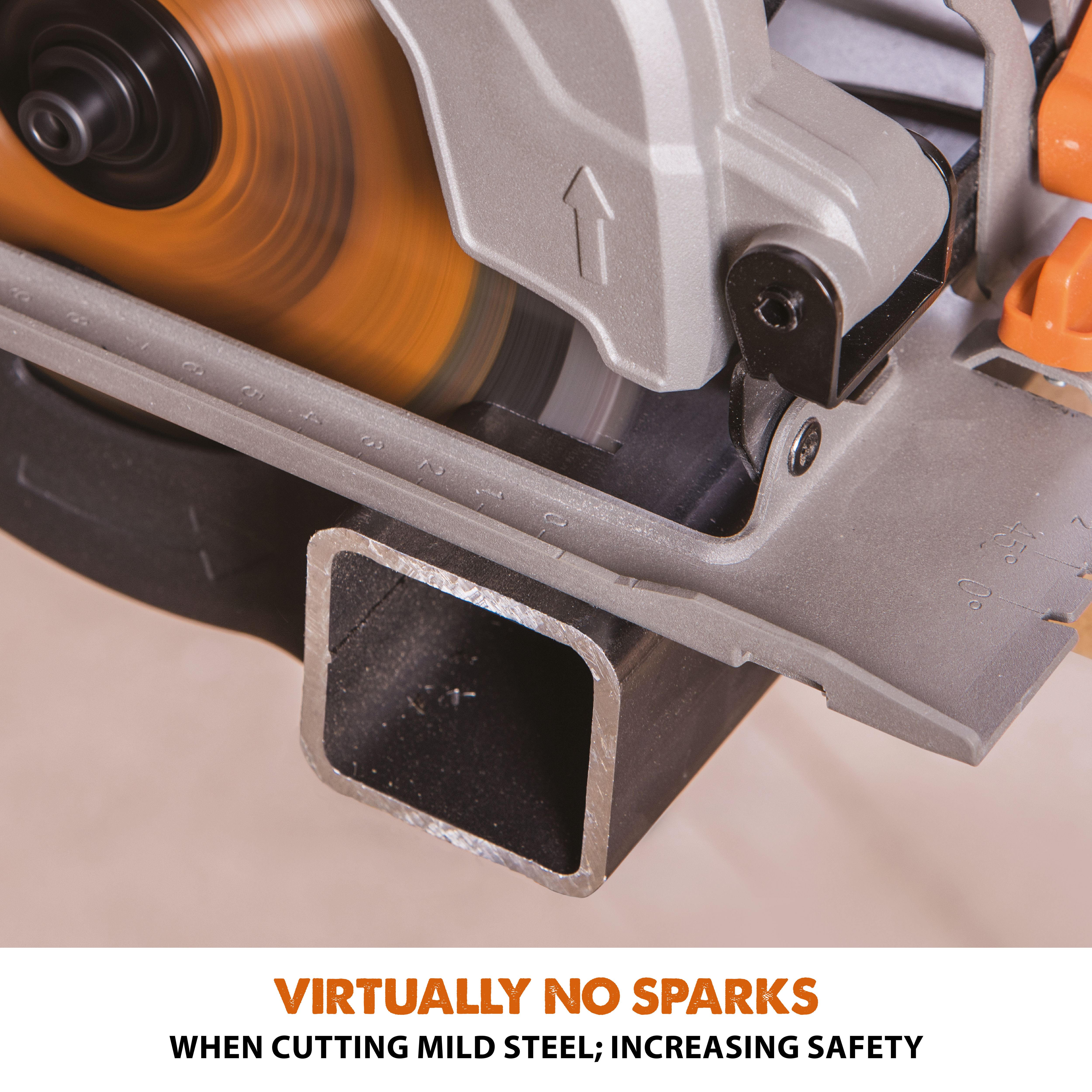

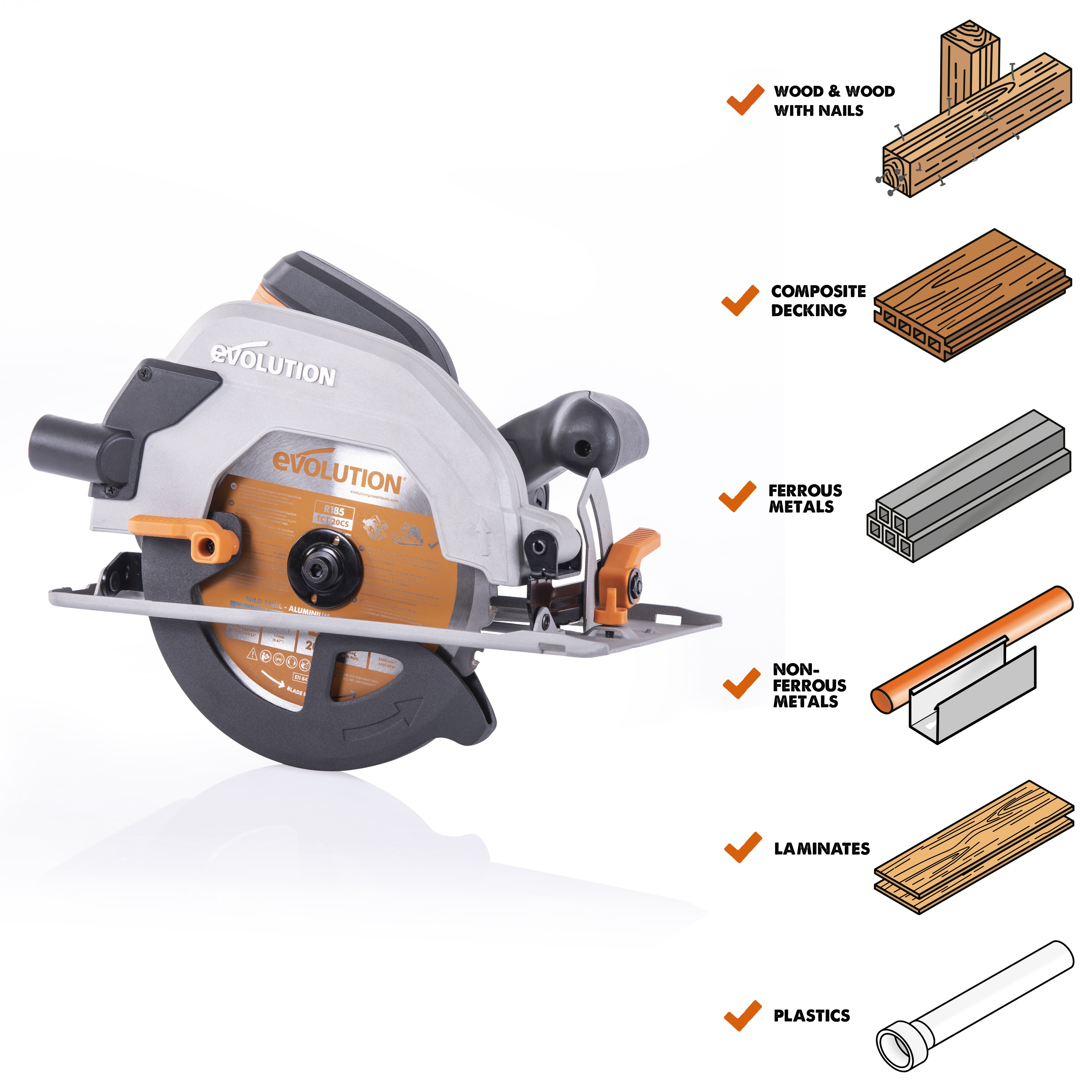

The Evolution R185CCSL is a high powered 185mm TCT Multi-Material cutting Circular Saw optimised using patented Multi-Material Technology to cut mild steel, non-ferrous metals, wood, even wood with embedded nails and plastic with a single blade.
- Guarantee - 3 years

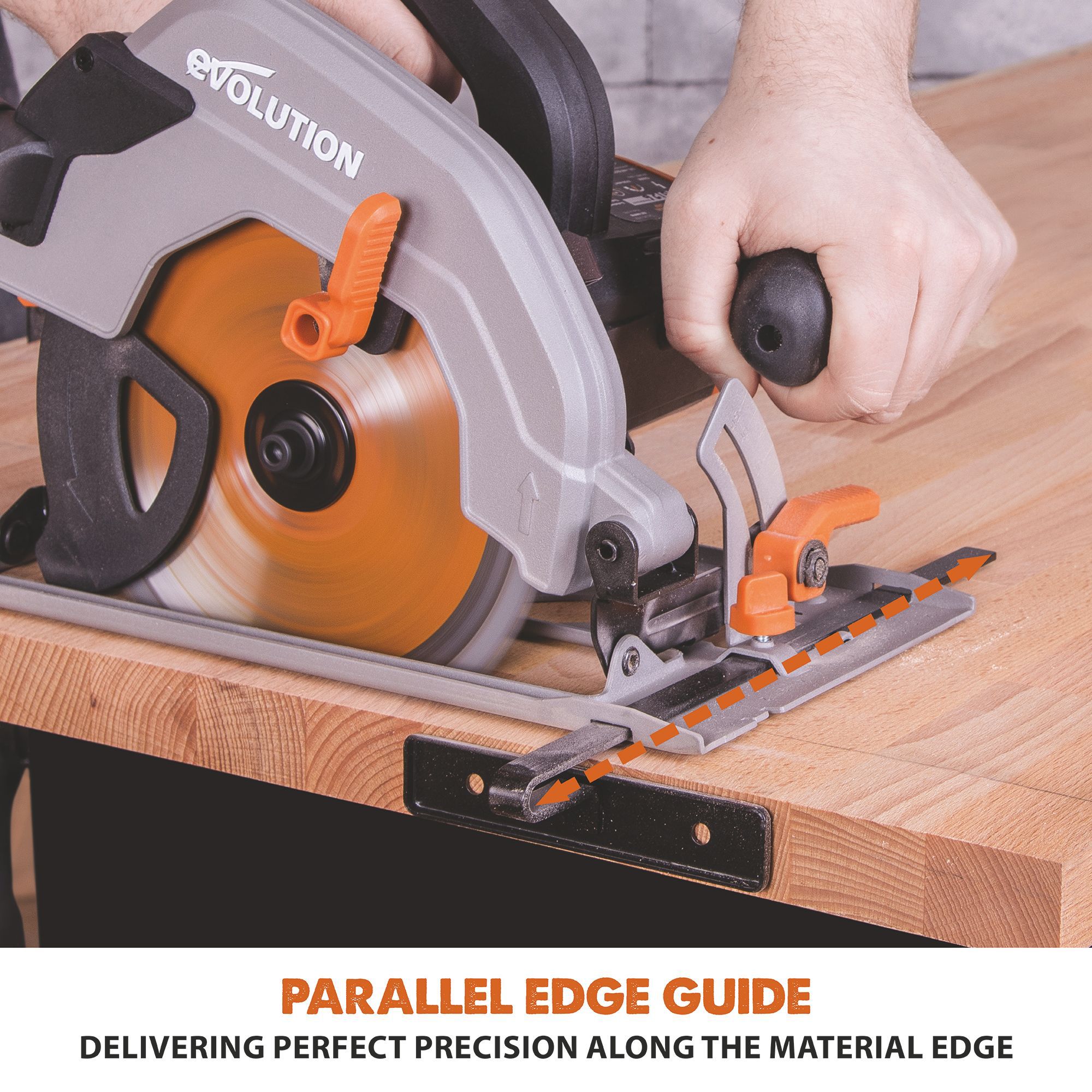

- Comes with 185mm multi-material TCT blade, dust port adaptor, dust hose adaptor and parallel edge guide.
- Comes with 185mm multi-material TCT blade, dust port adaptor, dust hose adaptor and parallel edge guide.
- Features: Trigger switch, Soft grip and3m cable
Features and benefits

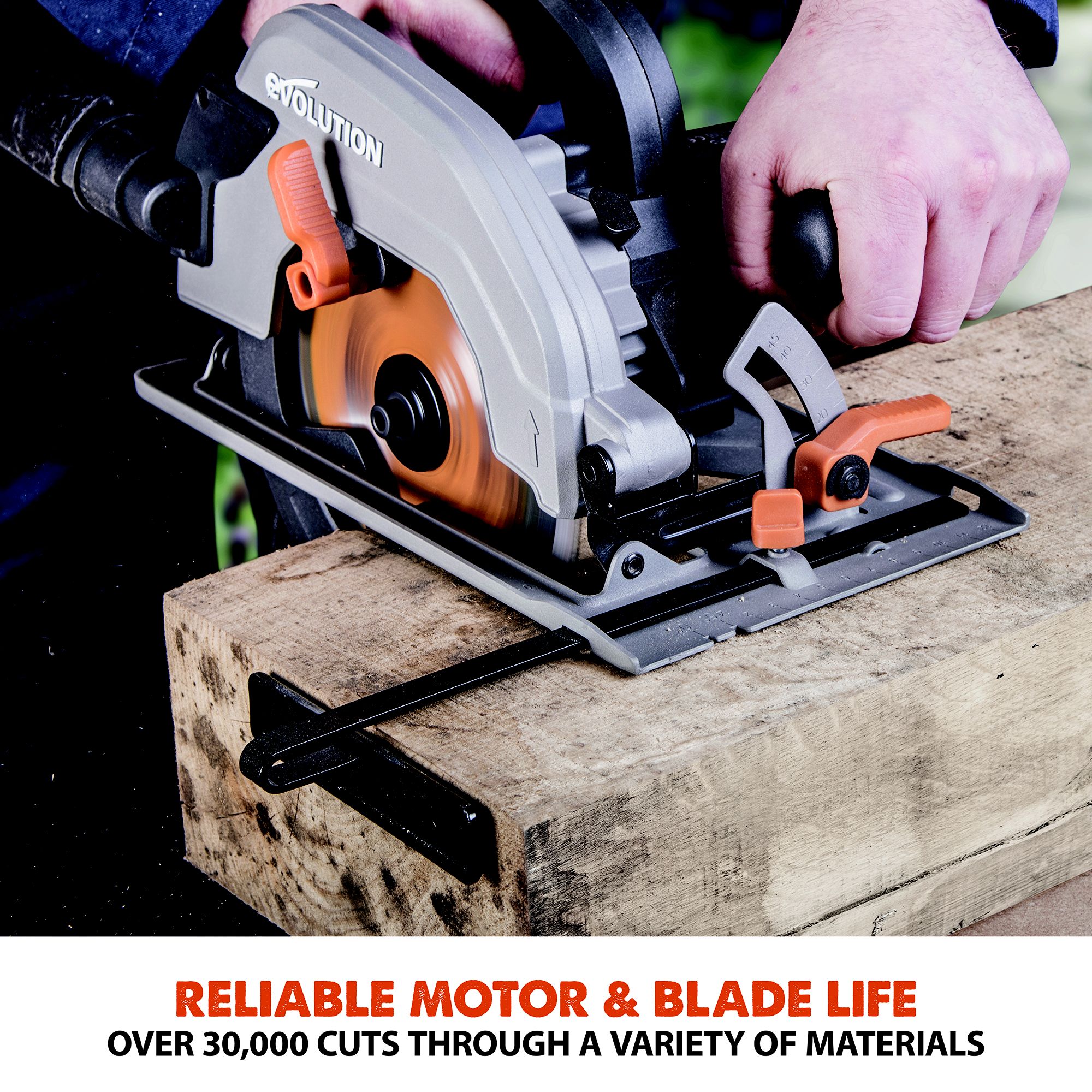

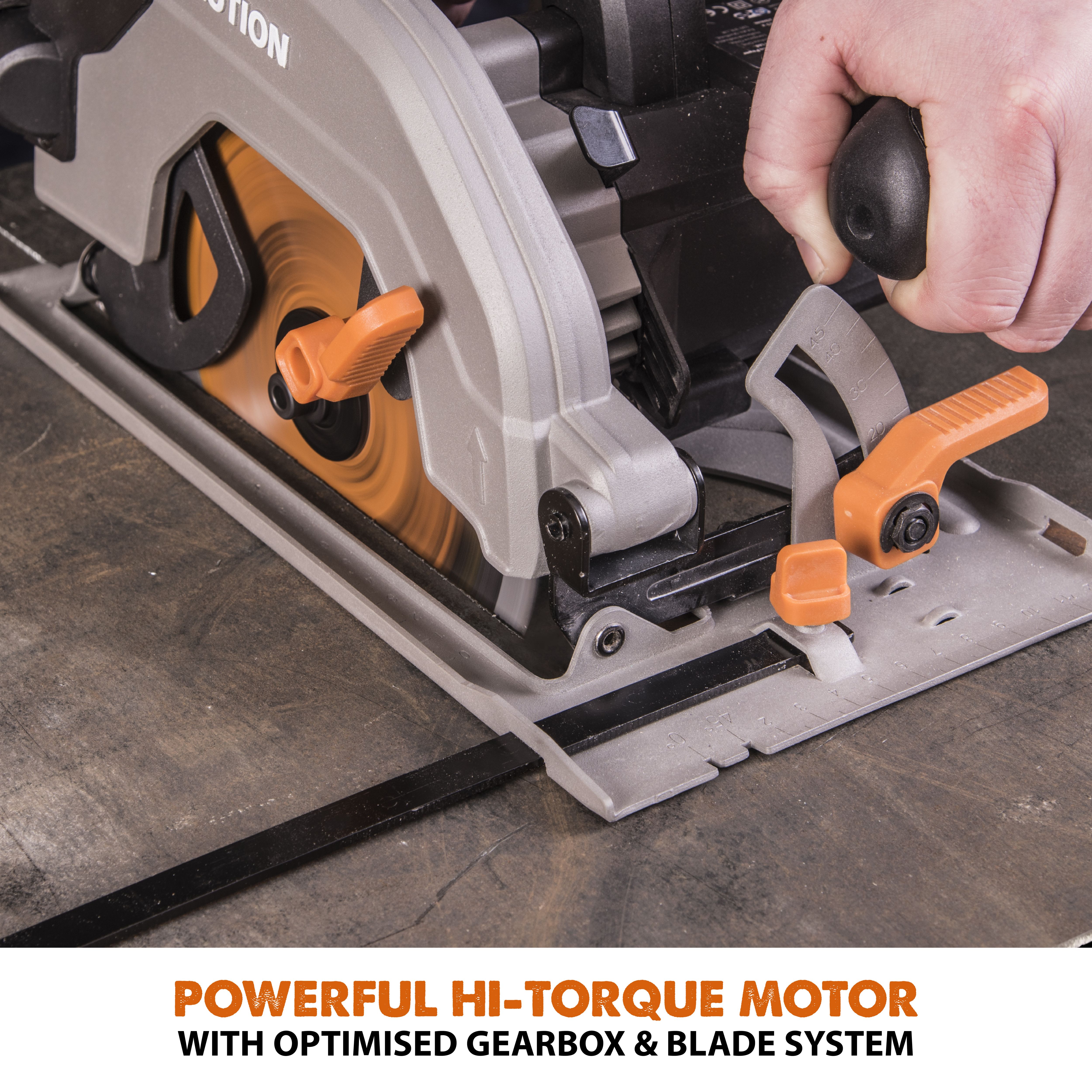

- Powerful 1200W hi-torque optimised gearbox and blade system, increases motor & blade life to cut through a variety of heavy duty materials. Electric brake stops the blade in seconds for additional safety

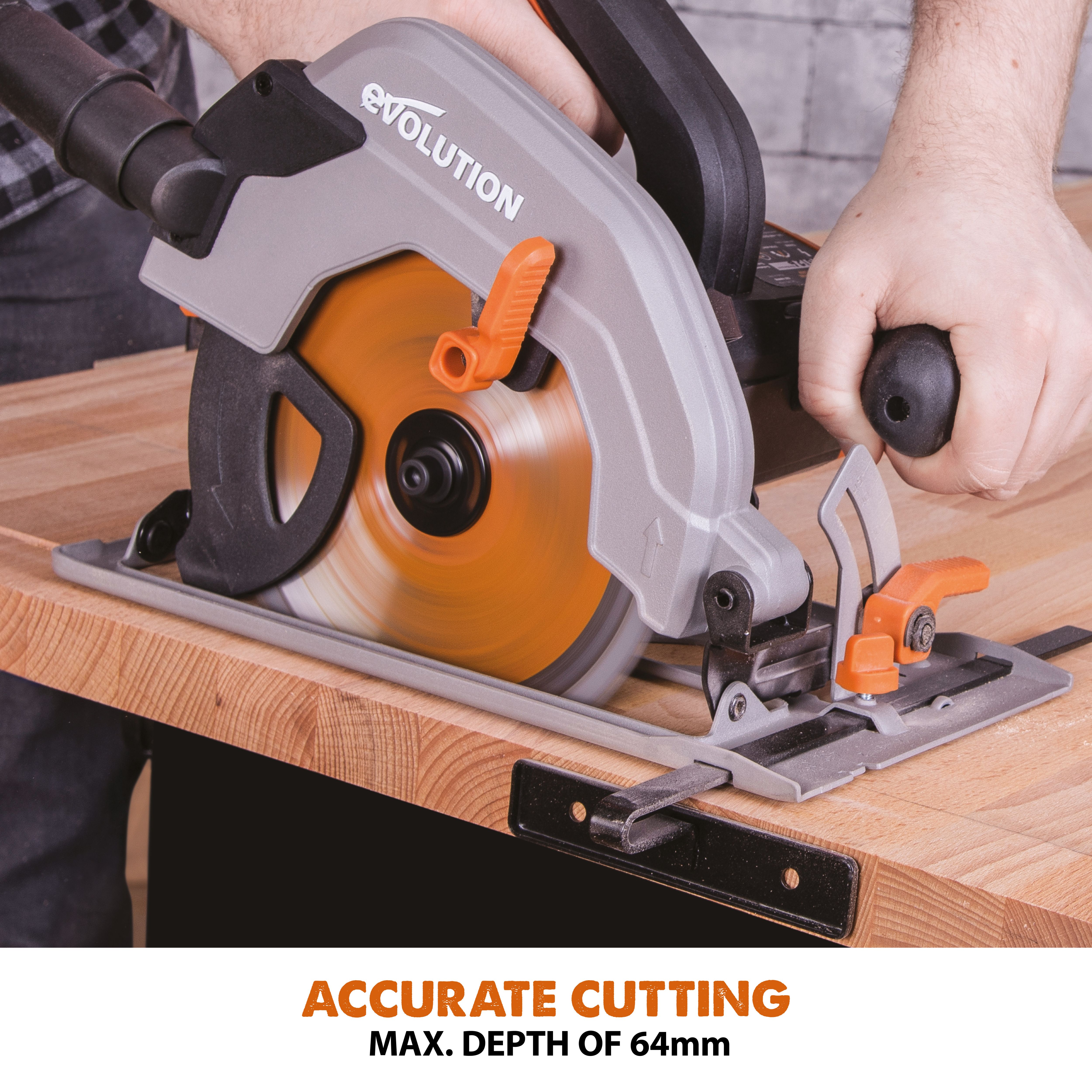

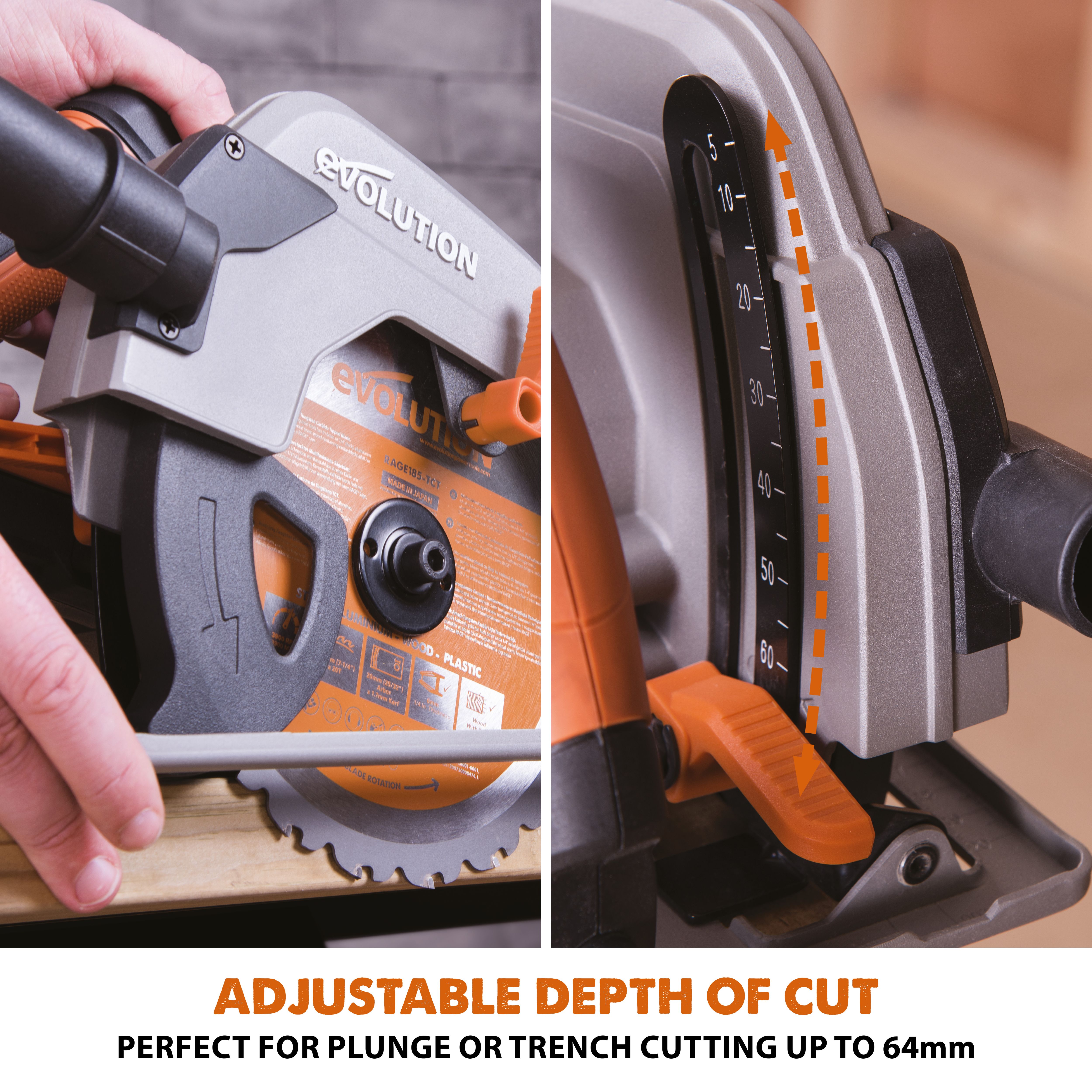

- 0˚ - 45˚ bevel and 0 - 64mm adjustable cutting depth with ergonomic, soft grip handles provide maximum control, versatility and precision
- Channelled air flow & base indicators ensure optimum visibility of your cutting line
- Ergonomic 'T' handle provides ultimate cutting comfort & control. Dust Port adaptor included for vacuum extraction when cutting wood
- Electric blade brake stops the blade in seconds for additional safety. Backed by Evolution's 3 year limited warranty

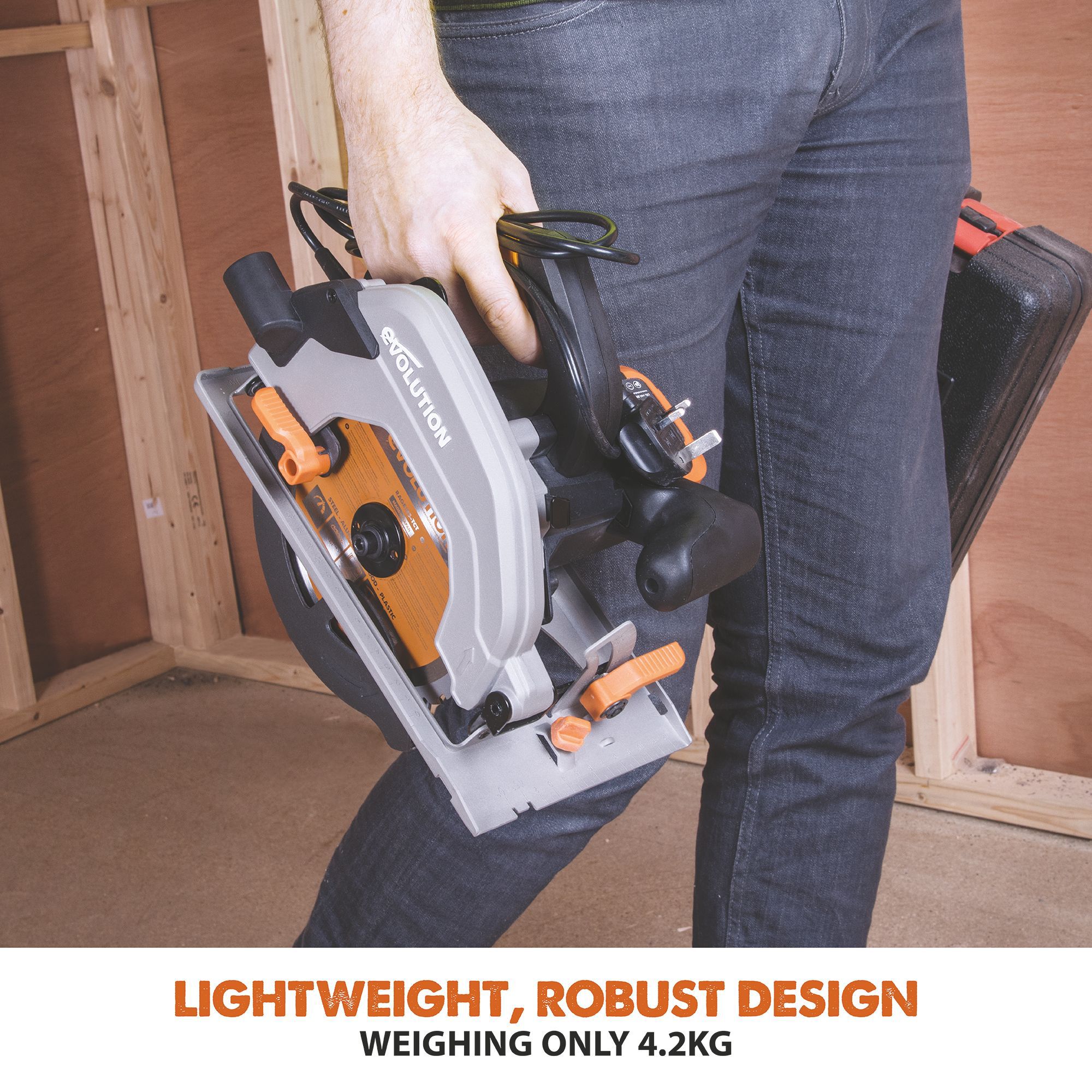

- With a tool weight of under 5kg, this 185mm Circular Saw is balanced, lightweight and compact, all while delivering a maximum cutting depth of 64mm

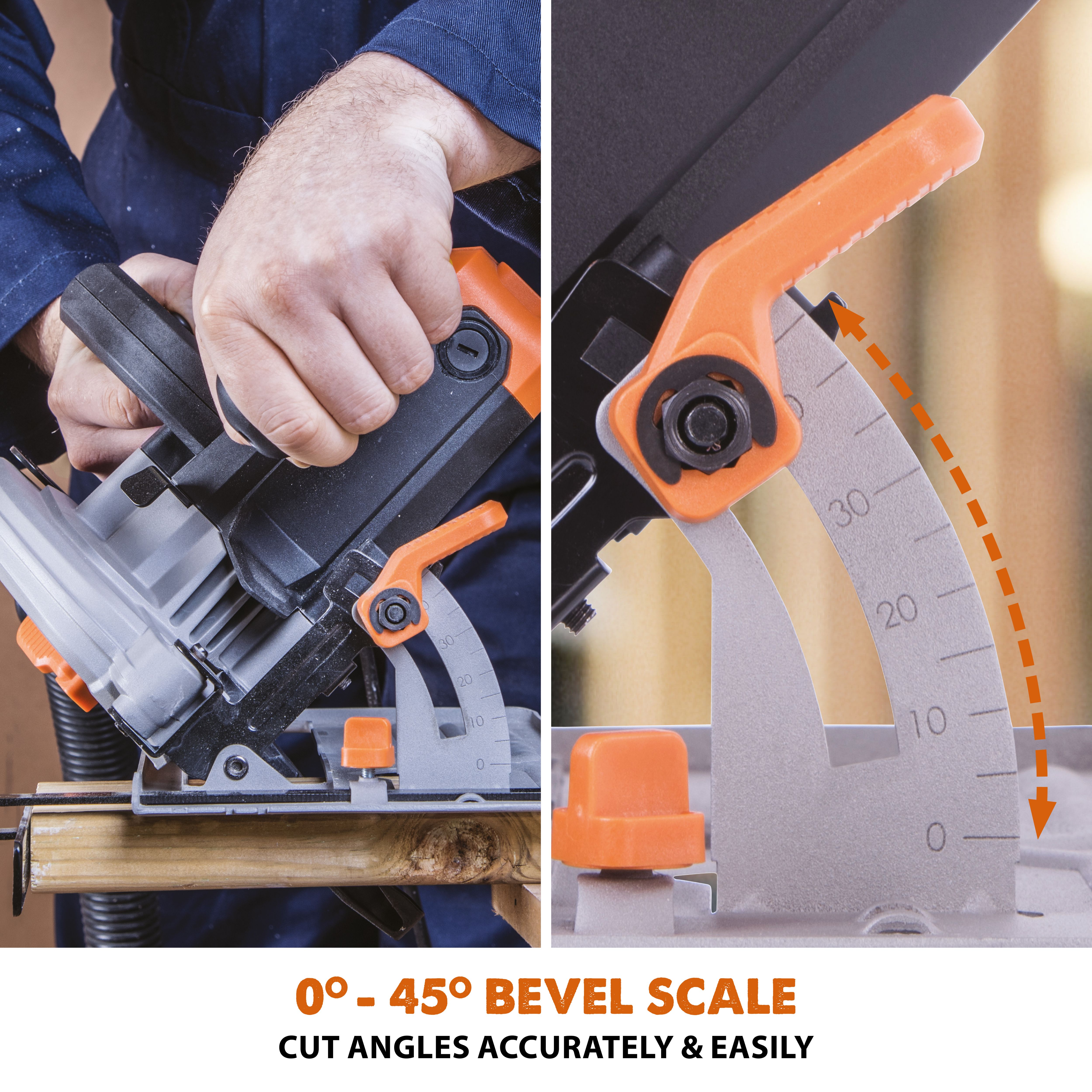

- Integrated debris blower allows optimum visibility along the cutting line, while quick-adjust bevel lever and clear, debossed angle markings improves the ease and accuracy of bevel cuts
- Safety features include a lock-off switch and electronic blade brake, as well as a spindle lock for easy blade changes
- Over-moulded handle improves ergonomics and comfort, while also housing on-board tool storage for blade change hex key
Specifications
| Brake type | Electronic |
|---|---|
| Brand | Evolution |
| Cable length (m) | 3m |
| Compatible blade diameter | 185mm |
| Disc bore size (mm) | 20mm |
| Dust extraction type | Dust extraction facility |
| Grip type | Soft grip |
| Height (mm) | 185mm |
| Length (mm) | 395mm |
| Maximum bevel left | 45° |
| Maximum bevel right | 45° |
| Maximum cutting capacity (45° bevel) | 64mm |
| Maximum cutting capacity (90° bevel) | 64mm |
| Model name/number | R185CCSL240 |
| Motor type | Replaceable carbon brushed |
| No load speed | 3700rpm |
| Number of teeth | 16 |
| Pack quantity | 1 |
| Power voltage supply | 240V |
| Riving knife | Without riving knife |
| Soft start | Hard start |
| Spindle lock | Spindle lock |
| Switch type | Trigger switch |
| Product code | 0849713074065 |
Safety Information
Warning: Wear hearing protection!
WARNING: When using this machine the operator can be exposed to high levels of vibration transmitted to the hand and arm. It is possible that the operator could develop“Vibration white finger disease” (Raynaud syndrome). This condition can reduce the sensitivity of the hand to temperature as well as producing general numbness. Prolonged or regular users of this machine should monitor the condition of their hands and fingers closely. If any of the symptoms become evident, seek immediate medical advice. WARNING: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. The need to identify safety measures and to protect the operator are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle, such as the times the tool is switched off, when it is running idle, in addition to trigger time). WARNING: Do not operate this machine if warning and/or instruction labels are missing or damaged. Contact Evolution Power Tools for replacement labels.
WARNING: This product is a Hand Operated Circular Saw and has been designed to be used with special Evolution blades. Only use accessories designed for use in this machine and/or those recommended specifically by Evolution Power Tools Ltd. WARNING: This product is a Hand Operated Circular Saw and must only be used as such. It must not be modified in any way, or used to power any other equipment or drive any other accessories other than those mentioned in this Instruction Manual. WARNING: This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the safe use of the machine by a person responsible for their safety and who is competent in its safe use. WARNING: For your protection if this tool is to be used outdoors it should not be exposed to rain, or used in damp locations. Do not place the tool on damp surfaces. Use a clean, dry workbench if available. For added protection use a residual current device (R.C.D.) that will interrupt the supply if the leakage current to earth exceeds 30mA for 30ms. Always check the operation of the residual current device (R.C.D.) before using the machine. WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury.
WARNING: When using this machine, dust particles may be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful. If you suspect that paint on the surface of material you wish to cut contains lead, seek professional advice. Lead based paints should only be removed by a professional and you should not attempt to remove it yourself. WARNING: the operation of any power tool can result in foreign objects being thrown towards your eyes, which could result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shield or a full face shield where necessary.
WARNING: If any parts are missing, do not operate your machine until the missing parts are replaced. Failure to follow this rule could result in serious personal injury.
Manufacturer / EU responsible person
EU responsible person
Evolution Power Tools SAS
Address
61 Avenue Lafontaine 33560
Carbon Blanc
Bordeaux
France
33560
France
