Sorry, this product is currently out of stock.
Vent-Axia Svara Lo-Carbon 496711 Bathroom Smart Extractor fan (Dia)99mm
Electrical recycling service
Thinking about buying a new electrical product from us? Find out about our electrical recycling service here
Product details
Product information
Product information
The Svara marks the next generation of unitary fans. Home owners have complete control of their indoor air through an intuitive App designed to give them flexible options on how to run the fan. Giving home owners this control has the added benefit of removing the need for multiple returns to the property post installation should the fan not be set up quite to the householders’ liking.
- Only fixings included
- Suitable for: Recessed
- Ducting not included
Features and benefits

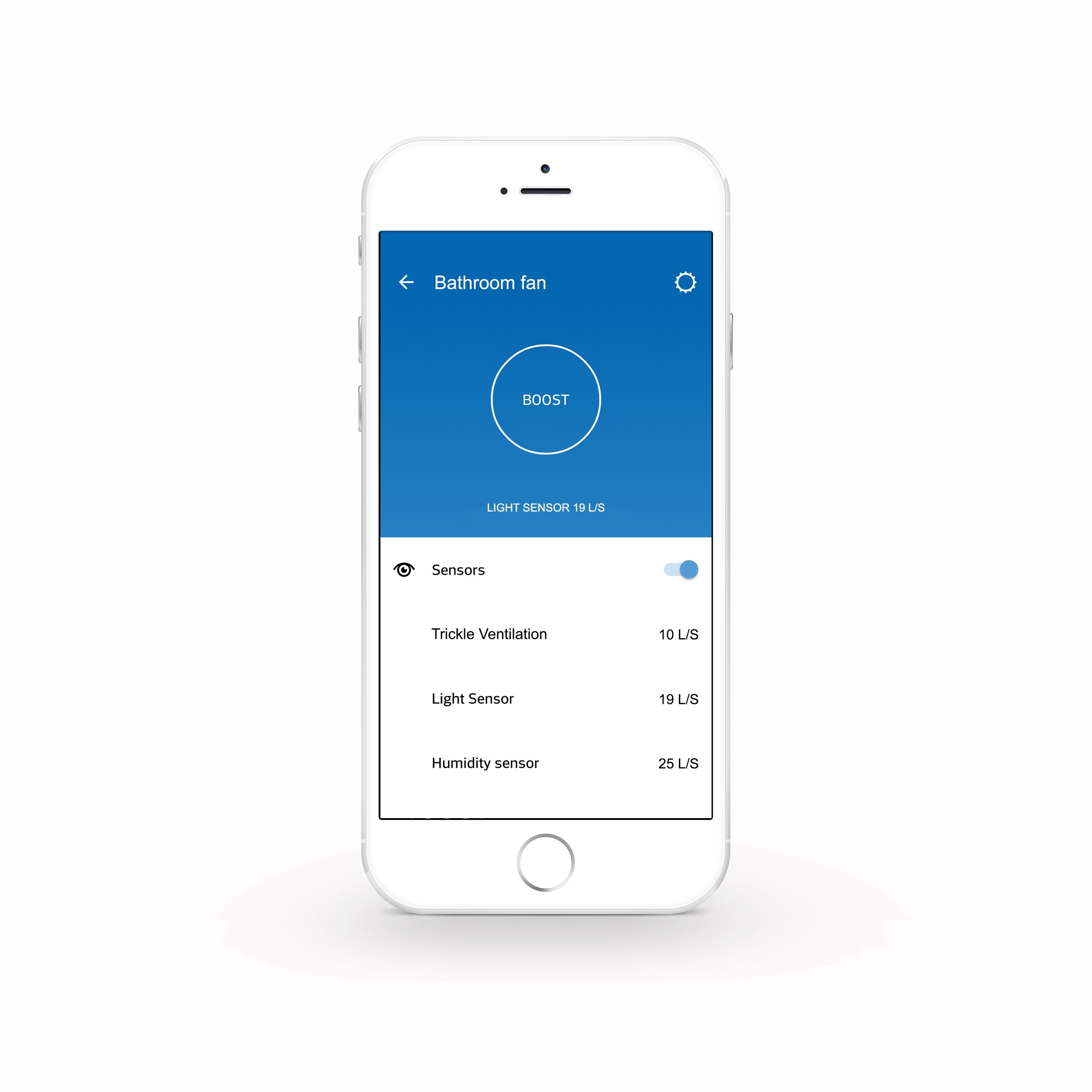

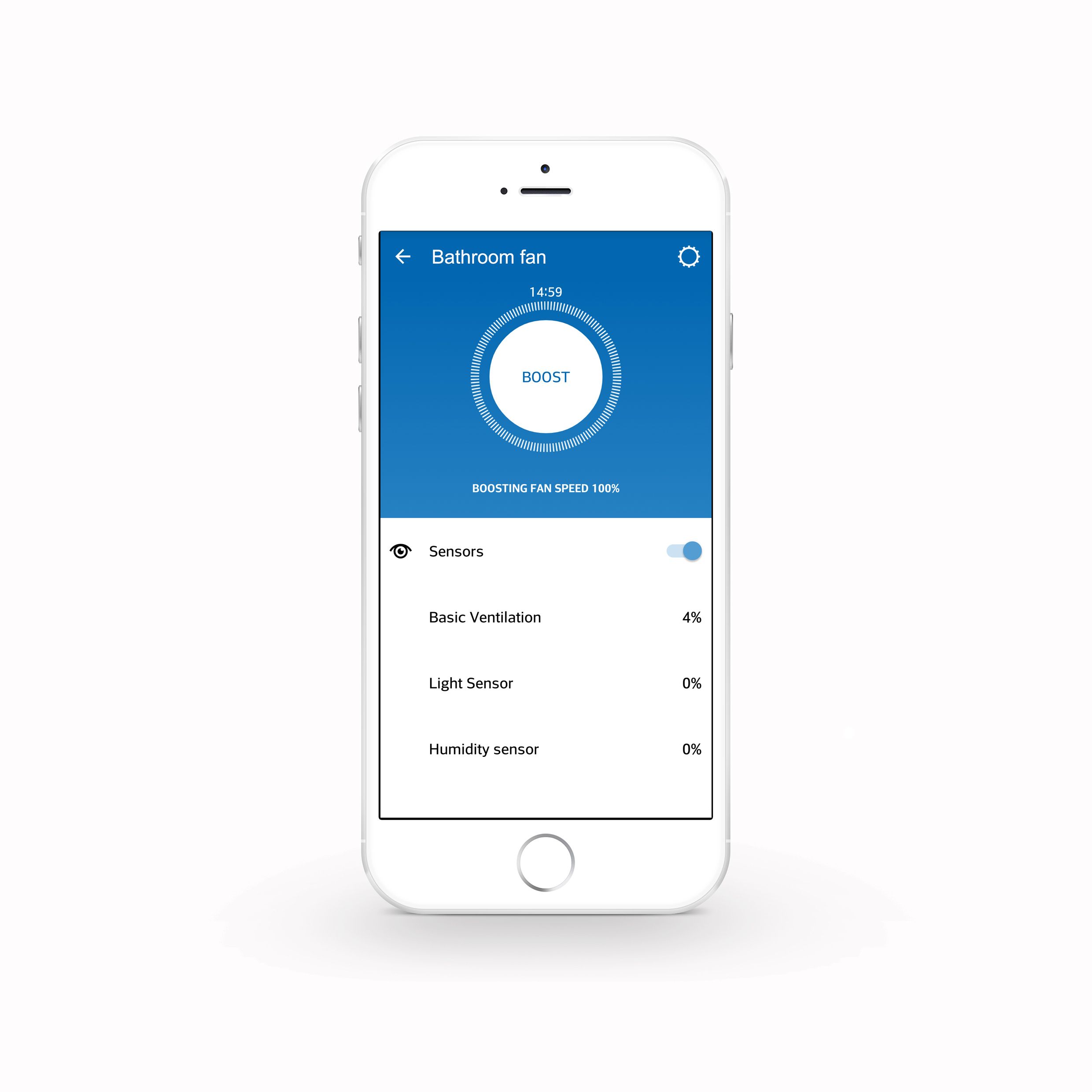

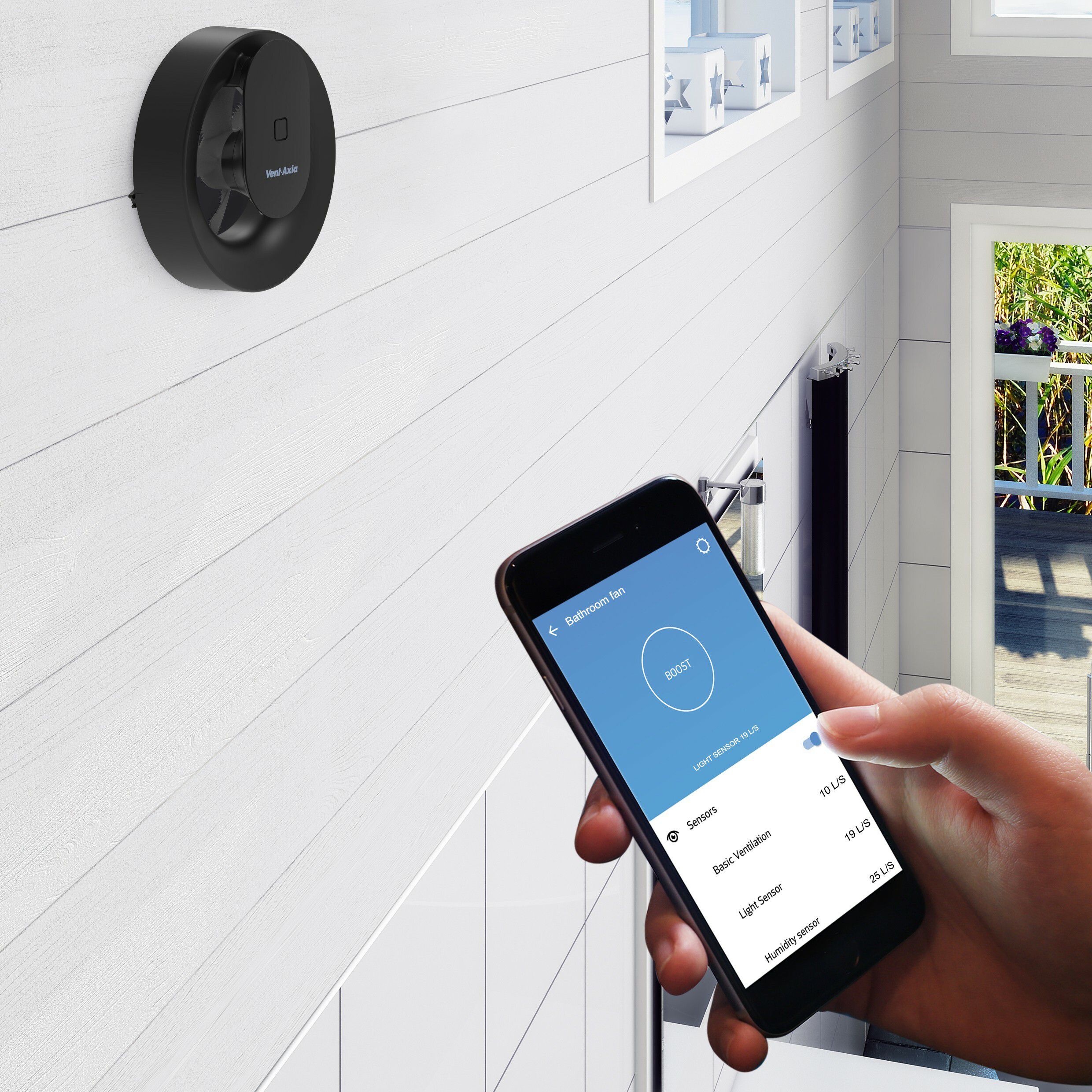

- Set up and control through the App via Bluetooth
- Continuous or intermittent

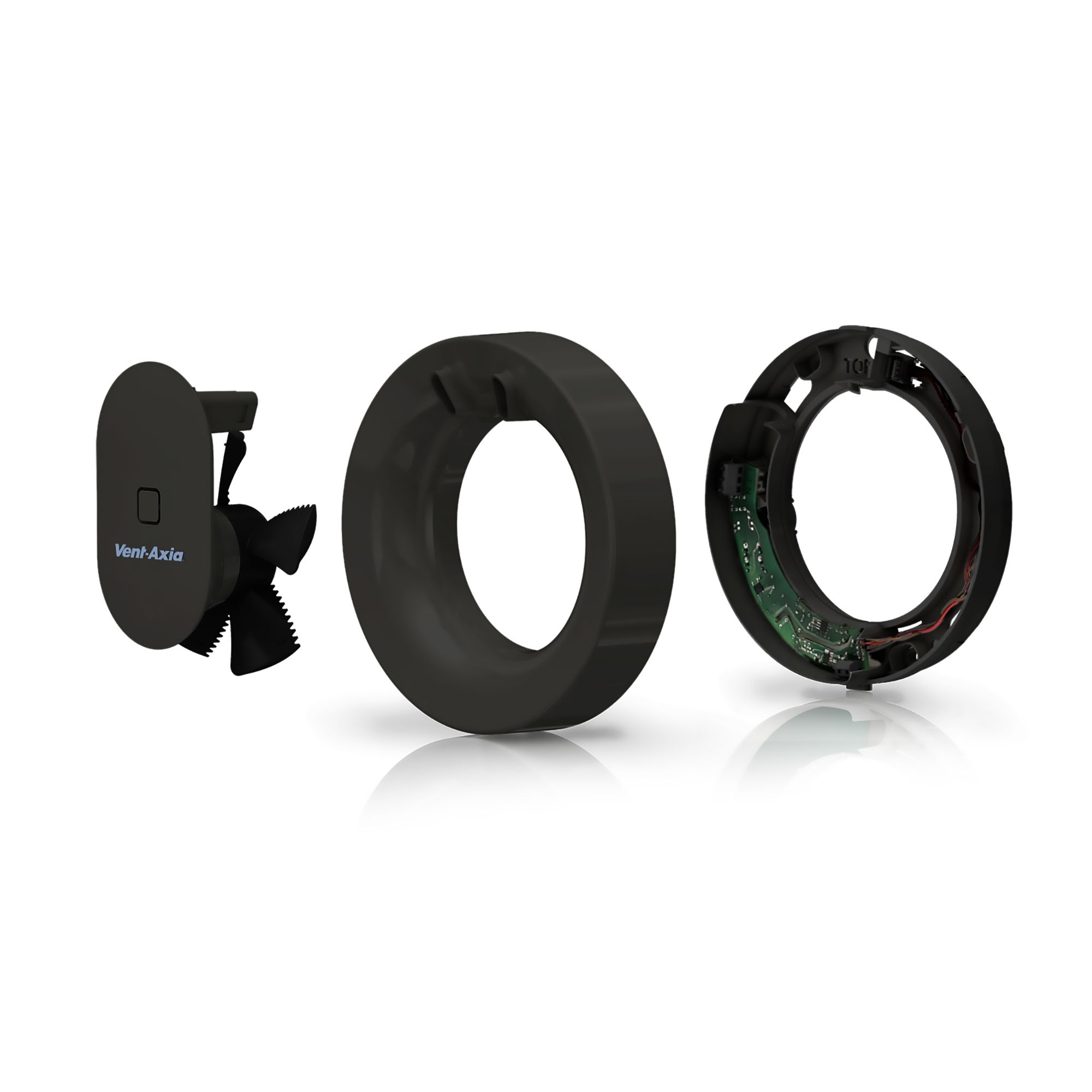

- Removable impeller for easier cleaning and replacement
- Silent hours scheduling and purge mode functions
- Intelligent light sensor with overrun timer - allows replacement of a basic model fan
- 3 speed DC motor
- Suitable for ceiling, panel or wall mounting
- Low noise level
- Low running costs
Specifications
| Brand | Vent-Axia |
|---|---|
| Colour | Black |
| Control type | App controlled |
| Extraction rate | 108m³/h |
| Height (mm) | 177mm |
| IP rating | IP44 |
| Material | ABS plastic |
| Model name/number | 496711 |
| Noise level at 3m | 17dB(A) |
| Pack quantity | 1 |
| Power consumption in use | 0.23kWh |
| Power voltage supply | 4V |
| Spigot diameter | 99mm |
| Timer type | Time adjustment |
| Weight (kg) | 0.5kg |
| Width (mm) | 177mm |
| Product code | 5015135991524 |
Documents
Installation Guide
Safety Information
All wiring to be in accordance with the current I.E.E. Regulations, or the appropriate standards of your country and MUST be installed by a suitably qualified person.
The Fan should be provided with a local isolator switch capable of disconnecting all poles, having a contact separation of at least 3mm.
Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label.
The Fan should only be used in conjunction with the appropriate Vent-Axia products.
The fan should only be used in conjunction with fixed wiring.
When the Fan is used to remove air from a room containing a fuel-burning appliance, ensure that the air replacement is adequate for both the fan and the fuel-burning appliance.
The Fan should not be used where it is liable to be subject to direct water spray for prolonged periods of time.
Where ducted Fans are used to handle moisture-laden air, a condensation trap should be fitted. Horizontal ducts should be arranged to slope slightly downwards away from the Fan.
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
