Yale Keyless Polished Chrome effect Smart Digital door lock
Electrical recycling service
Thinking about buying a new electrical product from us? Find out about our electrical recycling service here
Product details
Product information
Product information

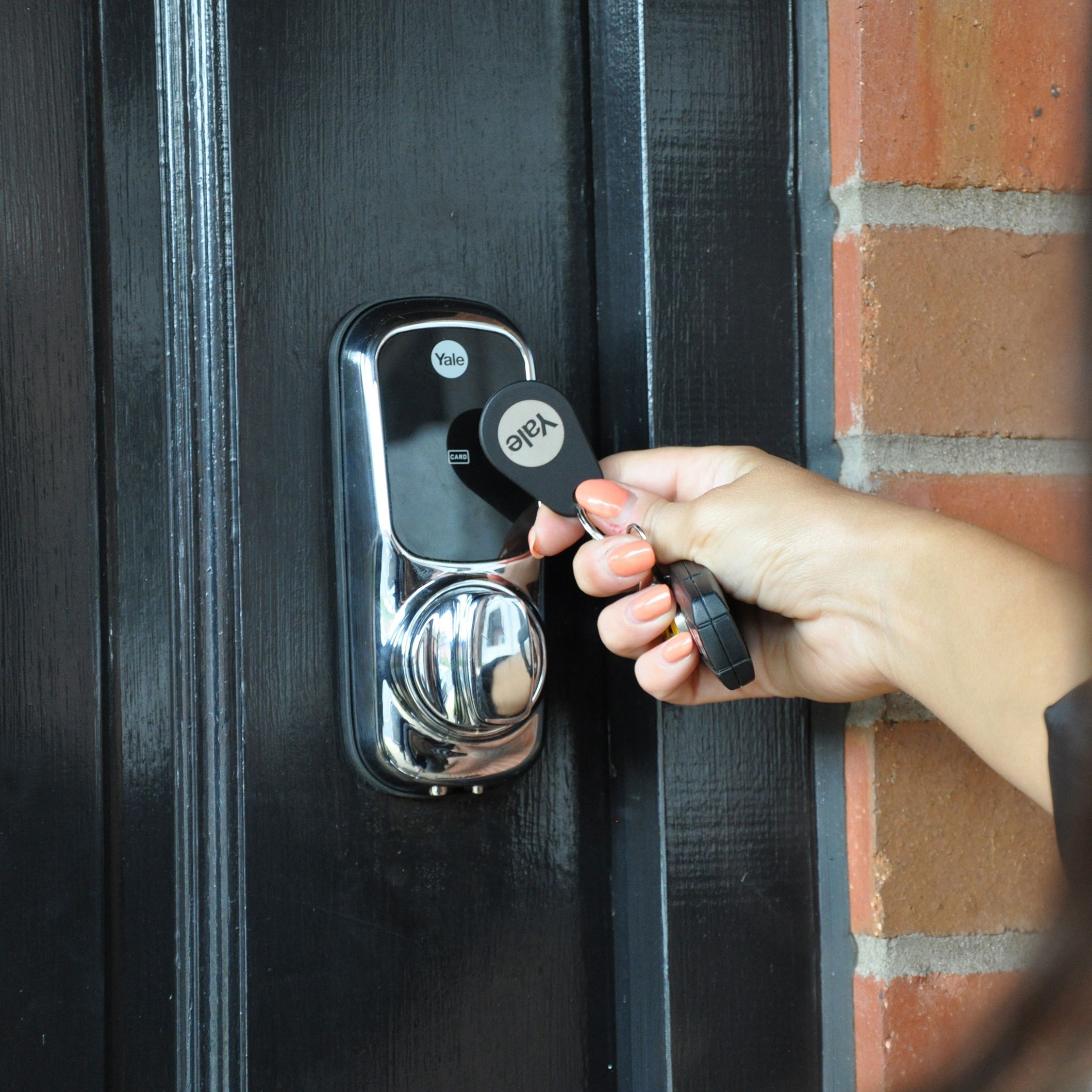

This polished smart lock is suitable for use with internal & external timber doors. Smart locks are an ideal solution for locations where multiple people require access.
- Guarantee - 2 years
- Comes with 1x key card, 1x key tag & 4 x AA batteries
- Suitable for Timber doors
- Suitable for Timber doors
Features and benefits
- Your door can be opened by a 4 to 10 digit pin on the touch panel, by key card or key tag
- Upgrade your Keyless smart lock unit with either a Yale or a Z-Wave module (sold separately) that allows you to connect you your home security system via your smart phone
- Alternatively you can buy a Remote Fob & Module pack (sold separately) that gives you remote control access to your door. Please note you can only use one of the available upgrades at any time. You cannot attach the remote key fob module as well as the Yale/Z-wave modules as there is only one available port in the lock
- The smart lock is powered by 4 x AA batteries (included). It will even warn you when the batteries are running low, and runs on low power consumption - unlocking up to 10,000 times on one set of batteries
- This smart lock has a tamper alarm and incorrect PIN code feature, where you are locked out for 3 minutes if the code is entered incorrectly 5 times
- Battery box not suitable for external use
- Choose from up to 20 different PIN codes and a variety of accessories (sold separately).
Specifications
| Batteries included | Batteries included |
|---|---|
| Battery name | AA |
| Colour | Grey |
| Fittings & fixings included | Only fixings included |
| Maximum door thickness | 70mm |
| Minimum door thickness | 44mm |
| Model name/number | YD-01-CON-NOMOD-CH |
| Number of batteries required | 4 |
| Depth (cm) | 5.1cm |
| Height (cm) | 15.3cm |
| Width (cm) | 6.4cm |
| Product code | 5011802243224 |
Manufacturer / EU responsible person
EU responsible person
Security & Risk Communications
Address
Parkway Business Centre
Ballymount
Dublin
24
Ireland
Contact
Reviews
3.55 / 5(9 reviews)KPP - 5 / 5 - 27/04/2025
Good product, good price, great service.
I've bought many of these. They are easy to fit and good to use. A nice simple fix to avoid having to Cary around a key. Good Battery life and backup options. I've not had one fail (yet) ... first installation 2016. Can interface with various security systems, good connectivity.
Dan7891011 - 1 / 5 - 10/10/2022
Broke after 3 years.
This lock broke after 3 years, locking me out of my property. The key code element worked but didn't turn the latch . Sent Yale a video of it not working but they just said it was out of its 2year warranty. Very annoying as it was only occasionally used and it had not been damaged. It had been extremely useful so shame for it not to work. Only just fitted another one but now sent back.
DatFlo - 1 / 5 - 23/06/2021
Rubbish product after installation it does not wor
Rubbish product after installation it does not work, just an absolute waste of my time and resources, can't even return the product because only noticed after installation!
Shed Geeza - 3 / 5 - 07/09/2020
Plastic battery holder
The lock itself is very sturdy and fairly easy to install However the plastic battery box that fits on back of door is very flimsy . If the door is slammed the lid and battery's fall out . This happened after just one week and I had to go to a store to pick up a PP3 battery to power up externally . Why not a metal case? Perhaps it might be because wi-fi signals may be blocked if using a module to connect to computer and mobile app . The case should also be more secure as access exposes poses some security issues Also for the price it should really come with the latch
Gairloch - 3 / 5 - 03/02/2018
Great when new, but prone to corrosion and leaks
I have had three of these and they are great when new, but very short-lived if you live anywhere near the sea. The cast zinc body corrodes badly with white powder and pitting all over, even in a relatively sheltered spot. If exposed to wind and rain they let rain get driven inside by wind through the lock, and eventually leakage causes batteries to start dying after only a day or two. Also the thin plated back plate starts to rust and the emergency battery contacts corrode.So expensive to keep in working order because it needs replacing every few years..
VonRyan - 5 / 5 - 07/11/2017
Great keyless lock
I bought this type of lock so I did not need to take a key with me when I went jogging. I also have the associated zwave module for intergation with Samsung Smartthings (smart home system). The integration with smartthings means I can lock/unlock the door remotely if necessary . It was easy to fit and seems robust.
Dunromin - 5 / 5 - 25/09/2017
New generation of door locks, no more lost keys
I have just installed this and I also replaced the night latch with the recommended Y3 model. The reason I think they recommend the Y3 is the matching style, any Yale nightlatch appears to be compatible but there is no point using a deadlock as the keyless lock doesn't support it. This type of locking is the future, I wouldn't go back to keys. It's a pity is won't operate from my phone but no doubt the time will come. The lock is easy to install I used a 16mm spade drill I already had rather than buy a 20mm one - the hole was fine for the wire and the mount. The instructions and the template are excellent, but use the night latch instructions for that part of the installation the cut length quoted in the keyless instructions say 18mm where the Y3 I bought needs a 16mm clearance. In the box you get a fob and a card, I bought 2 additional fobs and the Z-wave interface. You can program 20 numbers, 20 fobs and 20 cards. They are allocated memory slots, I wrote the respective slot number on the fobs and card. If keys are lost you can delete that slot number and immediately disable the missing fob. I have given the builder a permanent code that I will delete when he finishes the job. For security, I wouldn't use your master code for everyday use. I would keep this code safe and secret and have a regular code in slot 1 for daily use. If you have glass in the door this needs to be security glass. Once a hand gets in it will have access to the latch (no deadlock) and to the battery module. I am planning to install a Samsung Smartthings Hub and link to this lock.
Beehappy8 - 5 / 5 - 23/08/2017
Impressive Digital Lock
Great design. Easy to install. Well documented instruction.
pete66266 - 4 / 5 - 05/02/2017
One door
Was easily to fit and setup touch screen is responsive good buy
